Compex Fit - User Manual
V HOW IT WORKS

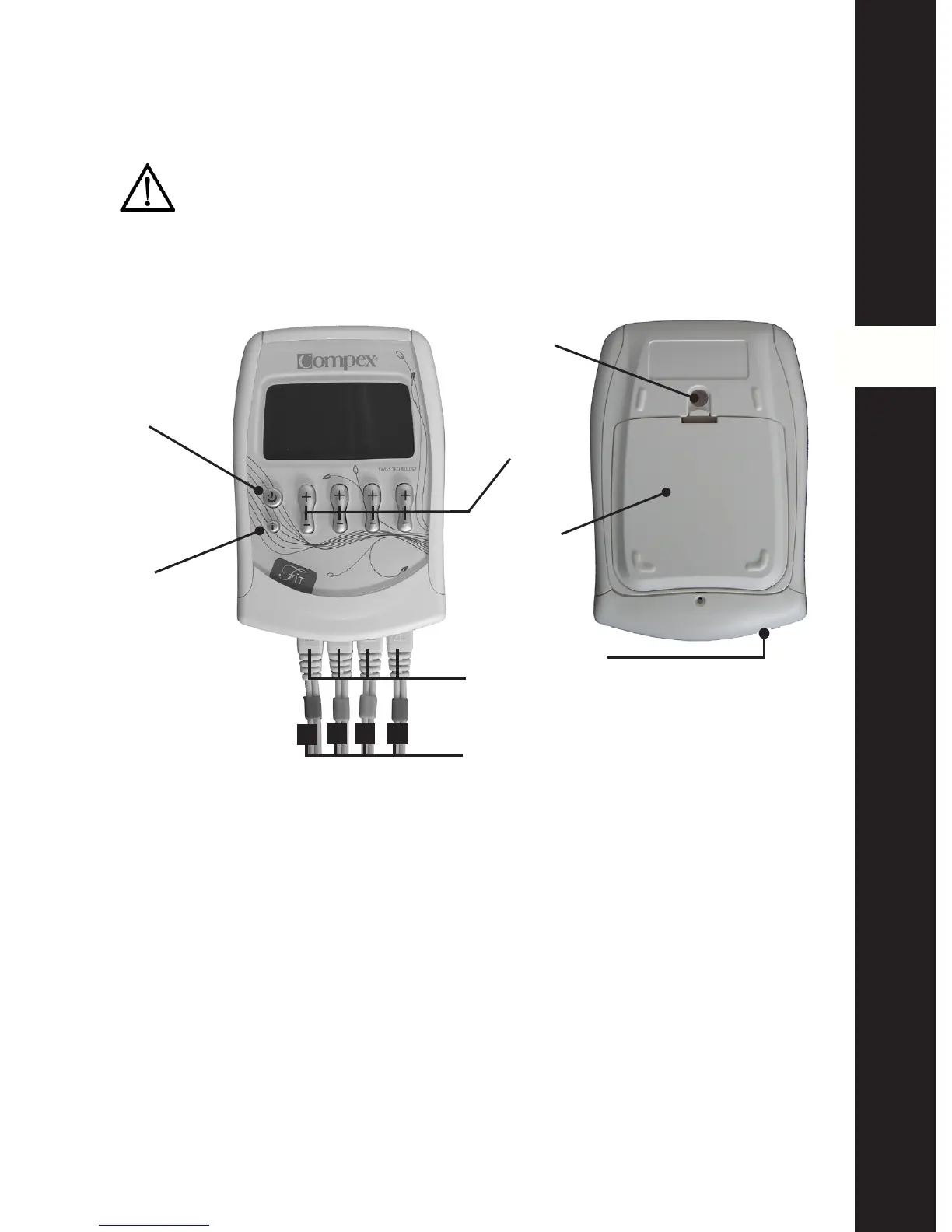

Description of the device
A On/Off button
B "i" button used for:
• Immediate access to information displays (illustrations of electrode
placement or explanations of the programs)
• Increasing stimulation energies in several channels simultaneously
C Sockets for the 4 stimulation cables
D Stimulation cables
Channel 1 = blue Channel 2 = green
Channel 3 = yellow Channel 4 = red
E +/- buttons for the 4 stimulation channels
F Socket for the charger (Slide the red cover to the right to free the charger
connector)
G Battery compartment
H Belt clip socket
A
B
E
C
D
1
2 3 4
H
G
F
You are strongly advised to read carefully the contraindications and safety
measures described at the start of this manual in Chapter 1 prior to using
your stimulator.
