VII. OPERATING INSTRUCTIONS
Connections
The electrical pulses generated by the “Compex® Sport” are
transmitted to the muscles through self-adhesive electrodes.
The positioning of the electrodes is an essential factor in ensuring
safe and effective training: Pay particular attention to electrode
placement instructions (see booklet and CD-ROM showing the
correct positions of the electrodes and the proper body positions).
The
“Compex® Sport” has four electrode cables. Each electrode cable
must be connected to the stimulator, using the sockets on the base
of the device. For easier handling and channel recognition, you are
advised to follow the colors of the cables and sockets (blue, green,
yellow, red).

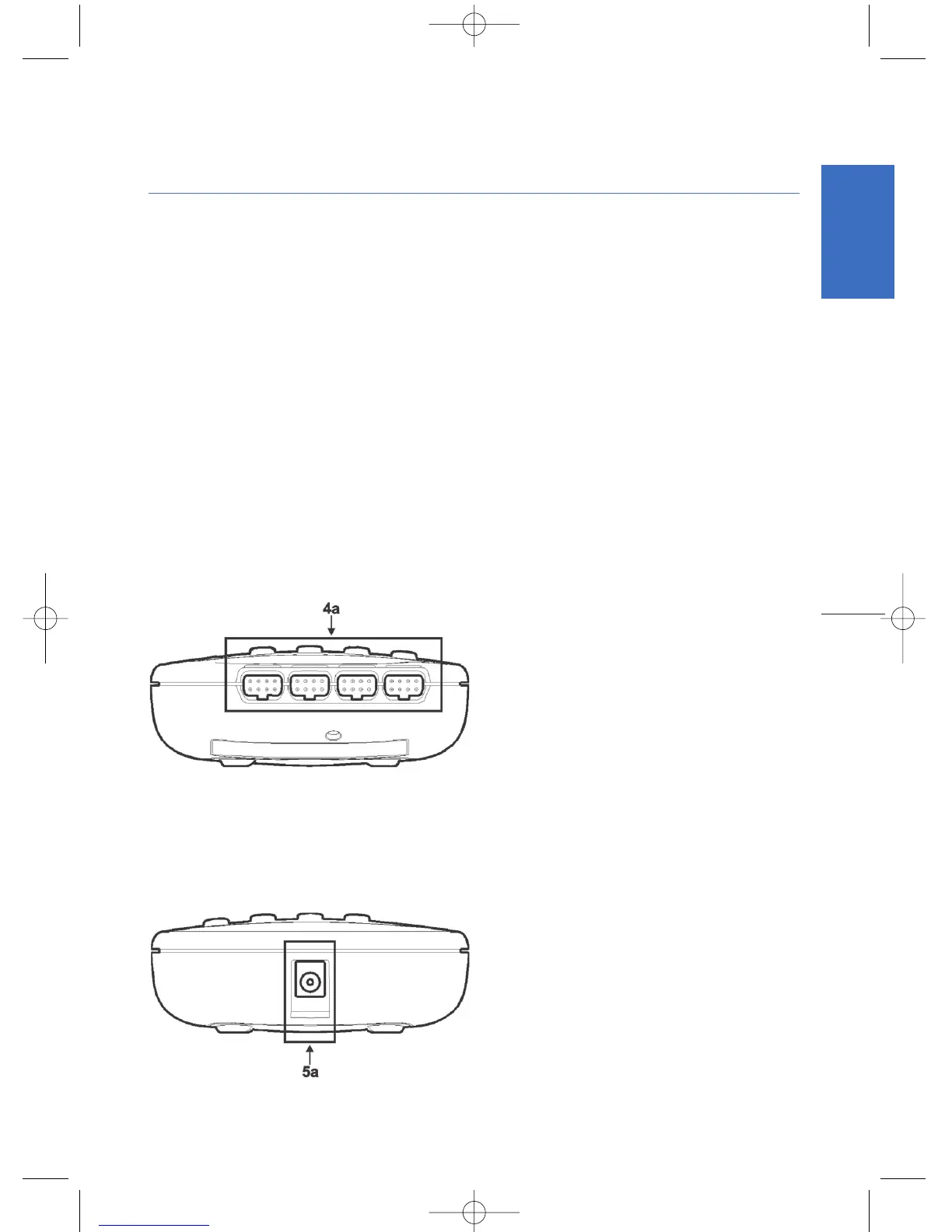

4a
Sockets for the
4 electrode cables:
blue = channel 1
green = channel 2
yellow = channel 3
red = channel 4
Figure 5 (Rear View)
5a
Socket for the battery
charger.
