Re-assembling fitlet2
1
2
!

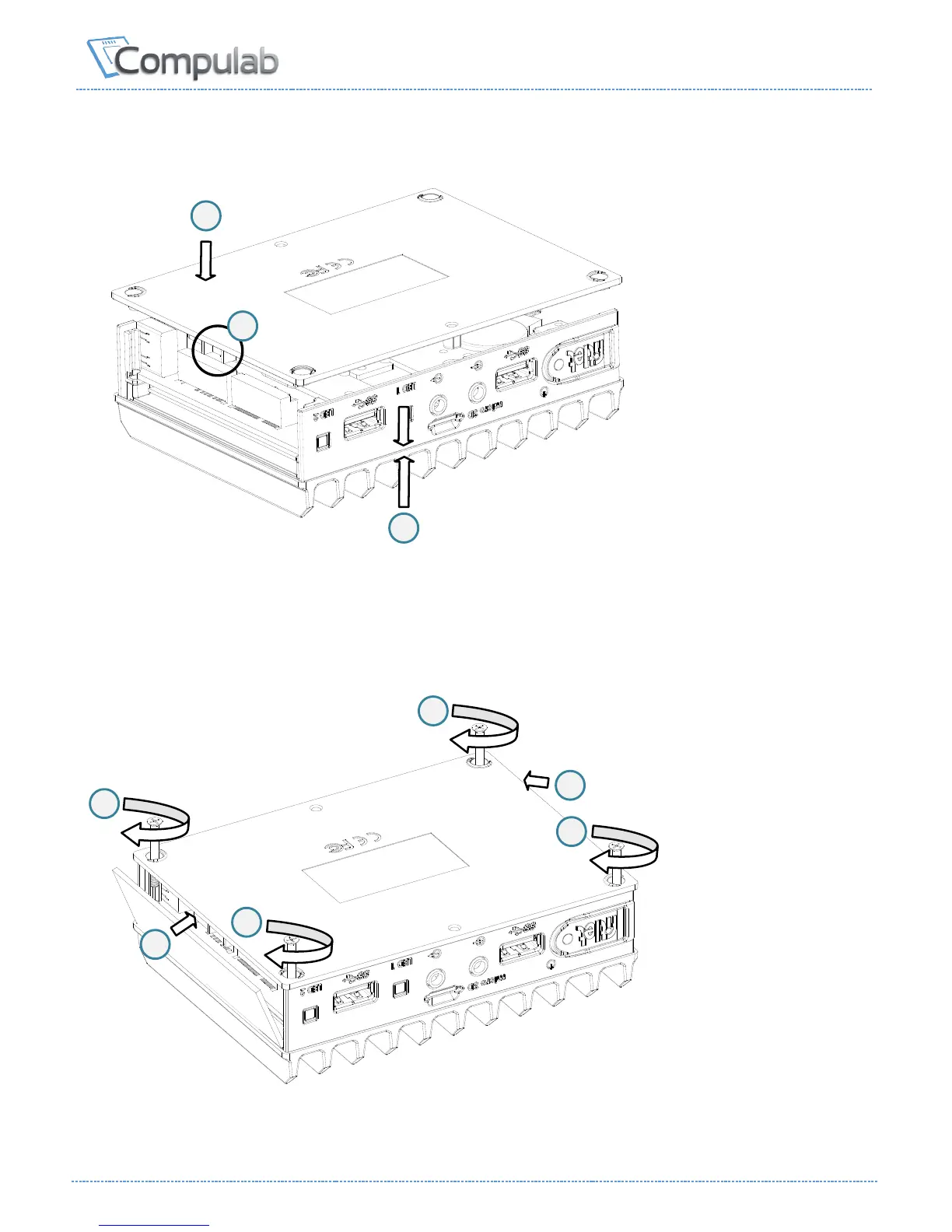

1. Place the fitlet2 onto the top cover.
Note: The top cover is symmetric – direction does not matter.
2. Place the bottom cover onto the fitlet2.
Important note: The tall U-shaped boss has to be near the M.2 sockets. Otherwise the
bottom cover will not fit!
3
3
4
4
4
4
3. Click both side panels into place
4. Tighten the 4 screws
