M.2 cooling plate and SSD
The M.2 cooling plate has several purposes:
• Allow installation of multiple form factor M.2 devices and FACET Cards
• Provide cooling to M.2 devices
• Assist in battery placement
• Provide proper cable management inside fitlet2
fitlet2 accepts M.2 M-key 2242 | 2260 SATA SSD.
The SSD has to be fastened to the M.2 cooling plate. Then the M.2 cooling plate is placed at the
underside of the motherboard and fastened to the front and back panel.
To install SSD onto M.2 cooling plate
1. Screw the 3 alignment screws into the marked holes. These screws are used to position the
M.2 devices
2. Peel-off protective film from the two thermal pads.

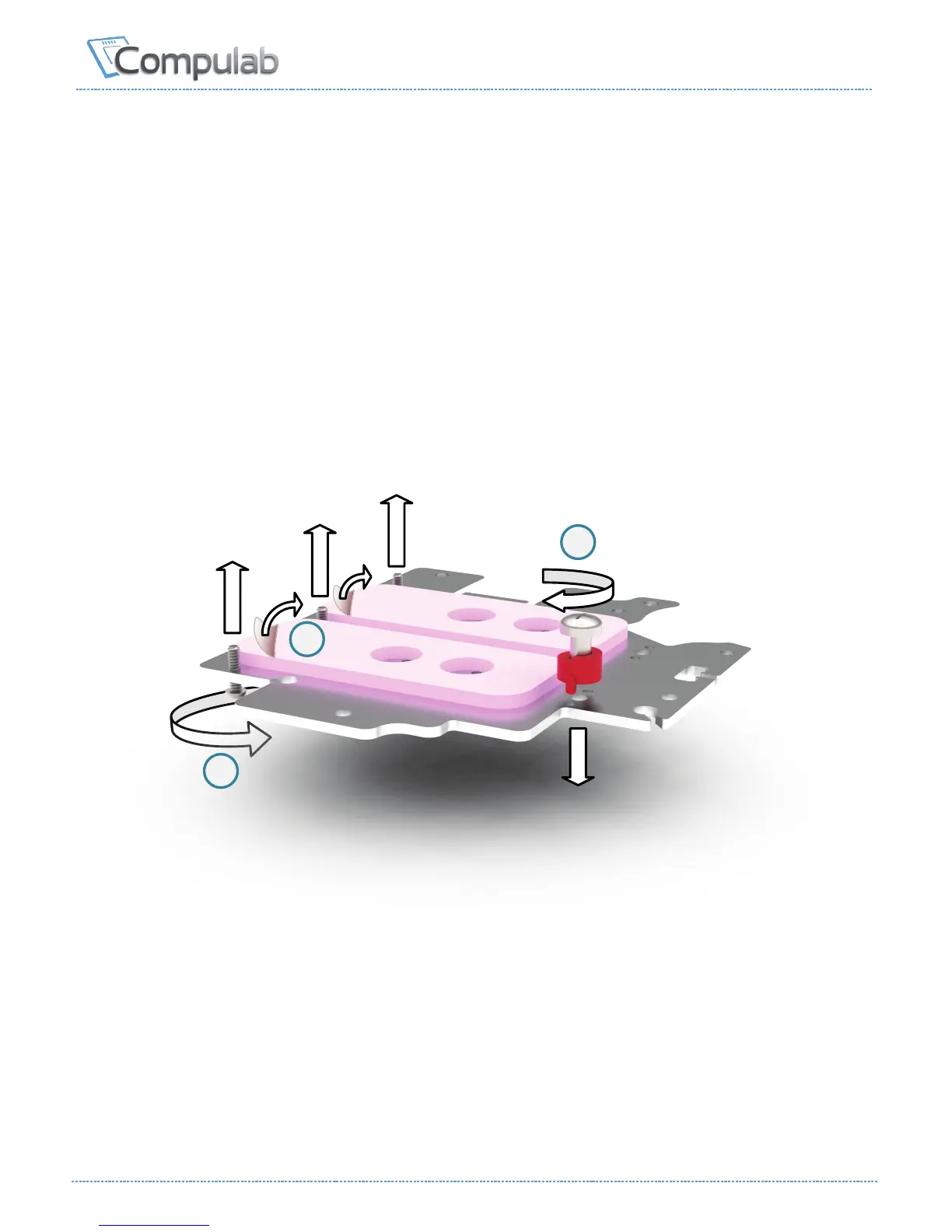

3. Place the red M.2 spacer according to the length of the M.2 SSD as depicted below.
Note orientation of the spacer: The recessed side should face the alignment screws.
Insert M.2 fastening screw but do not tighten.
