1. Before connecting fitlet2 please ensure that RAM and storage device are installed as
detailed in the above sections.
2. Connect the display to fitlet2 using HDMI or mini-DP cable.
3. Connect to fitlet2 USB keyboard and mouse.

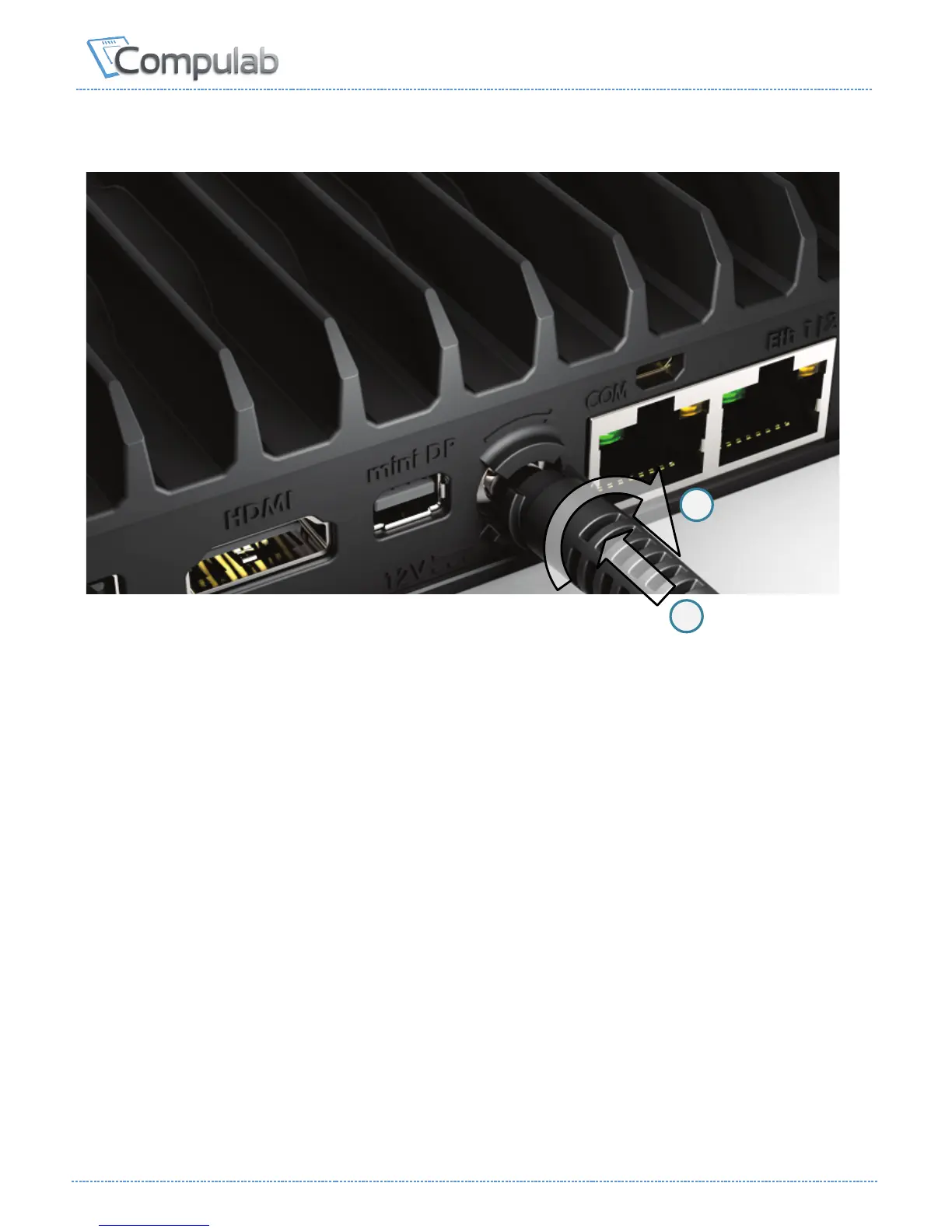

4. Insert the DC plug into the fitlet2 DC-in jack. Rotate clockwise 90° to secure.
5. Slide into the power-supply the AC blade correct to your country and plug the power-
supply into an AC-outlet. The power button on fitlet2 should turn green, in a few seconds
an image should appear on the display.
6. Connect Ethernet cable as needed. When link is established the link LED on RJ45 should
light.
7. If fitlet2 has WiFi adapter installed you will observe two SMA connectors (gold color
screws) on the side panel. Connect the included antennas by screwing them clockwise
onto the SMA connectors to enable WiFi communication.
