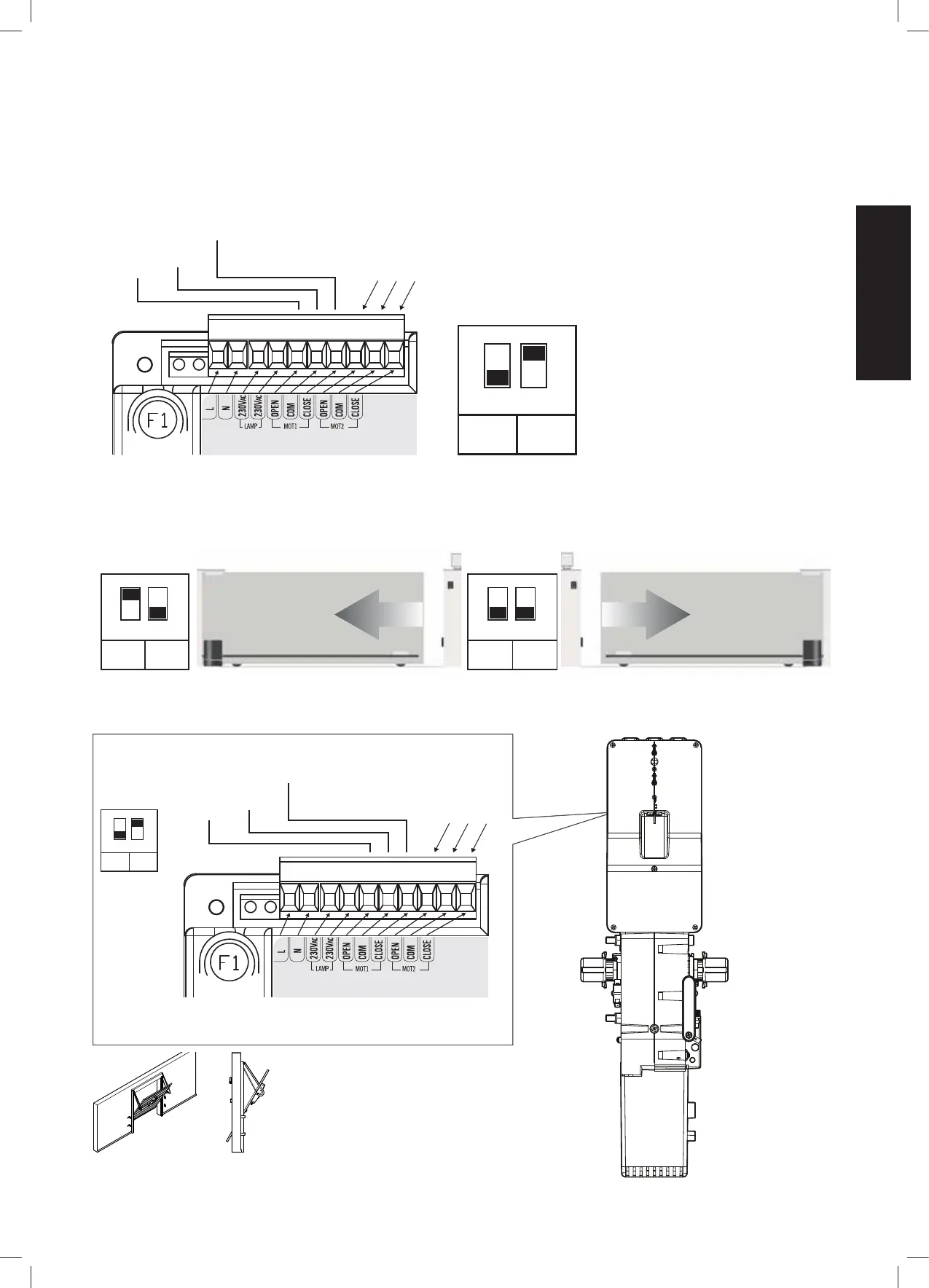

4 CONNECTION WITH ONE MOTOR
4.1 FORT
MOTOR OUTPUT 1
MOTOR OUTPUT 2
DO NOT USE
CN1
L N
OP1 CM1 CL1 OP2 CM2 CL2
230V 230V
BLACK
Close
BROWN
Open
BLUE
GND
1
1
ON
2
MOTOR
M2 NOT
CONSID.
SW1
In this mode SW1 has been adjusted with:
DIP1 OFF : only MOTOR 1 is considered
DIP2 ON : NOT USED
SW2 setting to have an opening to the LEFT (inner side view) SW2 setting to have an opening to the Rights (inner side view)
INV
MOT 1
1
ON
2
SW2
INV
MOT 1
1
ON
2
SW2
4.2 SALIENT
Single motor installation (up to 9 m2)
MOTOR 1
OUTPUT
USCITA MOTORE 2
NOT USED
CN1
L N
OP1 CM1 CL1 OP2 CM2 CL2
230V 230V
Black
CLOSES
Brown
OPENS
Blue
GND
1
1
ON
2
MOTOR
M2 NOT
CONSID.
SW1
IMPORTANT NOTE: DO NOT CHANGE THE CONFIGURATION.
Opens to LEFT, closes to Rights (left prole view, as in the image).
Double motor installation (up to 16 m
2
)
