2 WIRES CONNECTION TABLE:

n° DESCRIPTION CABLE LENGTH from 1m to 20m LENGHT from 20m to 50m

1 Power supply

EN standard 50575,

in the list of harmo-

nized rules for the

Regulation CPR

305/2011, Com.

2016/C 209/03

2 x 1,5 mm

2 x 2,5 mm

6A Motor power supply 3 x 1,5 mm

3 x 2,5 mm

2 Flashing light 2 x 0,5 mm

2 x 1,0 mm

4A, 5A TX photocell 2 x 0,5 mm

2 x 1,0 mm

4B, 5B RX photocell 4 x 0,5 mm

4 x 1,0 mm

6 Key selector 3 x 0,5 mm

3 x 1,0 mm

6B Limit switches 3 x 0,5 mm

3 x 1,0 mm

6C Encoder 3 x 0,5 mm

3 x 1,0 mm

3 Antenna RG58 Massimo 20m

Tab1

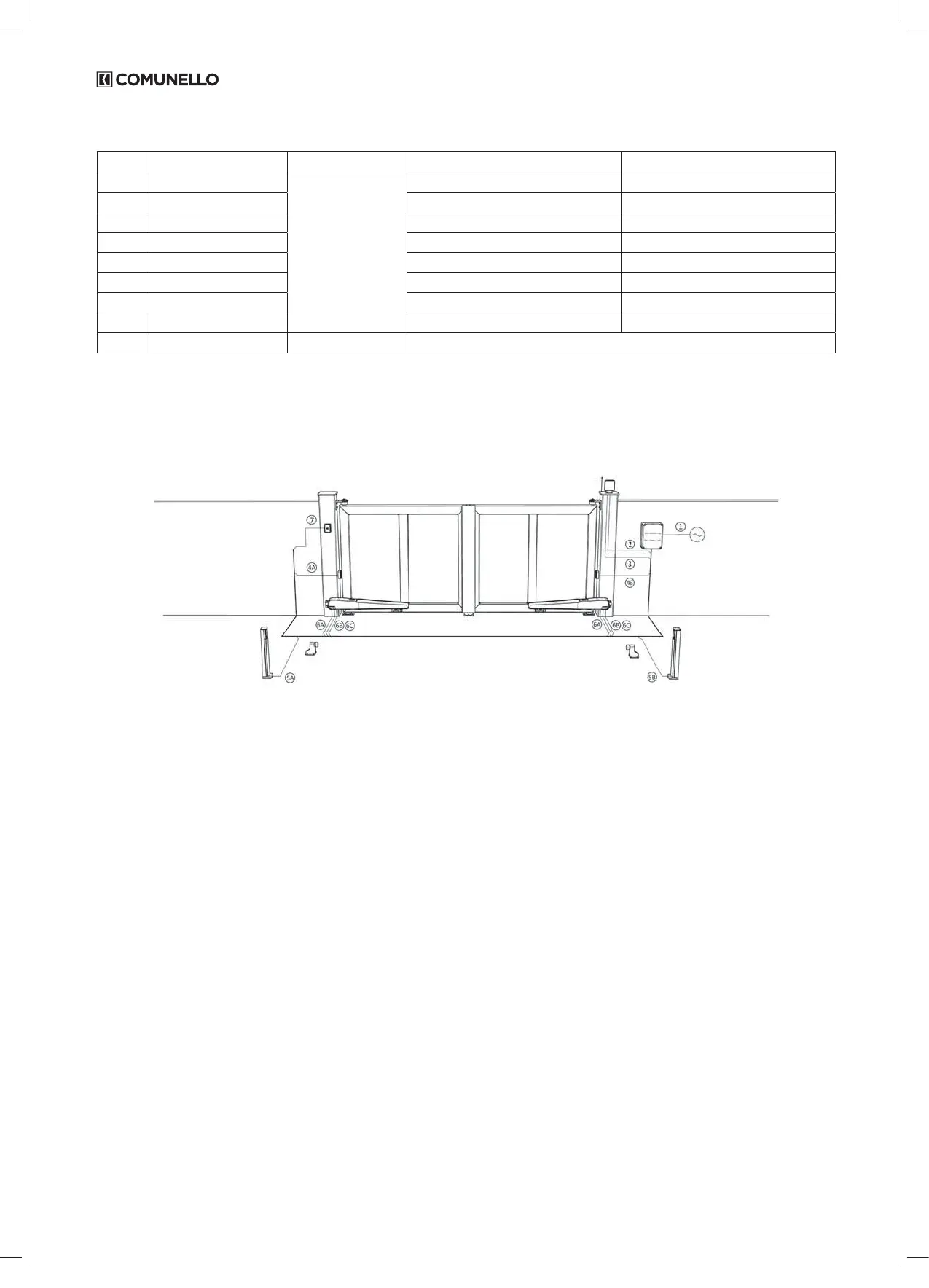

The table refers to the example of wiring shown in the ABACUS model manual for swing motors.

NOTE: If the cables are of a different length than those shown in the table, the section of the cables must be determined based on the actual absorption

of the connected devices.

The requirements are reported in the EN 50575: 2014 standard:

With the publication of the standard EN 50575, in the list of harmonized standards for Regulation CPR 305/2011, Com. 2016 / C 209/03, also electric

cables, already subject to CE marking for the Low Voltage Directive 2014/35 / EU, must be CE marked also under the CPR Regulation.

In the eventualities of connections with devices connected in parallel on the same power supply line, the sizing of the cables shown in Table 1 must be

re-evaluated on the basis of the absorptions and the actual distances.

3 TECHNICAL SPECIFICATIONS

Flashing light output no.1: 230 V~ 500 W max.

Flashing light output no.2: 24 V~ 4 W max.

Motors output: 230 V~ 2 x 500 W max.

Electric lock output: 12 Vcc 15 W max.

Photocells power supply: 24 V 5 W max. AC

Pilot light output: 24 V~ 4 W max.

Working temperature: -20 ÷ 55 °C

Radio receiver: 433 Mhz

Transmitters: 18 Bit o Rolling Code

Max TX codes stored: 120 (CODE PP o CODE PED/2°CH)
