Comunello CU - 230V - HP - CONDOR Model Two Motors Connection

32
COMUNELLO ®Copyright 2019 - All rights reserved
2
MOTORS
DELAY
MOT 1
1
ON
2
SW1
DIP1 ON = 2 motors congu-
ration
DIP2 ON = Delay of motor no. 1
INV
OFF
INV
OFF
1
ON
2
SW2
DIP1 OFF = inversion MOTOR
no. 1 disabled
DIP2 OFF = inversion MOTOR
no. 2 disabled
Wire connection of the motors to the control unit:
OPEN with OP1
COMMON with CM1
CLOSE with CL1
OPEN with OP2
COMMON with CM2
CLOSE with CL2
M
+24 V 0 V
M
~
OPEN COMMON CLOSED
M
~
OPEN COMMON CLOSED
M
~
OPEN COMMON CLOSED
M
~
OPEN COMMON CLOSED
M
~
OPEN COMMON CLOSED
L N
OP1 CM1 CL1 OP2 CM2 CL2

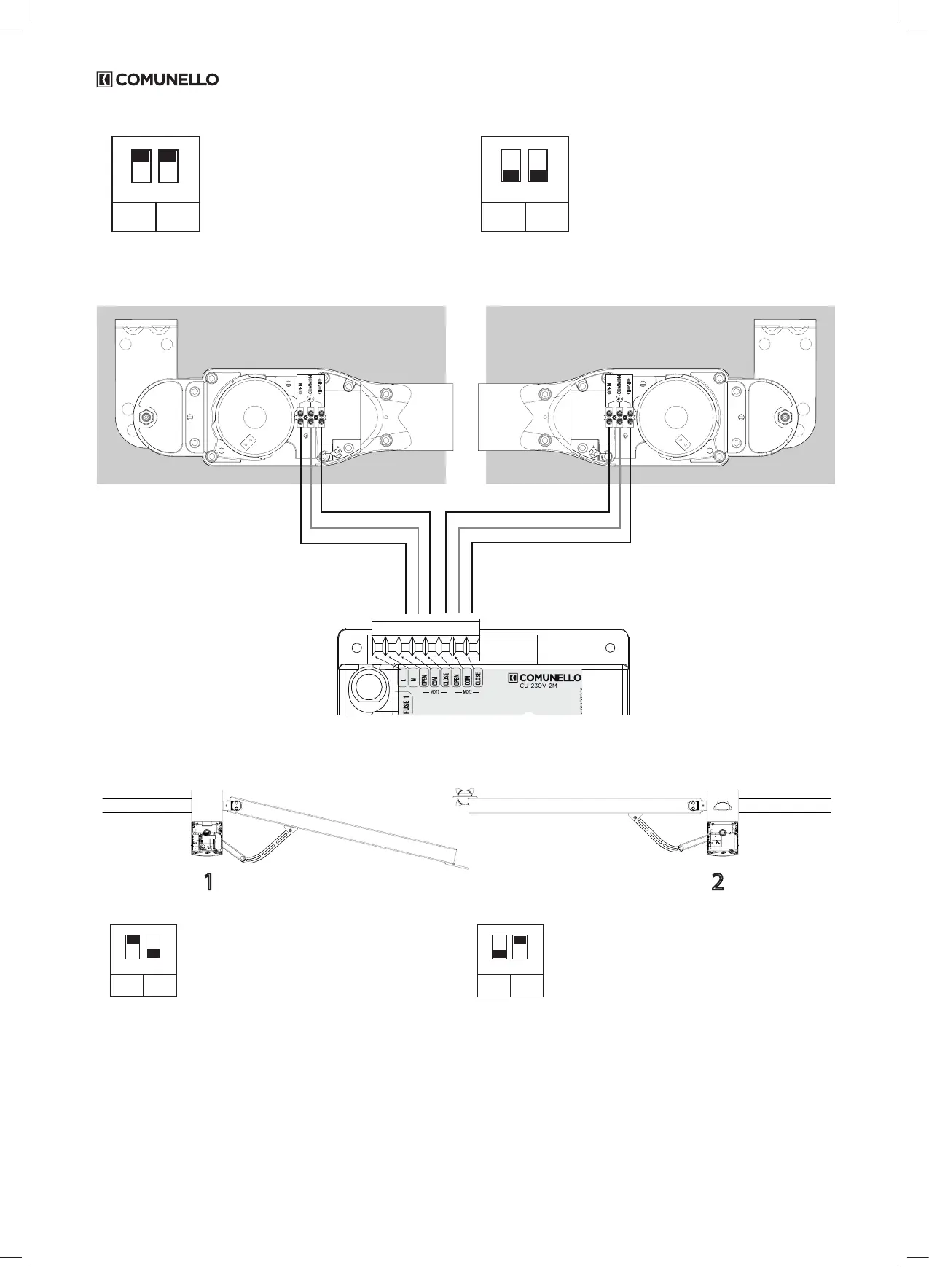

5.3 CONDOR - connection diagram of the motors
DELAY OF THE MOTOR no.2
1 2
2
MOTORS
DELAY
MOT 2
1
ON
2
SW1
DIP1 ON = 2 motors congu-
ration
DIP2 OFF = Delay of motor no. 2
INV
OFF
INV
MOT 2
1
ON
2
SW2
DIP1 OFF = inversion MOTOR
no. 1 disabled
DIP2 ON = inversion MOTOR no.
2 enabled
