Comunello CU 24V 2M ONE - Page 10

12
INV1 INV2 INV1-2
INV1 INV2 INV1-2
12

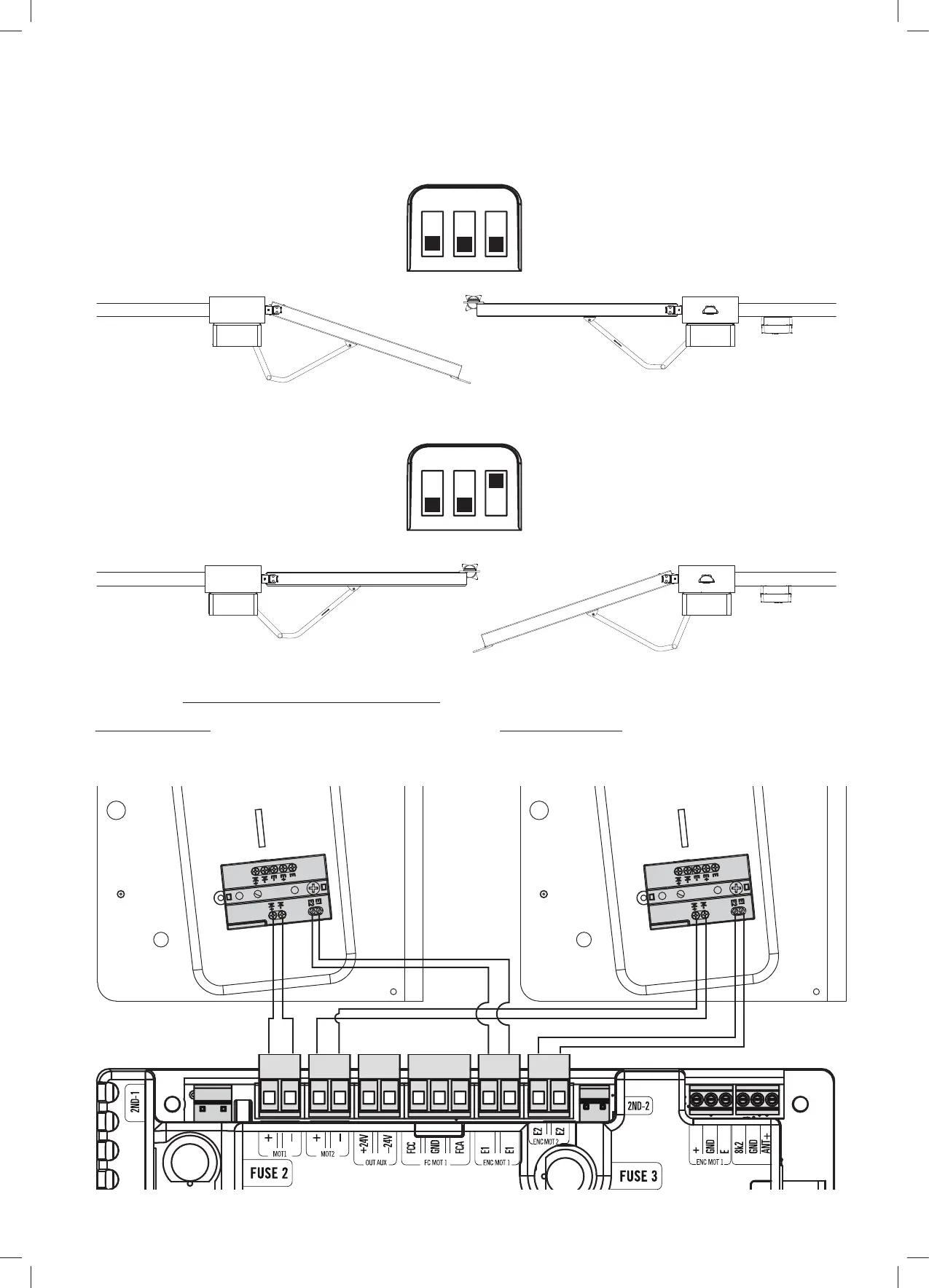

CONDOR 500 - connection diagram of the motors
Conguration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOTOR n.1 (on the left)
MOT1+ with M+
MOT1- with M-
MOTOR n.2 (on the right)
MOT2+ with M-
MOT2- with M+
• DELAY OF THE MOTOR n.2
• DELAY OF THE MOTOR n.1
