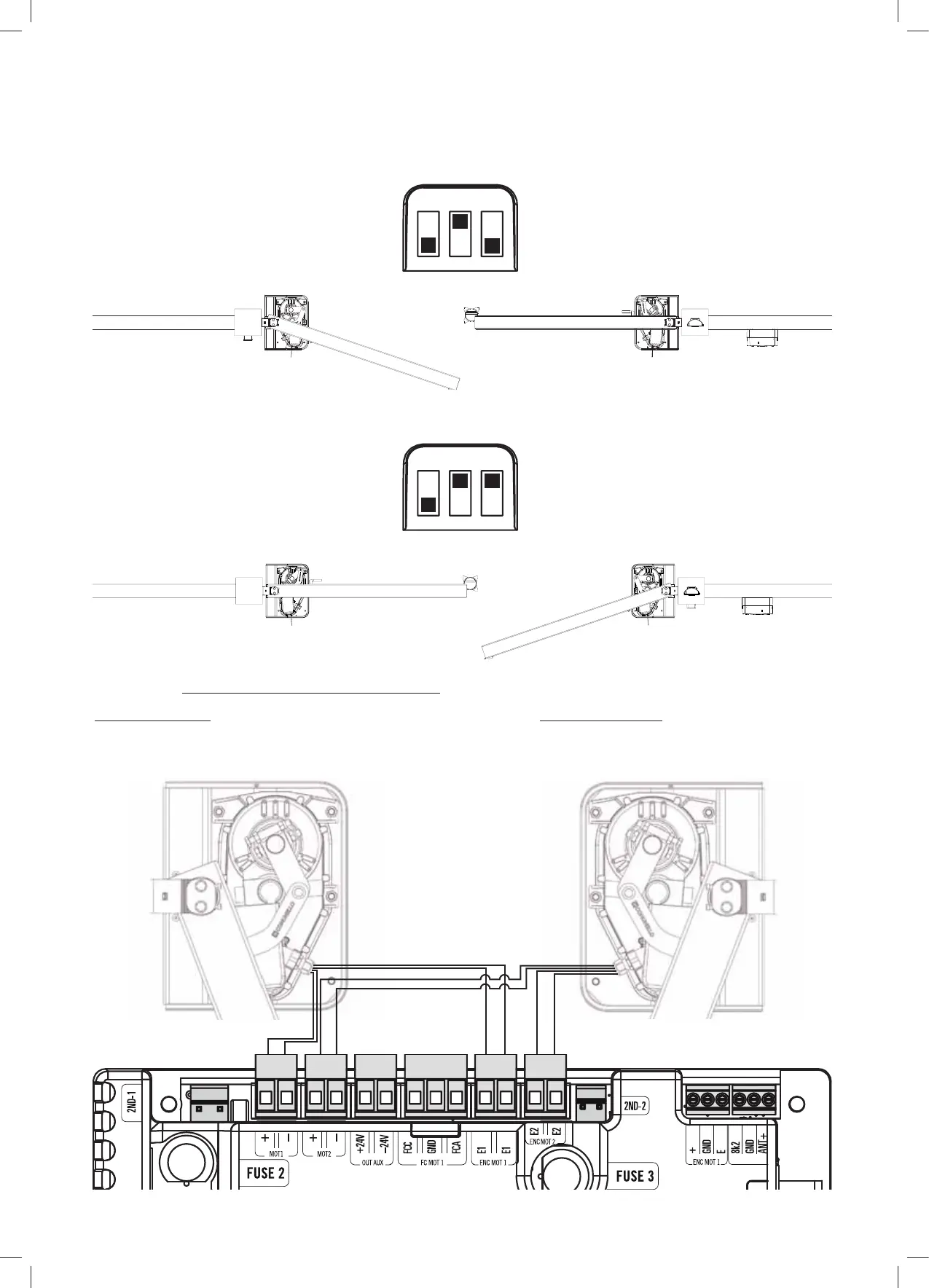

EAGLE - connection diagram of the motors
12
INV1 INV2 INV1-2
INV1 INV2 INV1-2
12
• DELAY OF THE MOTOR n.2
• DELAY OF THE MOTOR n.1
Conguration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOTOR n.1 (on the left)
RED with MOT1+
BLACK with MOT1-
MOTOR n.2 (on the right)
RED with MOT2+
BLACK with MOT2-
