CONCEPT2.COM
Page 5 0914

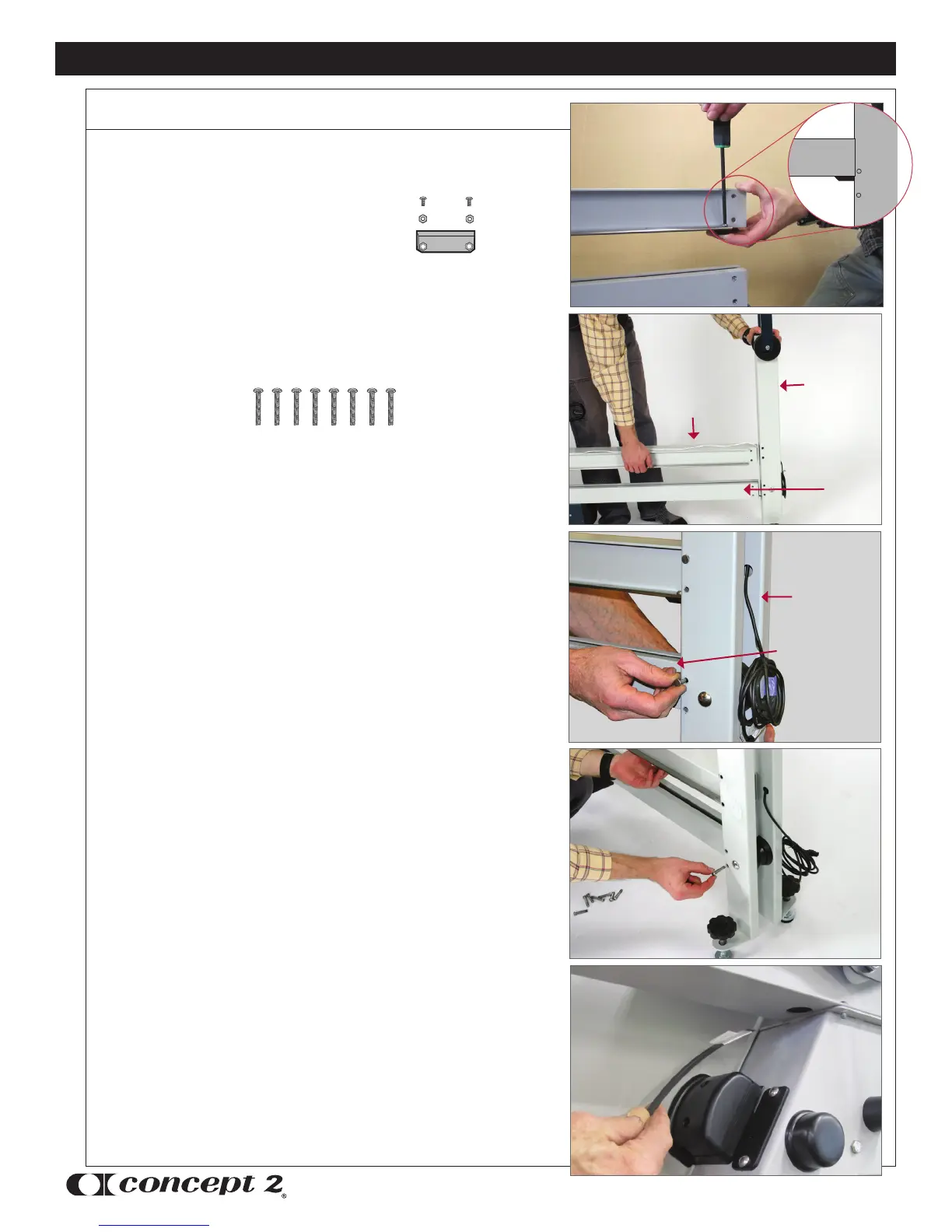

Step 7: Install Rail Assembly End Stop
(2) 1/2” (1.27 cm) PN 2226
(1) x Rail Assembly end stop w/2 nuts
Install the rail assembly end stop on the
underside of the rail assembly. Be sure nuts are
oriented down toward the floor. See photo K.
Step 8: Attach Front Leg/Monitor Arm
Assembly
(8) 1 3/8” (3.49 cm)
PN 2228
Note: You may need a second person to assist you
with aligning the holes.
Position the front leg/monitor arm assembly at end of
the shuttle channel and rail assembly. Lift the shuttle
channel and rail assembly up with one hand and slide
them between the two front legs. See photo L.
Hint: Insert one 20-penny nail through the top fastener
hole into the rail assembly and one 20-penny nail
through the top fastener hole into the shuttle channel
to temporarily align all fastener holes. Note that these
nails will be replaced with the screws. See photo M.
Once you have the parts aligned, insert screws but
do not fully tighten until all eight screws are in place.
Note that you may need to jostle the rail assembly and
shuttle channel to get the screws started.
See photo N
Step 9: Install the Generator Cable
Uncoil the black installation leader tape by removing
the blue tape. DO NOT remove the white tape on the
end.
At the back end of the rail assembly near the flywheel,
feed the white-taped end of the black installation
leader tape through the hole in the underside of the rail
assembly. See photo O.
Assembly continued
CONCEPT2 DYNAMIC INDOOR ROWER
Rail Assembly
Shuttle Channel
photo K
photo L
Shuttle
Channel
Front Leg/
Monitor
Arm
Assembly
Rail
Assembly
photo O
photo N
Front Leg/
Monitor Arm
Assembly
Rail Assembly
1
2
photo M
Shuttle Channel
To Next Page
