CONCEPT2 DYNAMIC INDOOR ROWER
Assembly Instructions

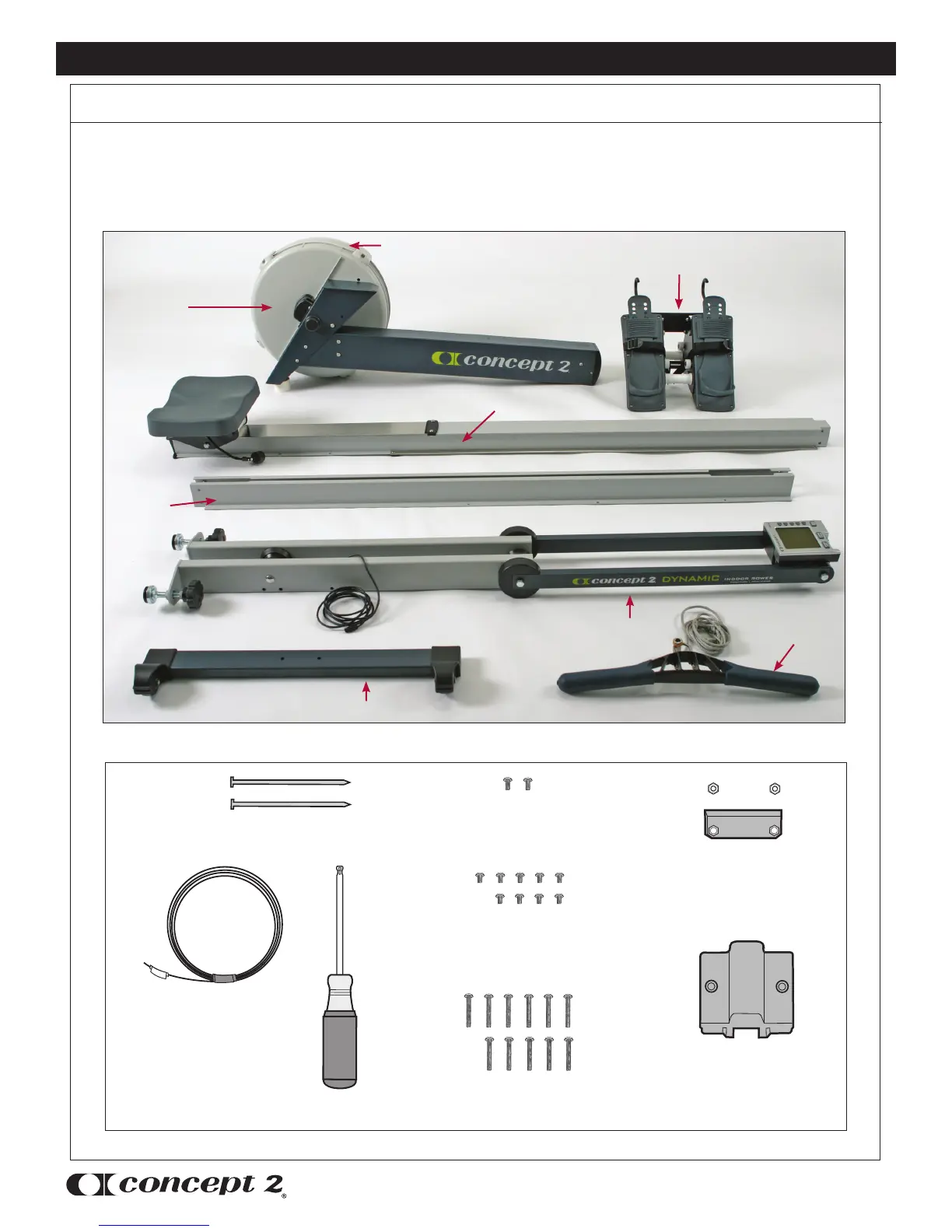

Step 1. Open the two boxes and remove all the parts. Lay out the parts as shown below and read
through the assembly instructions before beginning assembly. Note: The clear plastic shield located
on the top of the flywheel is the optional Wind Shield. See Additional Notes for usage on page 9
Foot Carriage
Flywheel
Return
Assembly
Shuttle
Channel
Rail Assembly
Front Leg/Monitor Arm Assembly
Rear Foot
Handle
Installation
leader tape
Parts for Assembly
2 PN 2226 T27 6 lobe drive x
1/2” patched rev. ss
11 PN 2228 T27 6 lobe drive
x 1 3/8” patched rev. ss
1 Rail Assembly
End Stop w/2 nuts
1 Front Leg End Cap
1 6 lobe Driver
2 20-penny nails
9 PN 2239 T27 6 lobe drive x
3/8” patched rev. ss
(Located in plastic
bag with manuals)
Wind Shield
