CONCEPT2 DYNAMIC INDOOR ROWER
Step 11: Install Handle Drive Cord and
Front Leg End Cap
(2) 1 3/8” (3.49 cm)
PN 2228

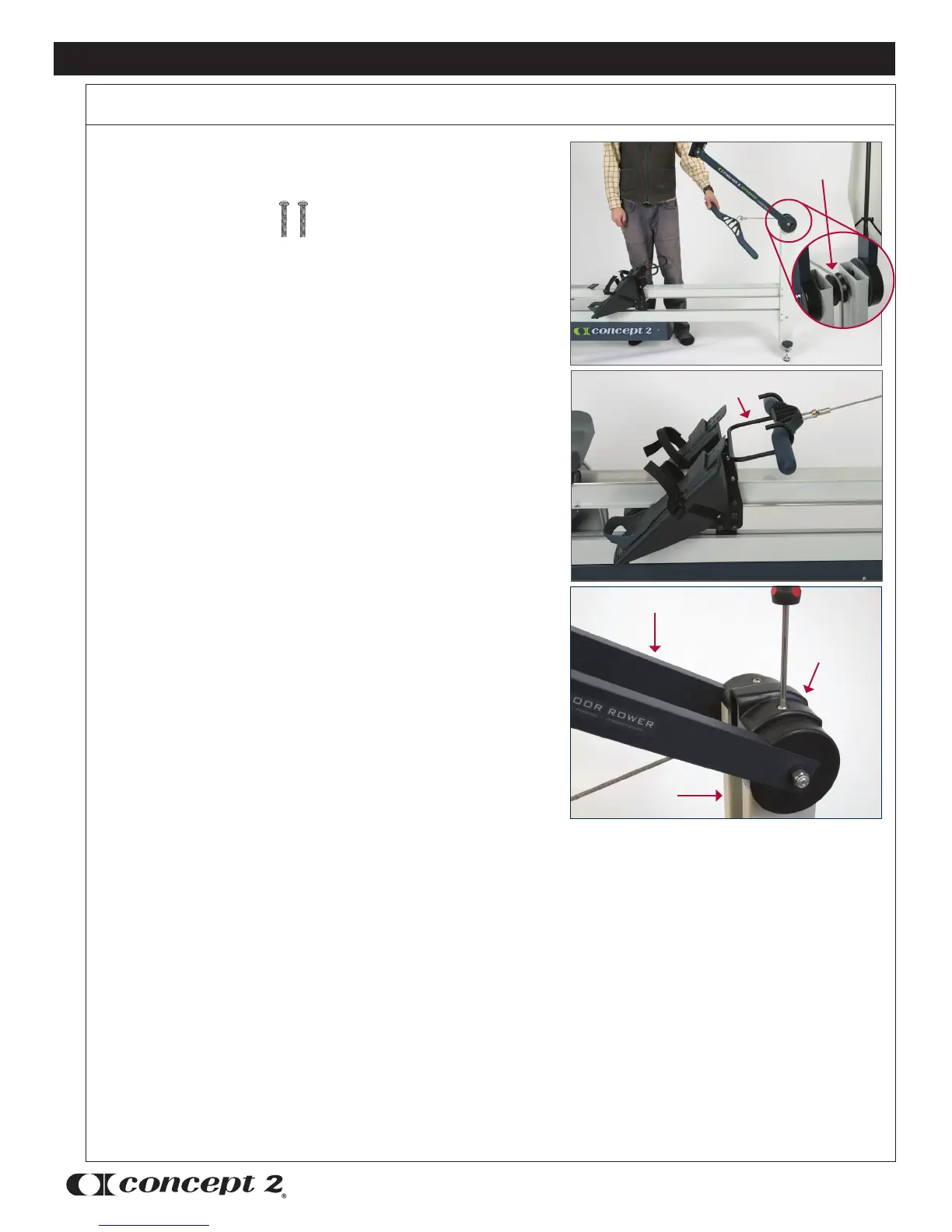

Run the handle with drive cord around the top pulley.
See photo Z.
Pull the handle toward the foot carriage until it can be
placed in the foot carriage handle hook.
See photo Z1.
Insert the front leg end cap over open end of front leg
where monitor arm joins the leg. Insert screws all the
way until the screw head meets the end cap. Even
though the screws will continue to spin, they are as
tight as they need to be. See photo Z2.
photo Z1
Foot Carriage Handle Hook
Top Pulley
photo Z
Assembly continued
photo Z2
Front Leg
End Cap
Monitor Arm
Front Leg
To Next Page
