while the yellow line connects to the device's relay control
(yellow line on power cord).

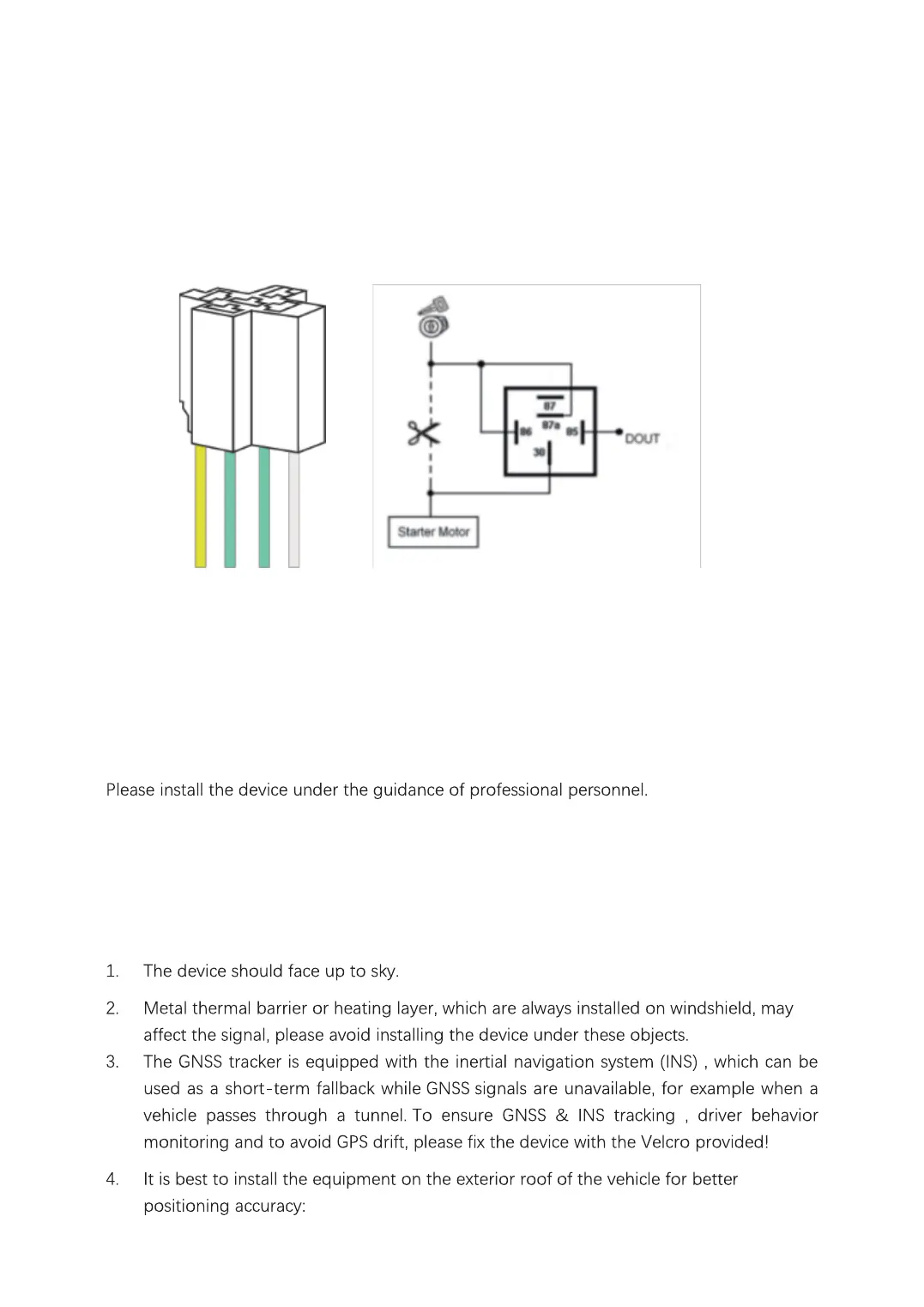

Find the fuel pump of the vehicle and cutoff its positive power line.
The positive side of fuel pump connects to the green line(87a) while
the side closing to starter motor connects to green line(30), as the
below chart. Switch of the two green lines have the same effect.
12V relay is standard. The device is suitable for vehicles with 12V supply.
If the vehicle power supply is 24V, use 24V relay.
Installation recommendation
Note: ( The device should be fixed on the vehicle stably,
it’s very important!)
