Condor XC-002 User Manual

Mechanical Key Cutting Machine CONDOR XC-002

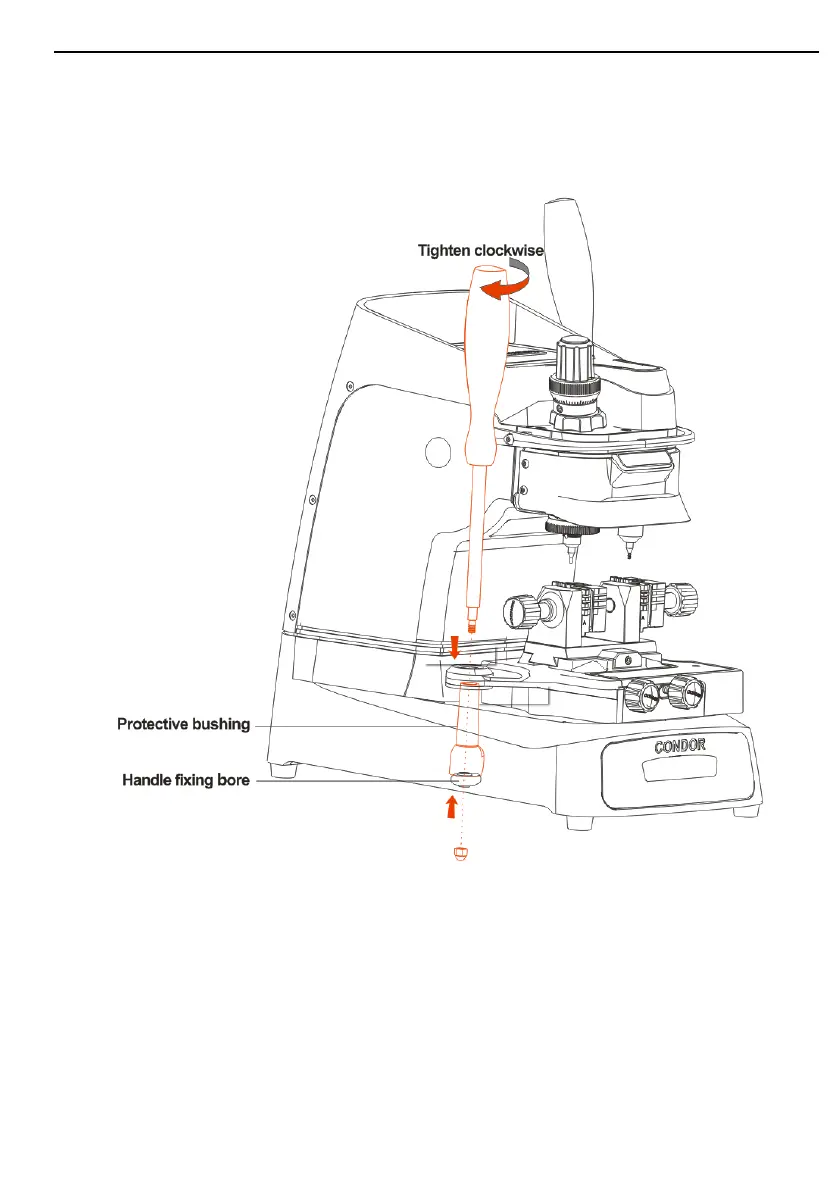

5.2 INSTALLING SUB-HANDLE
4) Insert the bottom of sub-handle into the installing hole, which is by the
left side of the machine body. Put on the protective bushing and then
plug in the lower bearing bore to avoid moving. Cover the screw cap
and rotate the handle clockwise until tightened.
17
