Mechanical Key Cutting Machine CONDOR XC-002

5.3 INSTALLING AND REMOVING PROBE/CUTTER

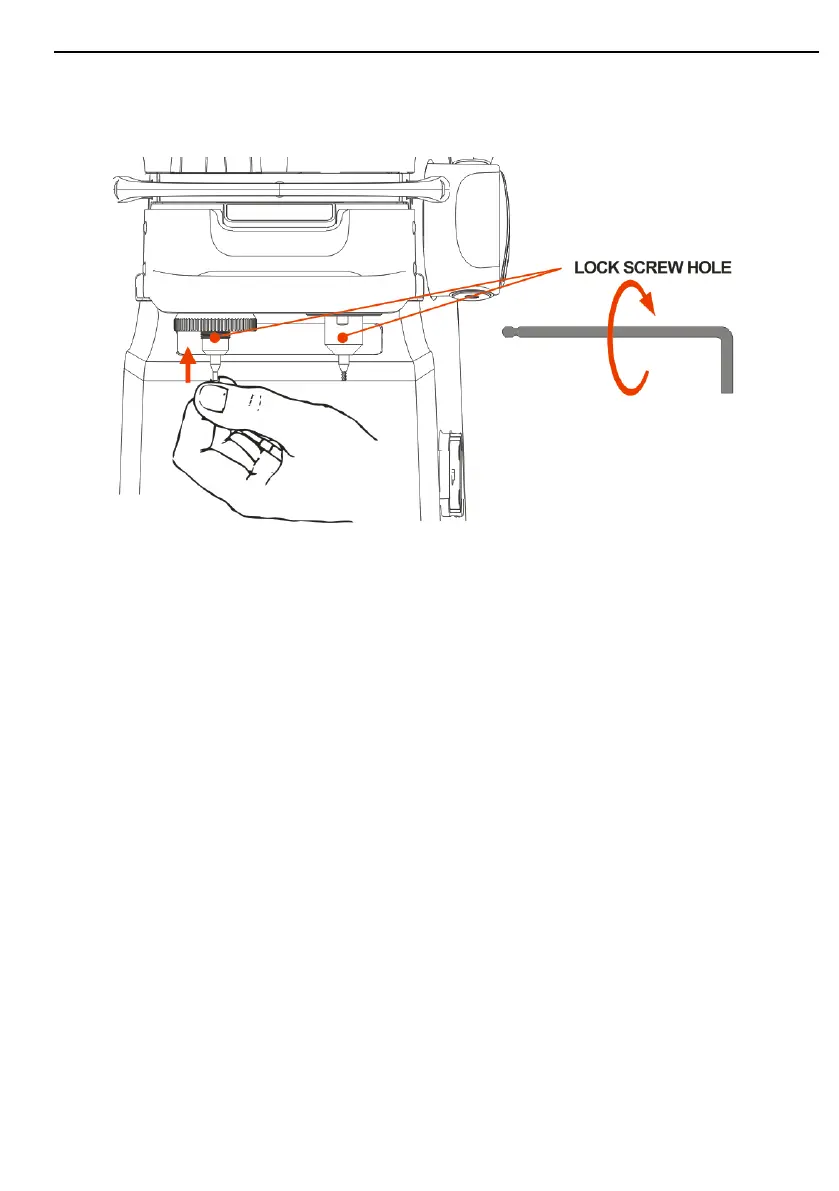

1) The left one is tracer and the right one is cutter. Put the tracer and

cutter into the hole and to the top limit position. Then use 2.5mm Allen

wrench to turn the lock screw clockwise respectively till the tracer and

cutter are both tightened.

NOTE: When using 1.5mm cutter and 2.5mm cutter, tracer and cutter must

select the top with the same diameter for processing.
