Condor XC-002 User Manual

Mechanical Key Cutting Machine CONDOR XC-002
6. OPERATING INSTRUCTIONS
6.1 KEY ALIGNMENT
There are two ways to align the key: shoulder alignment and head
alignment

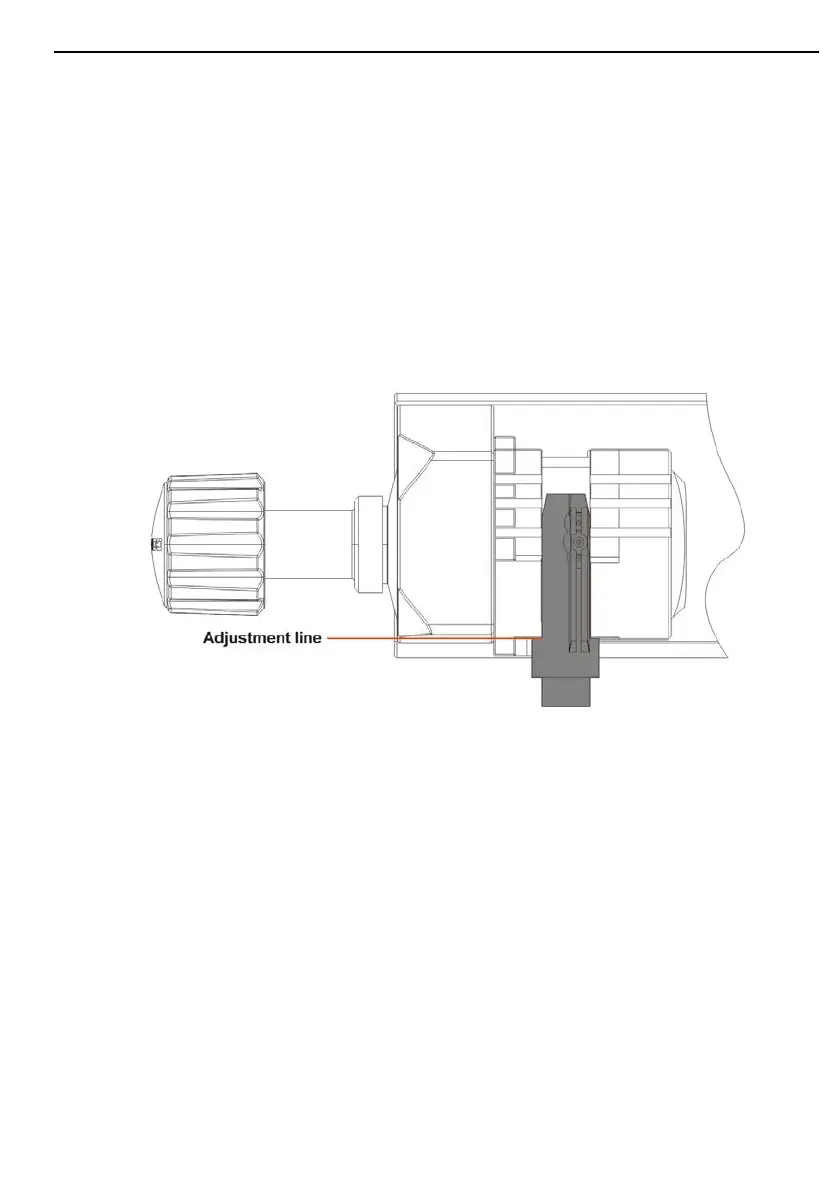

1) Shoulder alignment as shown below
Adjustment line
2) The position of head alignment as shown below, and 1, 2, 3 are the
block blades for different key types.
23
