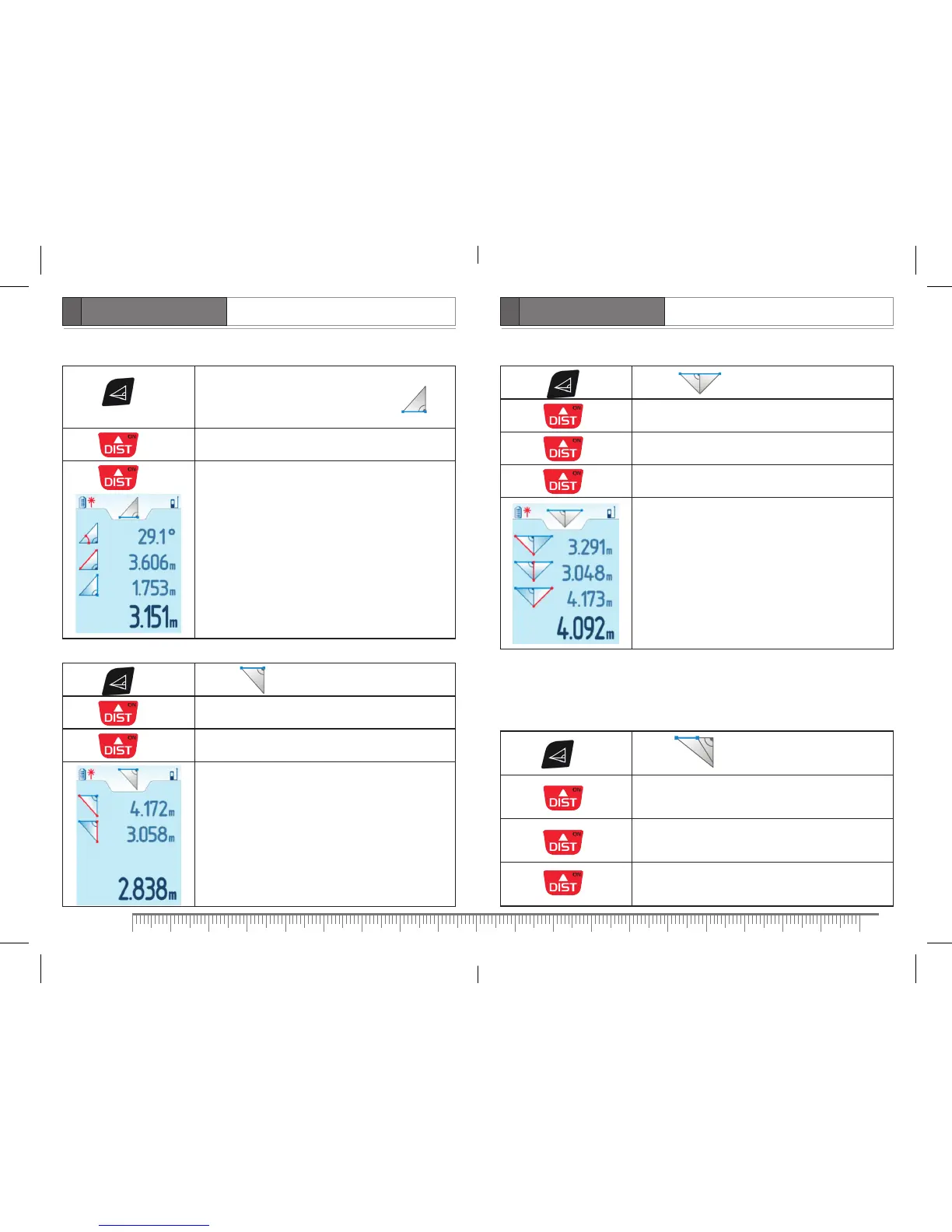

Calculation of horizontal distance by tilt sensor
Press
Activate function of horizontal distance calculation by
tilt sensor. Laser beam is on. Symbol
appears on the display. Line 1 – tilt angle.
Press Take first measurement (hypotenuse).
Press
– tilt angle (measured)
– hypotenuse (measured)
– vertical distance (calculated)
– horizontal distance (calculated)
Calculation of distance by 2 additional measurements (Pythagoras’ Theorem)
Press 2 times Symbol appears on the display.
Press Take first measurement (hypotenuse).
Press Take second measurement (cathetus).
– hypotenuse (measured)
– cathetus (measured)
– cathetus (calculated)
Calculation of distance by 3 additional measurements (Sum of cathetuses)
Press 3 times Symbol appears on the display.
Press Take first measurement (hypotenuse 1).
Press Take second measurement (cathetus).
Press Take third measurement (hypotenuse 2).
– hypotenuse 1 (measured)
– cathetus (measured)
– hypotenuse 2 (measured)
– cathetus (calculated)
Calculation of distance by 3 additional measurements
(Subtraction of 2 cathetuses)
Press 4 times Symbol appears on the display.
Press Take first measurement (hypotenuse 1).
Press Take second measurement (hypotenuse 2).
Press Take third measurement (cathetus).
