G
F
E---
D---':---1:-l.U
c-
B---Y(/.
A~~=:;J
B

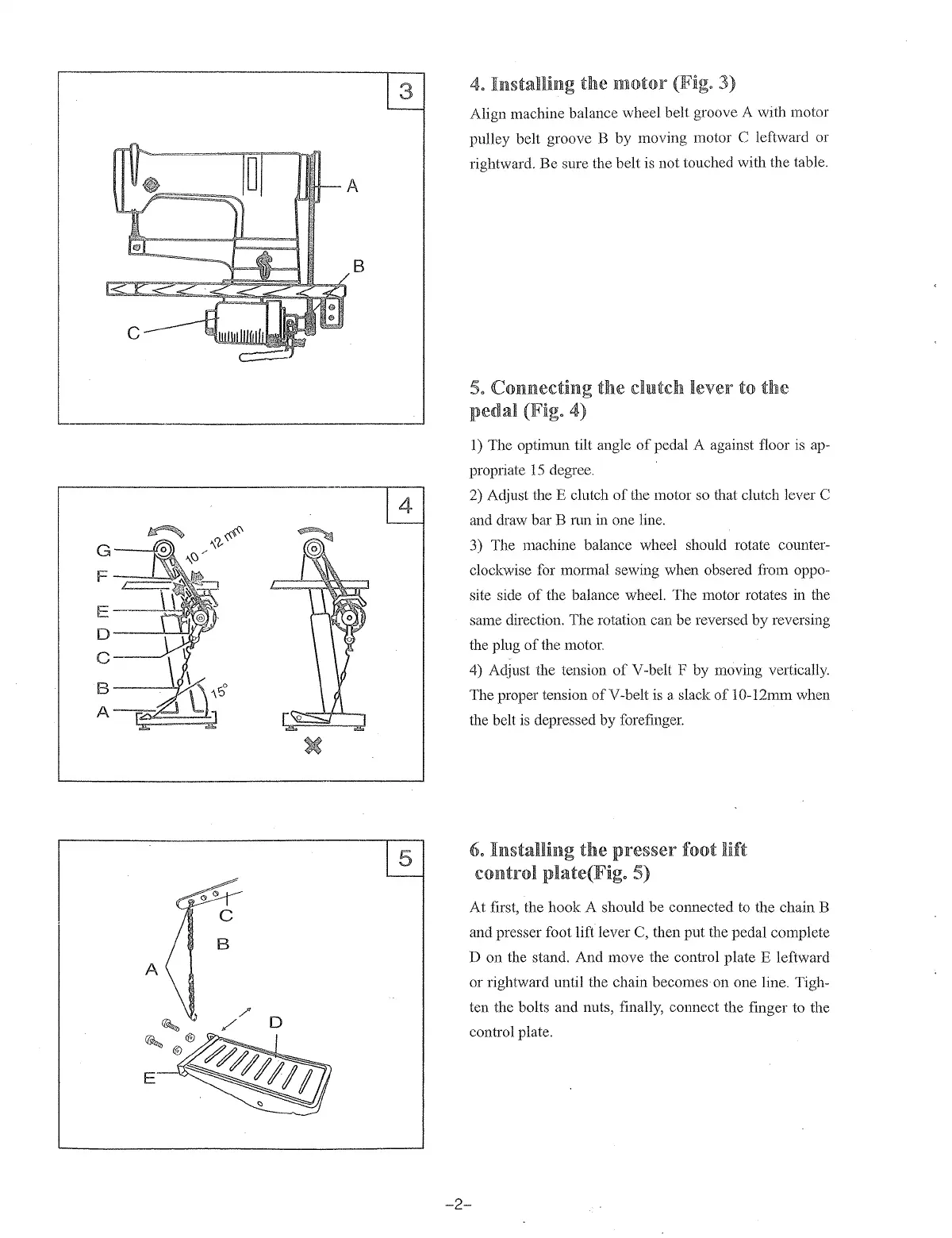

4. Installing
the
motor
(Fig. 3)
Align machine balance wheel belt groove A with motor
pulley belt groove B by moving motor C leftward or
rightward.
Be
sure the belt is not touched with the table.
5. Connecting
the
dutch
lever to
the
pedal
(Fig. 4)
1)
The optimun tilt angle
of
pedal A against floor
is
ap-
propriate
15
degree.
2) Adjust the E clutch
of
the motor so that clutch lever C
and draw bar B
nm
in one line.
3) The machine balance wheel should rotate counter-
clockwise for mormal sewing when obsered from oppo-
site side
of
the balance wheel. The motor rotates in the
same direction. The rotation can
be
reversed
by
reversing
the plug
of
the motor.
4) Adjust the tension
of
V-belt F by moving vertically.
The proper tension
ofV-belt
is
a slack
of
10-12mm when
the belt is depressed by forefinger.
6.
Installing
the
presser
foot lift
control plate(Fig.
5)
At
first, the
hook
A should
be
connected to the chain B
and presser foot lift lever C, then put the pedal complete
D on the stand. And move the control plate E leftward
or rightward until the chain becomes on one line. Tigh-
ten the bolts and nuts, finally, connect the finger to the
control plate.
-2-
