OPERATING & INSTALLATION INSTRUCTION 2-POST-LIFT
Post-Lift

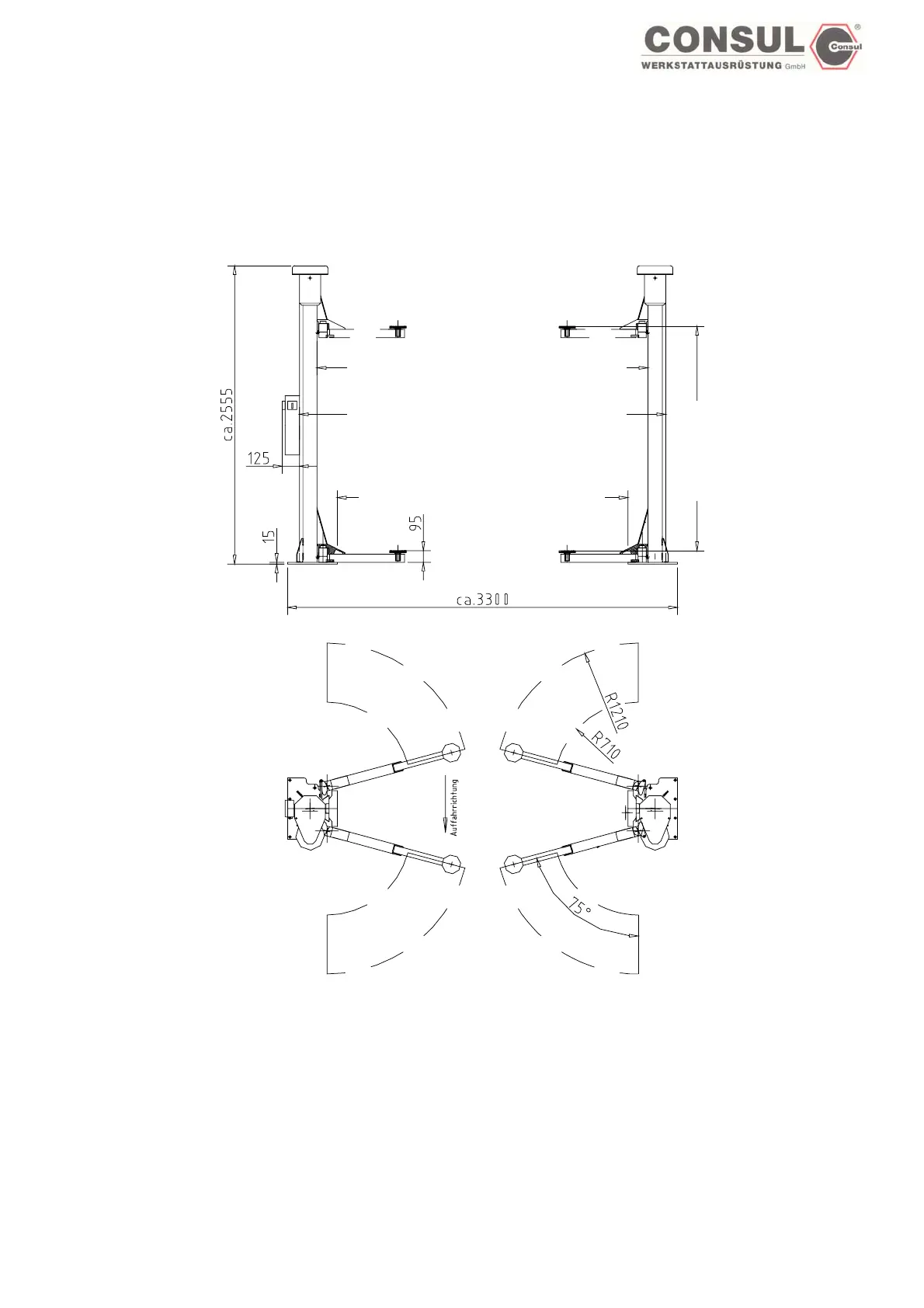

Consul 2.35 EL-S H301
2-Post-Lift 2.35 Modula with symmetric swivel arms
Distance between the columns 2800
Dimension outside coulmns 3100
Stroke 1900
Max. vehicle width 2460
Accessory:
see catalogue!
Subject to change without prior notice !
