OPERATING & INSTALLATION INSTRUCTION 2-POST-LIFT

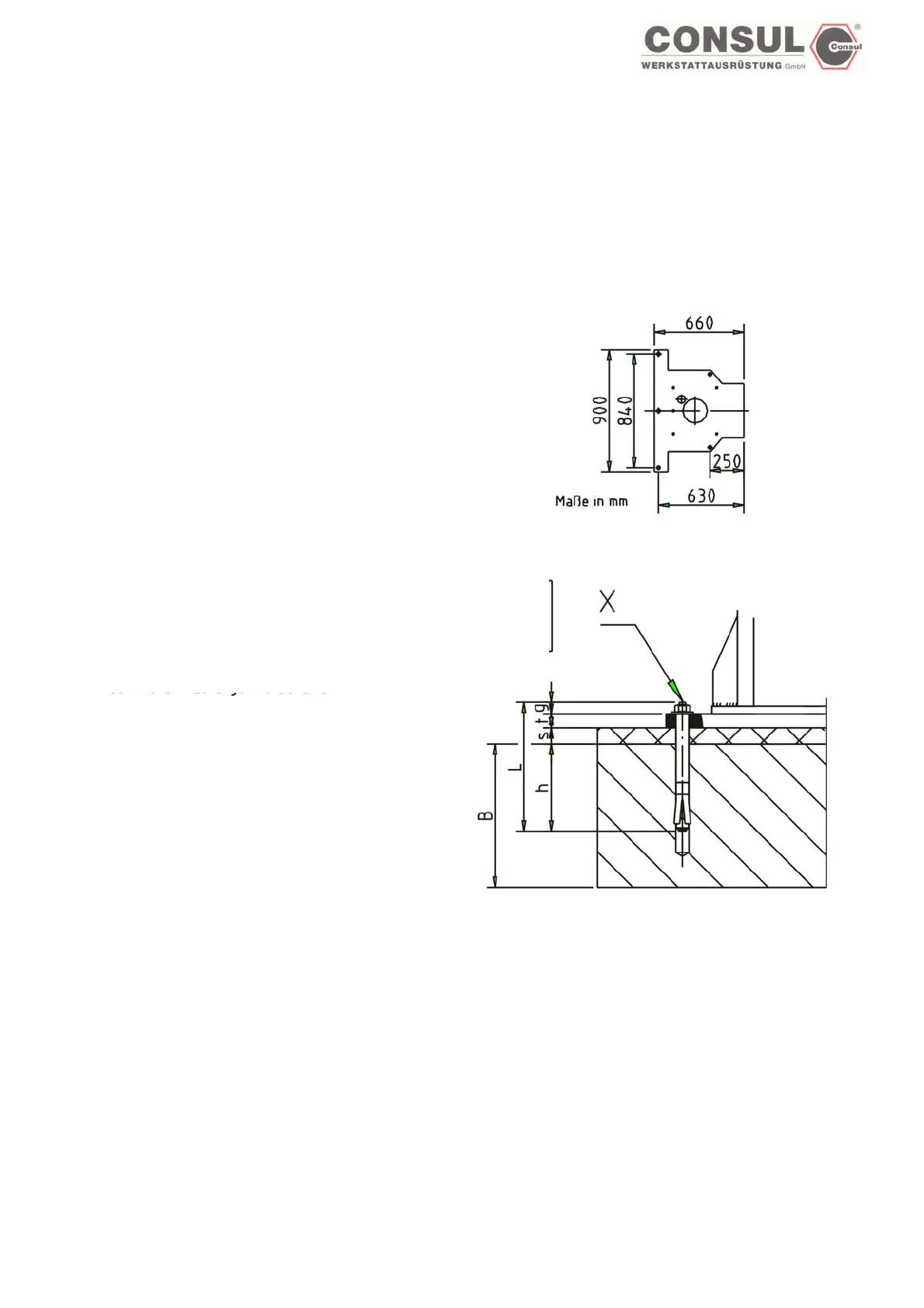

Floor fixing for lifts over 4 to EL version
B = thickness of floor covering grad 21 cm
h = anchoring bolt depth by B25
s = thickness of floor material til concrete B25
t = foot plate thickness
g = screw length
L = dowel length
X = according to the instructions of manufacturer
dowel length: L = h + s + t + g
UPAT UKA 3 M16
Hilti HSL –TZ M16
Fischer – M16
Accordance to type anchor used for the 26 +1 hole in the base
plate, the washer must be of sufficient size.
Subject to change without prior notice!
