OPERATING & INSTALLATION INSTRUCTION 2-POST-LIFT

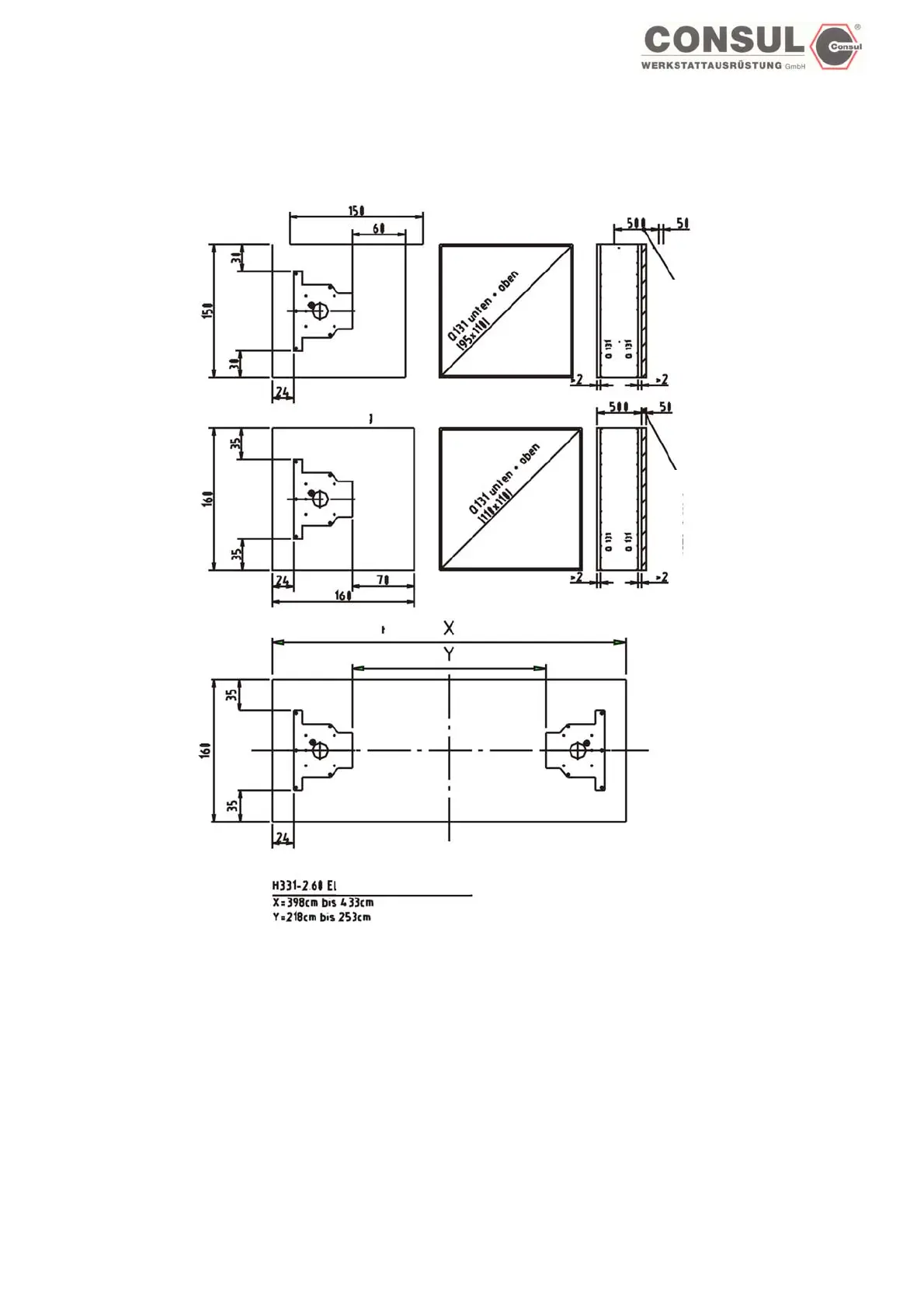

Foundation for lifts over 4 to EL version
Single foundation reinforcement
Blinding concrete Blinding concrete
Concrete plate B25
thickness s = > 21 cm
permissible a
sx
= 2,57 cm²/m - under reinforcement BST 500 M
permissible a
Sx,y
= 3,77 cm²/m - above reinforcementBST 500M
Column fitting: for ex. Heavy anchor HSL TZ M16
or UPAT UKA 3 M16
Important: Always follow the assembly instructions and keep to the min. anchoring depths
specified by the dowel manufacturers. Individual certificats must be provided for anchroing on an
exixting reinforced concrete ceiling.
Tests on existing concrete floor are necessary for anchoring!
Page 30
