Consul 2.35 - Page 16

OPERATING & INSTALLATION INSTRUCTION 2-POST-LIFT

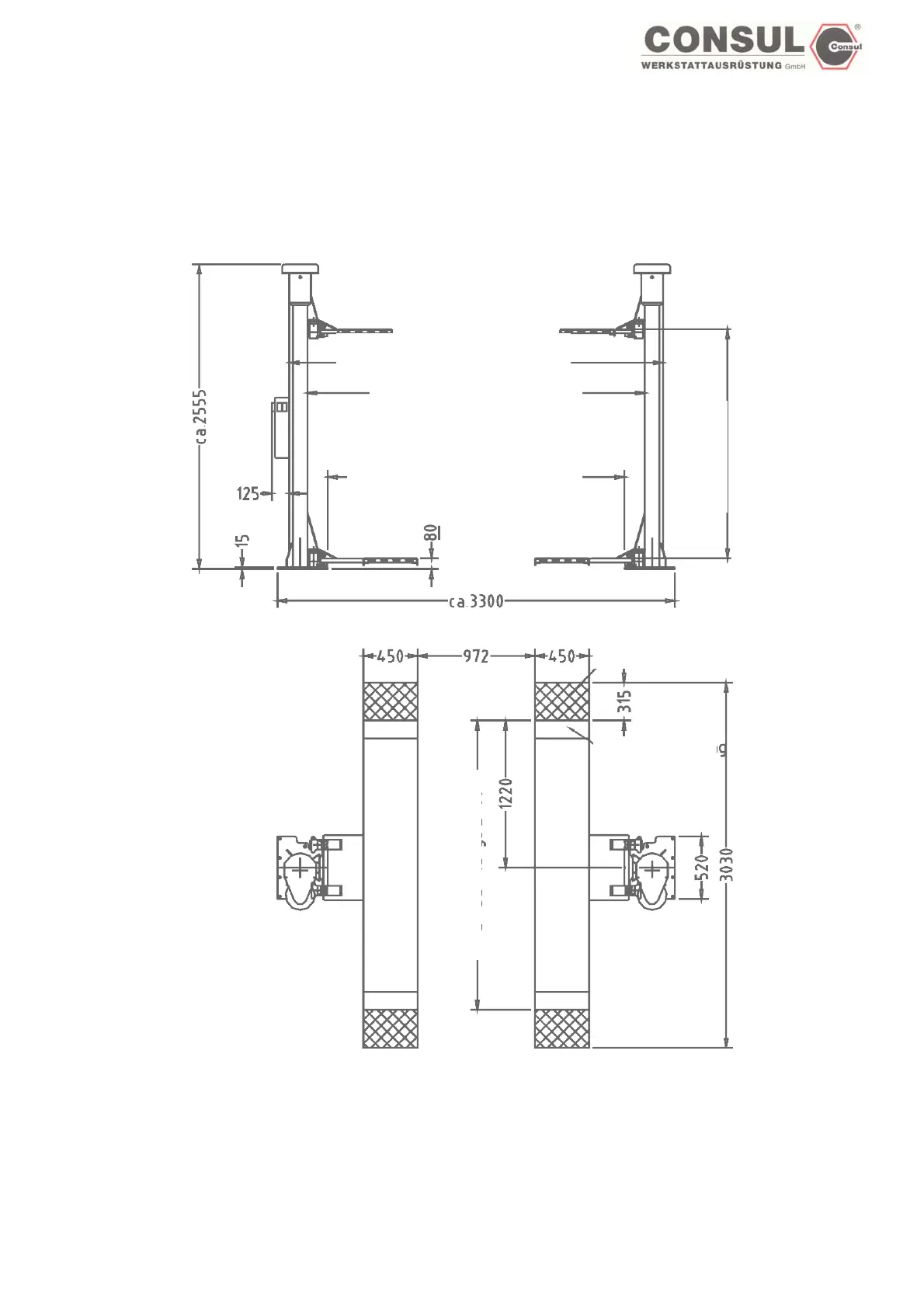

Post-Lift
Consul 2.25 RMC H339
2-Post-Lift 2.25 RMC Modula with frame
Distance between the
columns 2800
Dimension outside coulmns
3100
Strke 1900
Max. vehicle width 2460
ramp
Safety
bar
Platform lenght 2400
Accessory:
see catalogue!
Subject to change without prior notice !
Page 16
