OPERATING & INSTALLATION INSTRUCTION 2-POST-LIFT

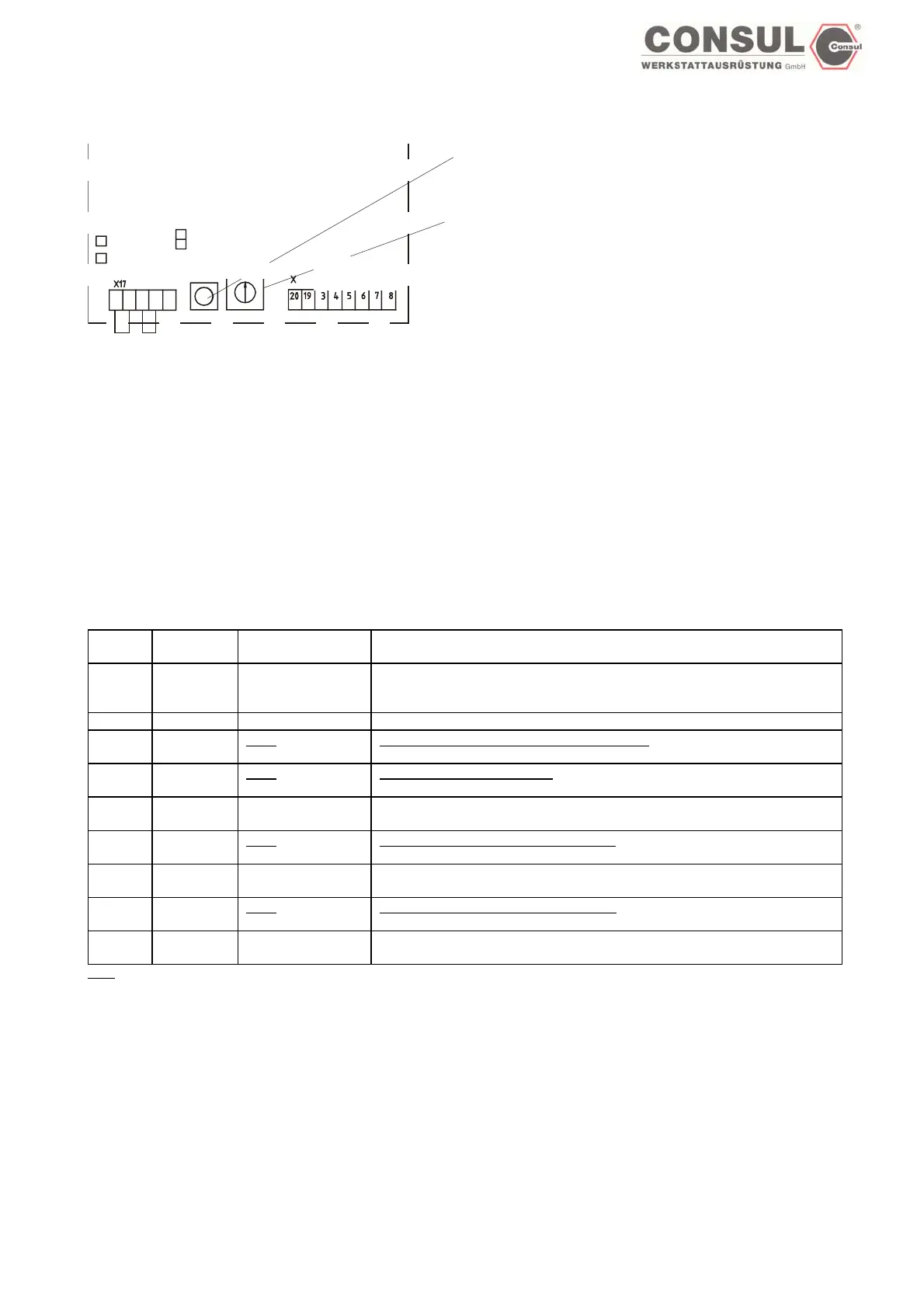

Switches on the main board for EL lifts
Switch on the electronic-platine for initial installations and programmation
SGMX 2
LED Motor 2
LED Motor 1
Setting
Codi
Scha
Enter
Ta s t e
er-
lter
Enter-button
Code switch
(rotate with a small screwdriver)
Code
switch
Enter
button
N
ot
plugged
Green
White
Brown
Green
White
brown
Switch position: Function:
0 Normal drive mode
1 Lower limit of carriage
2 Syncrhonisation of carriages
3 Upper limit of carriage
4 Operate mode master column only
5 Operate mode slave column only
6 Security stop and acoustic signal
7* Potentiometer test mode
8* Connection, signal and EEPROM test mode
9* Fault test mode (spezial test from manufacturer)
*If you encounter any fault during these test modes, this fault will be stored on the EEPROM . The main board cannot be adjusted to
normal mode in this case. If normal drive mode is selected, and a fault occurs during test mode, both red and green LED’s blink. To
ovecame this situation, change defective parts or run test mode again.
Programming (Initial installation of the potentiometer already done)
Step: Switch
position:
Enter button: Function:
A 4 push operate mode master column only
lower the carriage til approx. 10 mm over the ground and 10 mm overrun
reserve
B 5 push operate mode slave column only (as step A)
C 1 push
push
set lower limit after success of step A and B
save mode
D 2 push
push
synchronisation of carriages
save mode
E 0 push normal operation mode (both LED are red)
move both carriages til a height of max.. 1900 mm - evt. lower.
F 3 push
push
set upper limit after success of step E.
save mode
G 0 push normal operation mode (both LED are red)
lower lift to a min. 200 mm above ground in order to set safety stop
H 6 push
push
set safety stop after success of step G
save mode
I 0 push normal operation mode (both LED are red)
programming finished.
push = both LED are green Should be the above disconnecting point not reached,
push = both LED are blinking green continue in individual drive with position 4 and 5
Attention: no end stops !
Page 46
