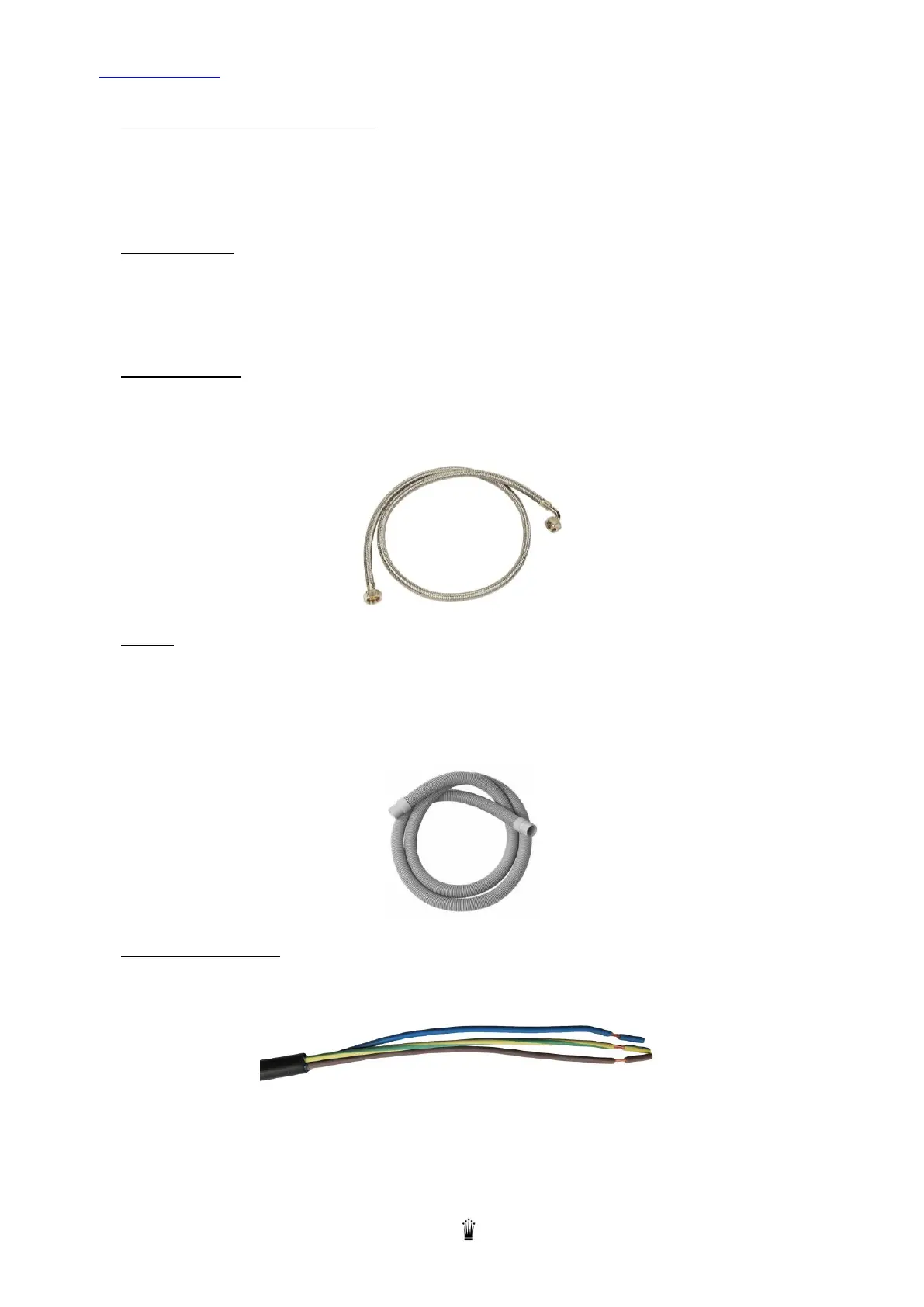

4 INSTALLATION
STANDBY (STANDBY = 2 MONTHS):
➢ The first thing to do is to test your machine in a lab.
➢ If the machine stops running for a long time, you could have sediment in some places.
➢ More precisely in small area like the spray nozzle.
PROTECTIONS:
➢ It is necessary to place before the machine:
o A water shut off valve.
o An electrical protection standard, suitable for voltage and power consumption.
WATER SUPPLY:
➢ Recommended operating pressure from 0,15 MPa to 0,6 MPa.
➢ Water connection pin 3/8"
➢ The water supply pipes must resist to 145 Psi / 1 MPa.
DRAIN:
➢ Without pressure.
➢ A tip on the outlet of the machine and a pipe is supplied with the machine.
➢ Ensure a connection that causes no risk of fluid return, and ensure good drainage:
▪ The drainpipe must be located lower than the machine.
▪ Do not create a bend in the exhaust tube.
SUPPLYING VOLTAGE
➢ 230V – 50/60Hz Single phase
