7.3 LOG PLACEMENT
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
76.1A
PHAZER
TM
logs and glowing embers exclusive to Continental Fireplaces, provide a unique and realistic
glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a
maximum glowing effect.
Log colours may vary. During the initial use of the fi replace, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.
TAB
SIDEVIEW

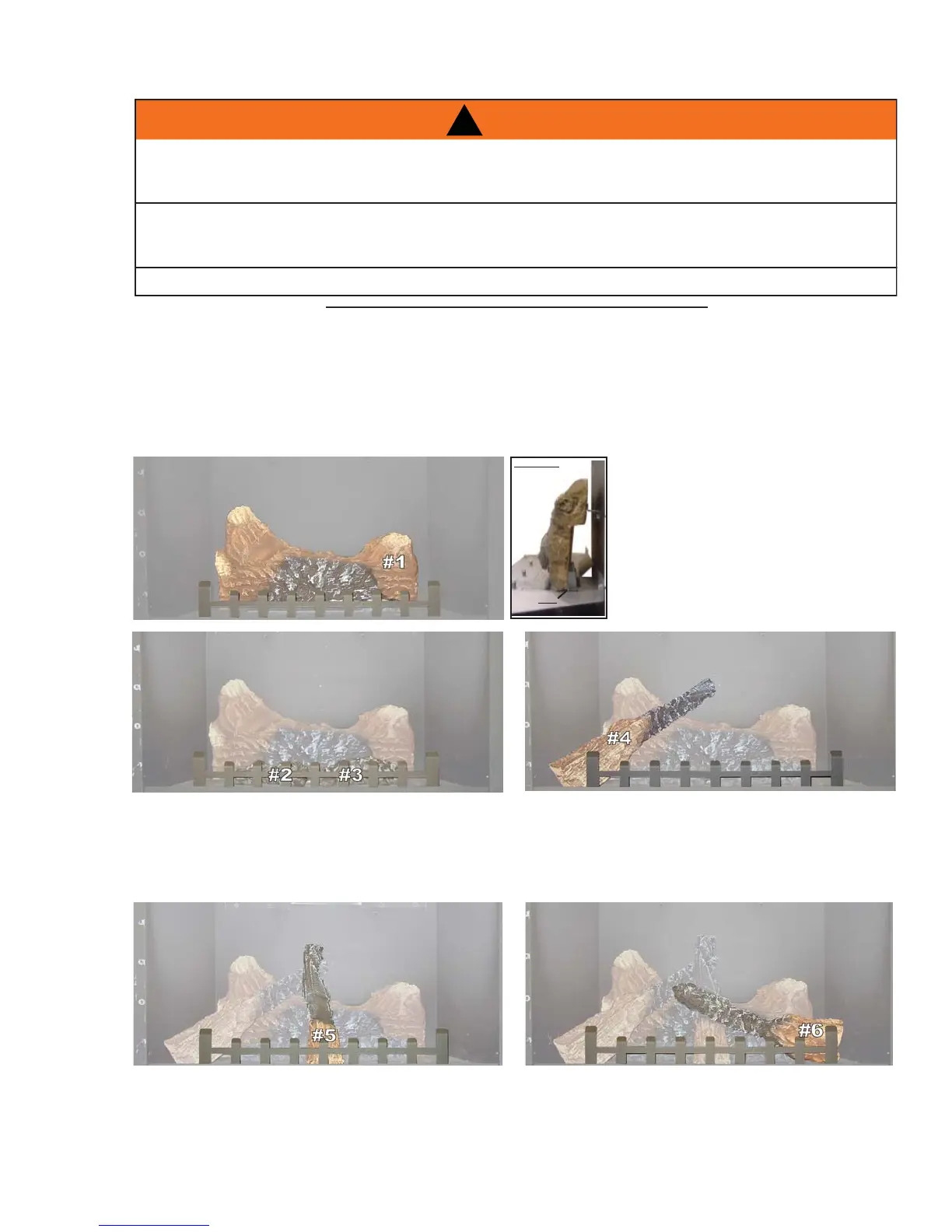

A. Place the back log (#1) onto
the log support tray and in front
of the tabs. The tabs maintain
an air space between the log
and fi rebox back to facilitate
combustion air fl ow. Ensure that
the back of the log rests against
the brackets on the back wall of
the fi rebox.
B. Move the two small logs (#2 & #3) into
position, lining up the studs located on the
burner with the holes on the bottom of the
logs. Ensure that the small logs sit fl at on the
burner.
C. Place the bottom of the left crossover log
(#4) against the left fi rebox side and pulled
forward to the grate.
The top of the log should rest in the pocket
on the back log.
D. Position the base end of the center log (#5)
against the middle grate post with the other
end of the log resting in the pocket of the left
crossover log.
E. Place the bottom of the right crossover log
(#6) against the right fi rebox side and pulled
forward to the grate. The top of the log should
rest in the pocket provided on the center log
(#5).
