Control Techniques MiniAx 60 x 5/10 User Manual

27

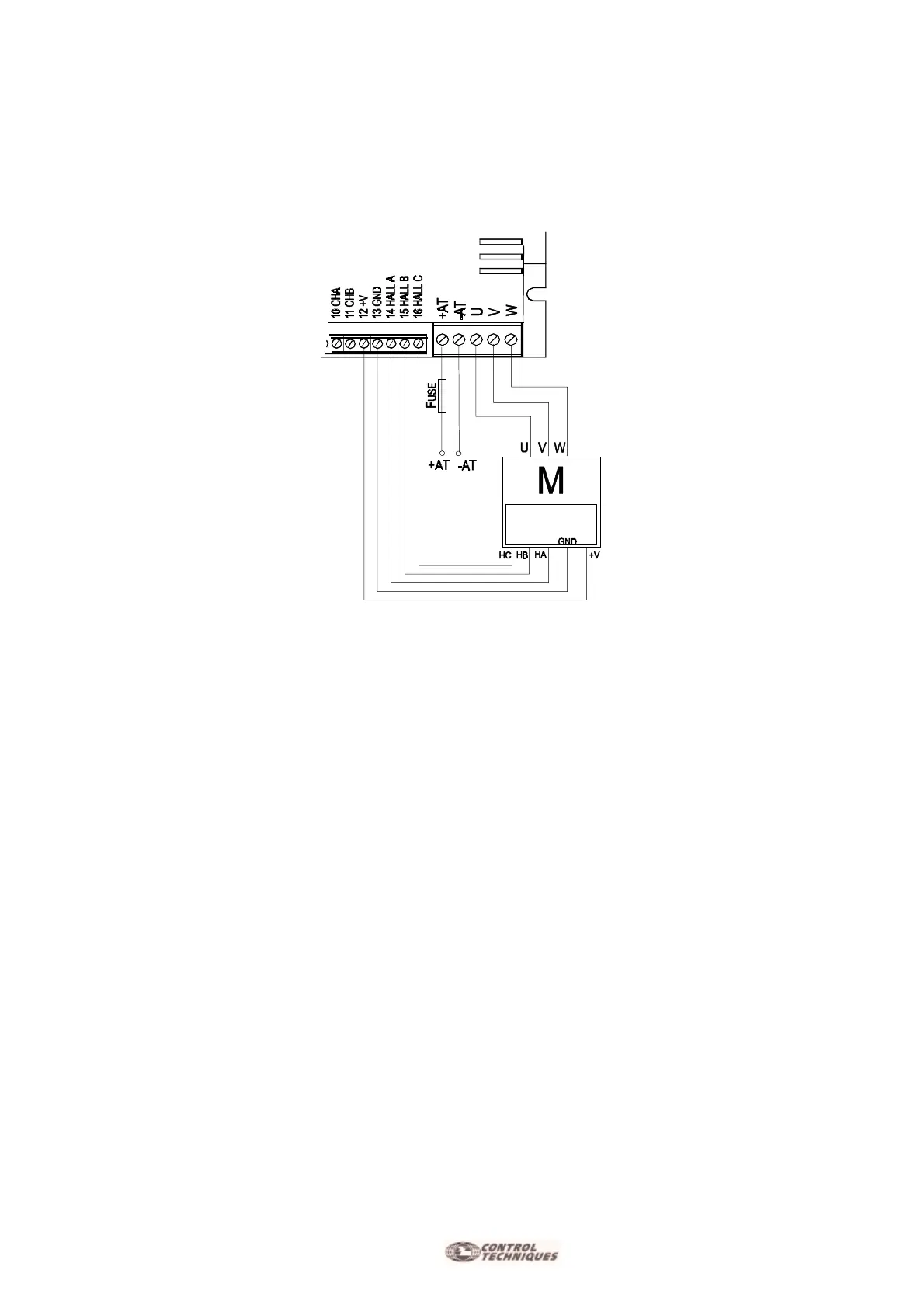

Hall Signal wiring (ONLY)
A)The following design shows connections to the drive using Hall Effect Signals (only).
Such signals are used for processing current and for motor speed regulation.
The field of regulation is inferior in respect to Encoder + Hall, but sufficient for many applications.
The Dynamic function is good from 300RPM up to max. speed. The speed is not affected of motor R*I drop.
Encoder with
Hall sensors
