174 Unidrive User Guide
www.controltechniques.com Issue Number: 9

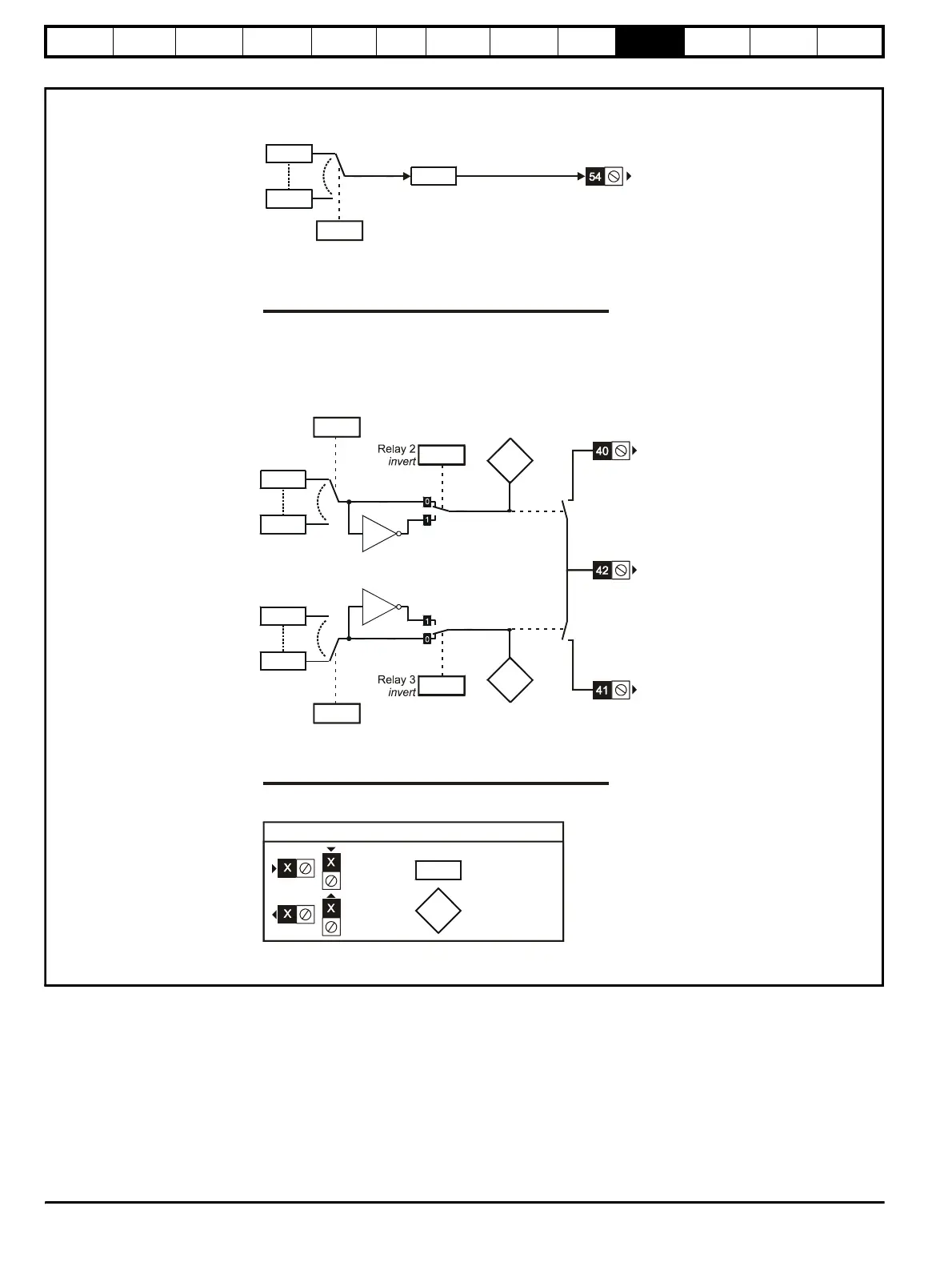

Figure 10-23 Menu 16 UD50 logic diagram, part 4
0.XX
0.XX
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
16.20
Analog output 3
scaling
66
Analog output 3
Any variable
parameter
Analog output 3
source parameter
??.??
??.??
16.19
Any bit
parameter
??.??
??.??
x(-1)
16.39
16.19
Relay 3
source parameter
16.38
16.03
Relay 3
indicator
66
Relay for UD50
Any bit
parameter
??.??
??.??
x(-1)
16.37
16.19
Relay 2
source parameter
16.36
16.02
Relay 2
indicator
66
66
The parameters are all shown at their default settin
g
s
