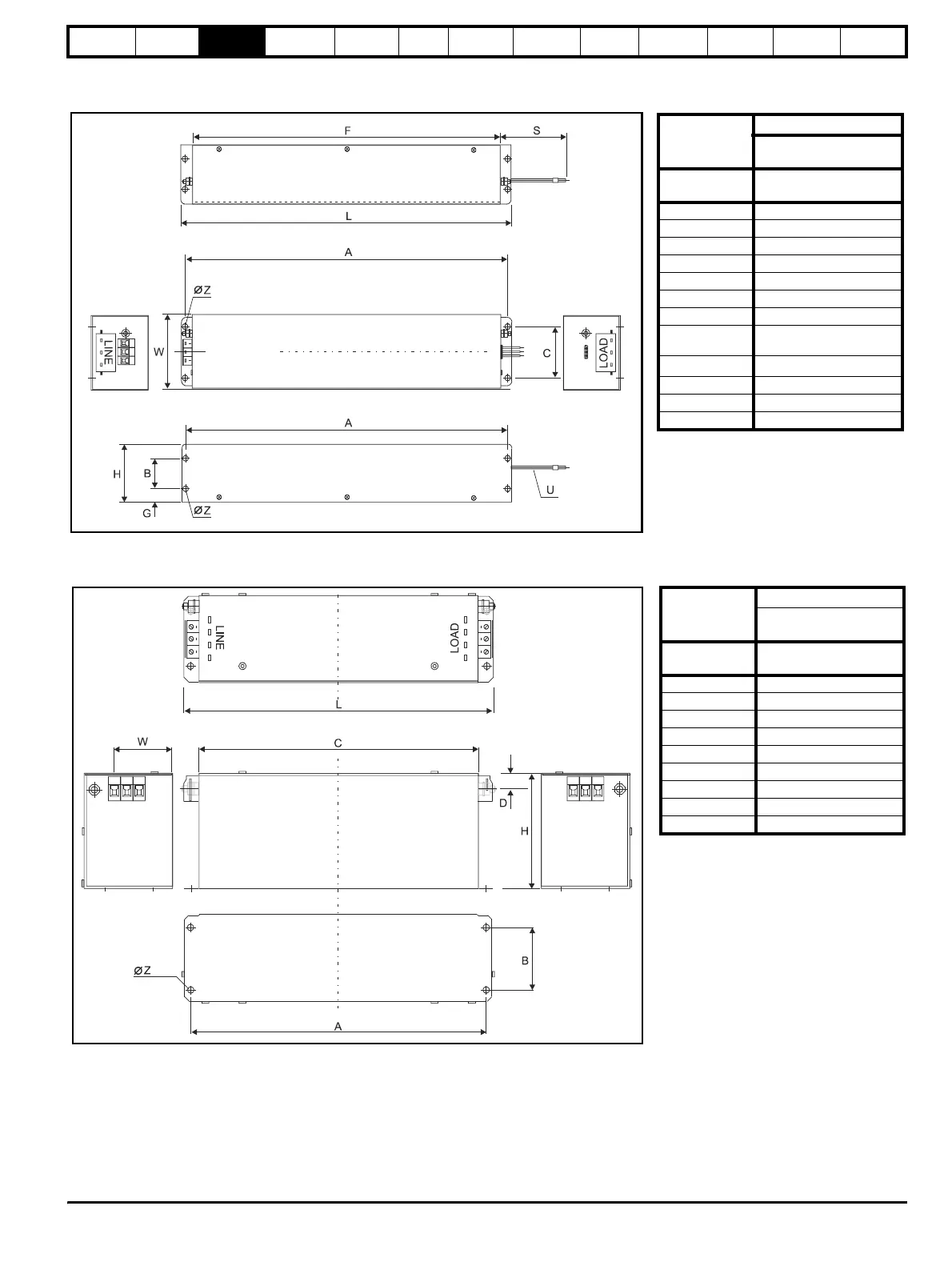

3.11.2 Unidrive size 2 filters
Dimension
RFI Filter
4200-6109
FS5112-16-07
Model
UNI2201 to UNI2202
UNI2401
A 380mm (14.961in)
B 35mm (1.378in)
C 60mm (2.362in)
F 364mm (14.331in)
G 16.5mm (0.650in)
H 68mm (2.677in)
L 390mm (15.354in)
S
300mm ±5mm
(11.811in ±0.197in)
U
3x 2.5mm
2
(AWG14)
W 85mm (3.346in)
Z 5.5mm (0.217in)
Ground Terminal M5
Figure 3-23 Unidrive size 2 (UNI2201 to UNI2202 and UNI2401) bookcase mounted filter
Dimension
RFI Filter
4200-6114
FS5113-25-29
Model
UNI2203
UNI2402 to UNI2403
A 245mm (9.646in)
B 45mm (1.772in)
C 230mm (9.055in)
D 13mm (0.512in)
H 95mm (3.740in)
L 255mm (10.039in)
W 73mm (2.874in)
Z 4.5mm (0.177in)
Ground Terminal M5
Figure 3-24 Unidrive size 2 (UNI2203, and UNI2402 to UNI2403) bookcase mounted filter
