Unidrive
LV
model sizes 1 to 3 Installation Guide
Issue code: uliu1
2-16 Installing the Drive
2.5 Installing the Drive
and RFI filter
Warning
Lifting the Drive
The weight of model size 3 is
22kg (49 lbs). Use appropriate
safeguards when lifting this
model.
Removing the terminal covers
The Drive is fitted with one or two terminal covers
depending on the model size. When model sizes 1
and 3 are through-panel mounted, the terminal
cover(s) must first be removed in order for access
to be gained to the lower mounting holes.

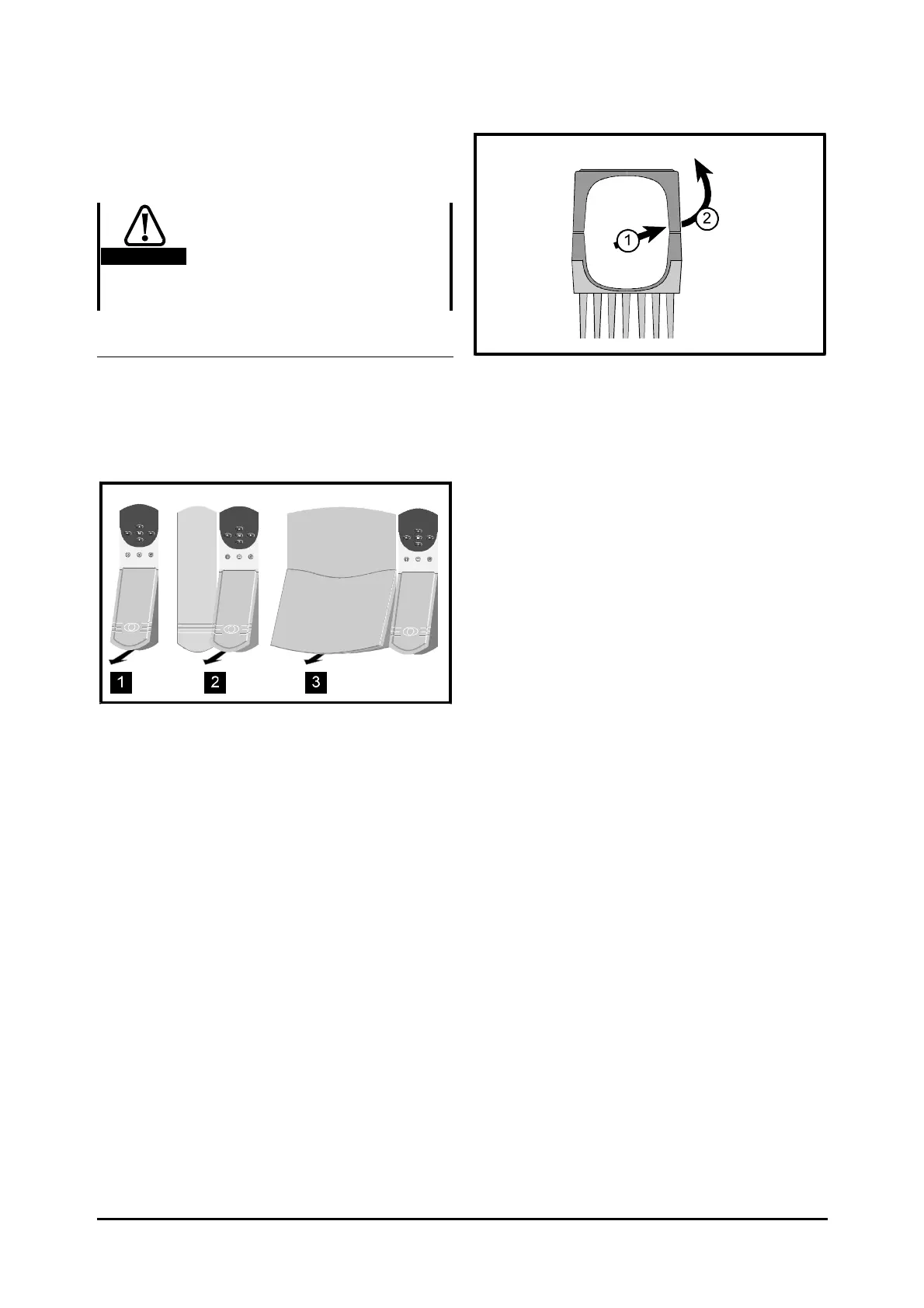

Figure 2–7 Removing the terminal covers
The terminal cover(s) of all models must be
removed for access to the electrical connectors.
Figure 2–8 View from the underside showing
how a terminal cover is removed
from the Drive
Remove terminal covers, as follows:
1. Working on either side of the terminal cover,
push the inner edge of the cover firmly outward
until it becomes unclipped.
2. Swing the side of the cover outward and
upward until the remaining clips become
released.
3. Remove the gland plate (you may need to
replace it later).
