Installing the Drive 2-23

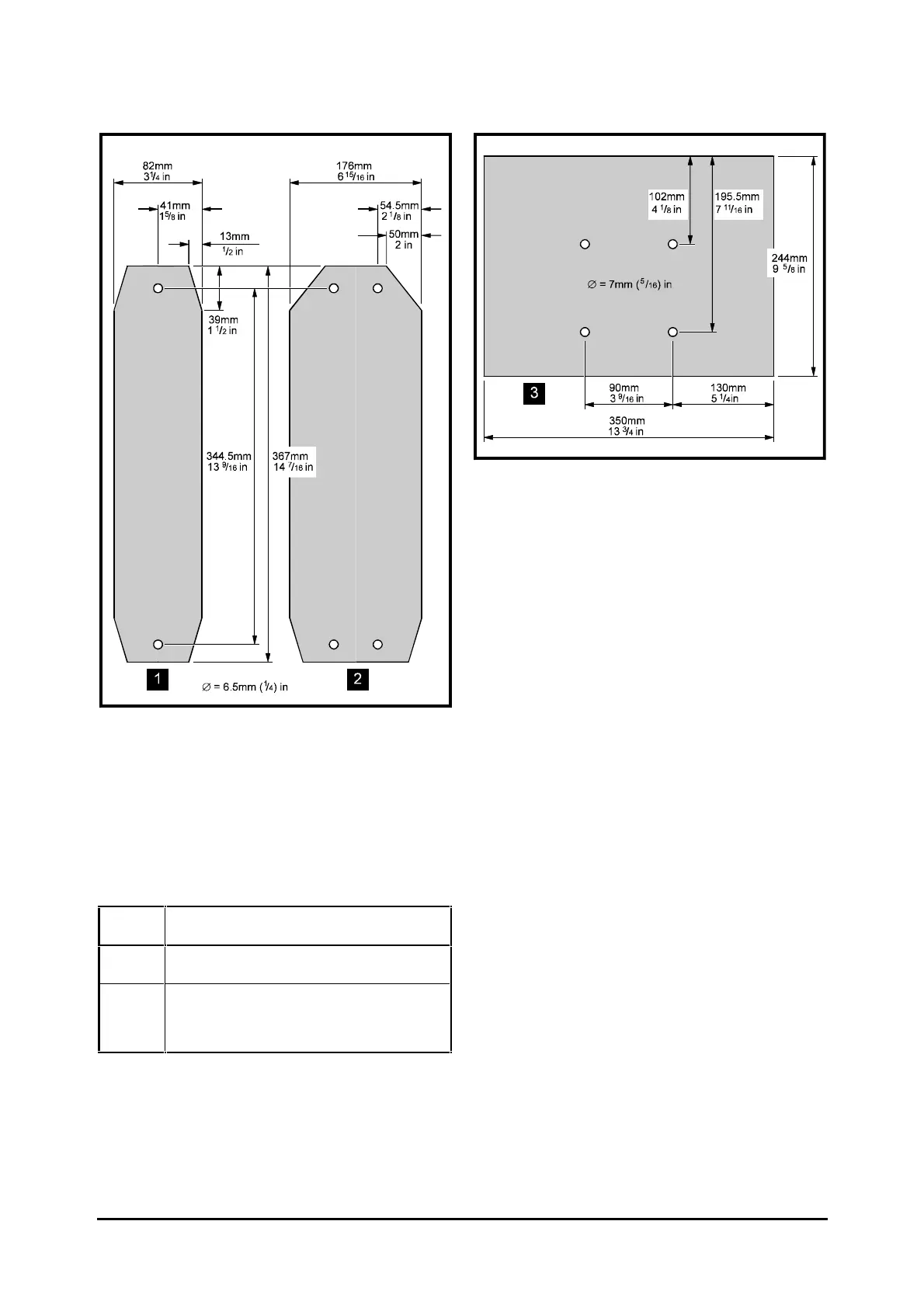

Figure 2–15 Dimensions for the fabrication
of baffle plates for model
sizes 1 and 2
Attaching a fabricated baffle plate to
the heatsink
Table 2–12 Methods of attaching
the baffle plate
Model
size
Method of attachment
1
2
Use the surface mounting brackets.
3 Use M6 x 12mm max (or equivalent)
thread-forming screws to screw into the holes
in the heatsink, or tap the holes to a suitable
thread size.
Figure 2–16 Dimensions for the fabrication
of baffle plates for model size 3
