STEP 3: Mount the drive
Ambient temperature operating range:
- 20 °C to 55 °C (- 4 °F to 131 °F).
Output current derating may be required at ambient temperatures >40 °C (104 °F). Refer to the relevant Power
Installation Guide (section 5.1). For UL installations, the maximum ambient temperature permitted is 50 °C (122 °F)
with any specified derating applied.
The drive can be screwed on a wall or Through-panel mounted (Refer to chapter 3 in the Power Installation Guide).
Table 3-1 highlights the clearances.

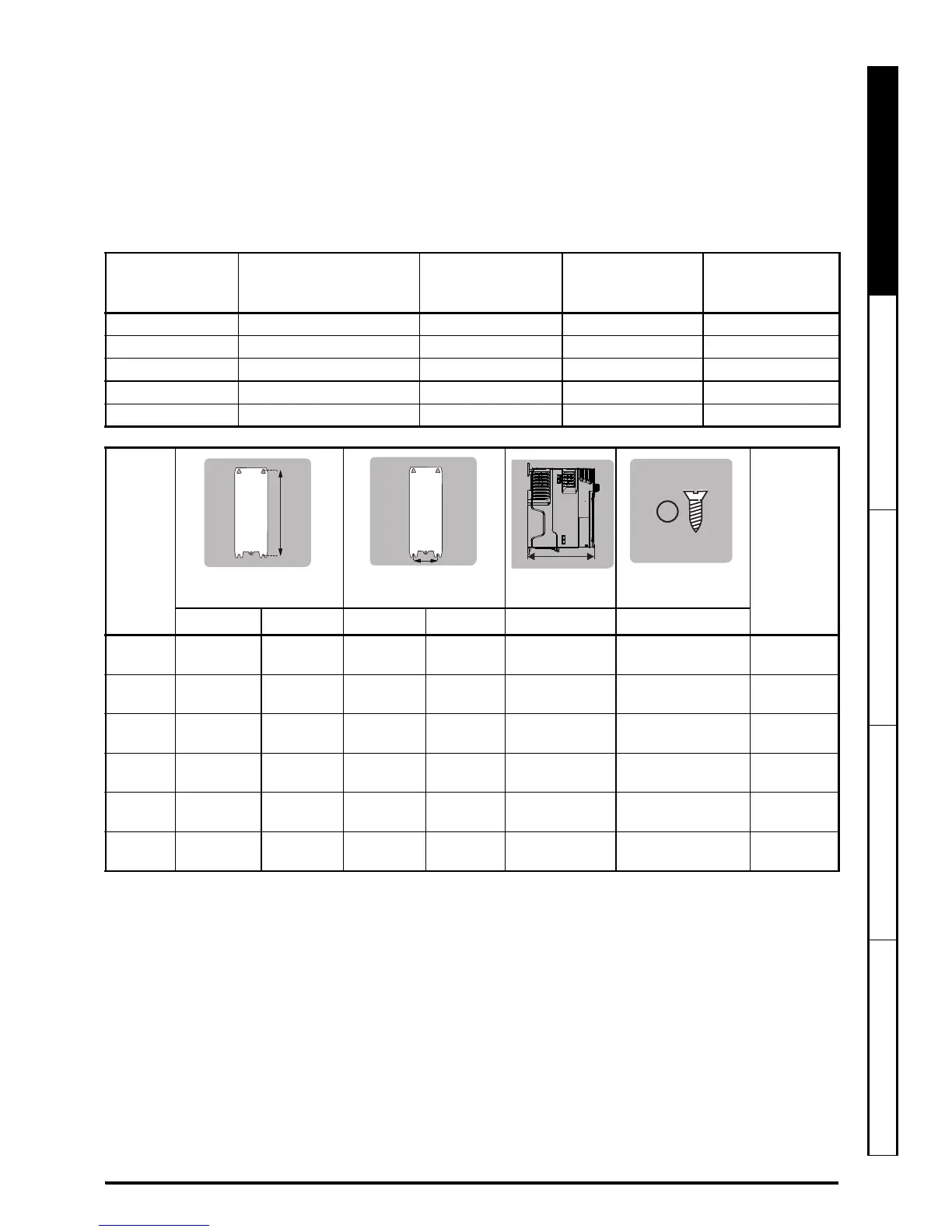

Table 3-1 Recommended spacing
* The Speed Ref Potentiometer adds an additional 11 mm (0.43 in) to the overall depth on a Unidrive M201 only.
STEP 4: Fit cable ground bracket
The cable bracket helps you to organise the cables once they have been connected to the drive.The bracket is
used to clamp the shield of the cables to facilitate EMC compliance (refer to Figure 7-1).
Frame size
Spacing between drive
and enclosure /
EMC filter
Spacing between
drives
Spacing above
drive
Spacing below
drive
5 30 mm (1.18 in) 0 mm (0.00 in) 100 mm (4.0 in) 100 mm (4.0 in)
6 30 mm (1.18 in) 0 mm (0.00 in) 100 mm (4.0 in) 100 mm (4.0 in)
7 45 mm (1.77 in) 30 mm (1.18 in) 60 mm (2.37 in) 100 mm (4.0 in)
8 45 mm (1.77 in) 30 mm (1.18 in) 60 mm (2.37 in) 100 mm (4.0 in)
9 45 mm (1.77 in) 60 mm (2.37 in) 60 mm (2.37 in) 100 mm (4.0 in)
Frame Weight
HW
D
*
Ø
Mounting Overall Mounting Overall Overall Diameter
5
375 mm
(14.76 in)
391 mm
(15.39 in)
106 mm
(4.17 in)
143 mm
(5.63 in)
200 mm
(7.87 in)
6.5 mm (0.26 in)
7.4 kg
(16.3 Ib)
6
378 mm
(14.88 in)
391 mm
(15.39 in)
196 mm
(7.72 in)
210 mm
(8.27 in)
227 mm
(8.94 in)
7.0 mm (0.28 in)
14 kg
(30.9 Ib)
7
538 mm
(21.18 in)
557 mm
(21.93 in)
220 mm
(8.66 in)
270 mm
(10.63 in)
280 mm
(11.02 in)
9.0 mm (0.35 in)
28 kg
(61.70 Ib)
8
784 mm
(30.87 in)
804 mm
(31.65 in)
259 mm
(10.20 in)
310 mm
(12.21 in)
290 mm
(11.42 in)
9.0 mm (0.35 in)
52 kg
(114.6 Ib)
9E
1051 mm
(41.38 in)
1069 mm
(42.09 in)
259 mm
(10.20 in)
310 mm
(12.21 in)
290 mm
(11.42 in)
9.0 mm (0.35 in)
46 kg
(101.4 Ib)
9A
1090 mm
(42.91 in)
1108 mm
(43.62 in)
259 mm
(10.20 in)
310 mm
(12.21 in)
290 mm
(11.42 in)
9.0 mm (0.35 in)
66.5 kg
(146.6 Ib)
