AUTO START/STOP OPERATION
1) Engine Start - Turn key to AUTO position

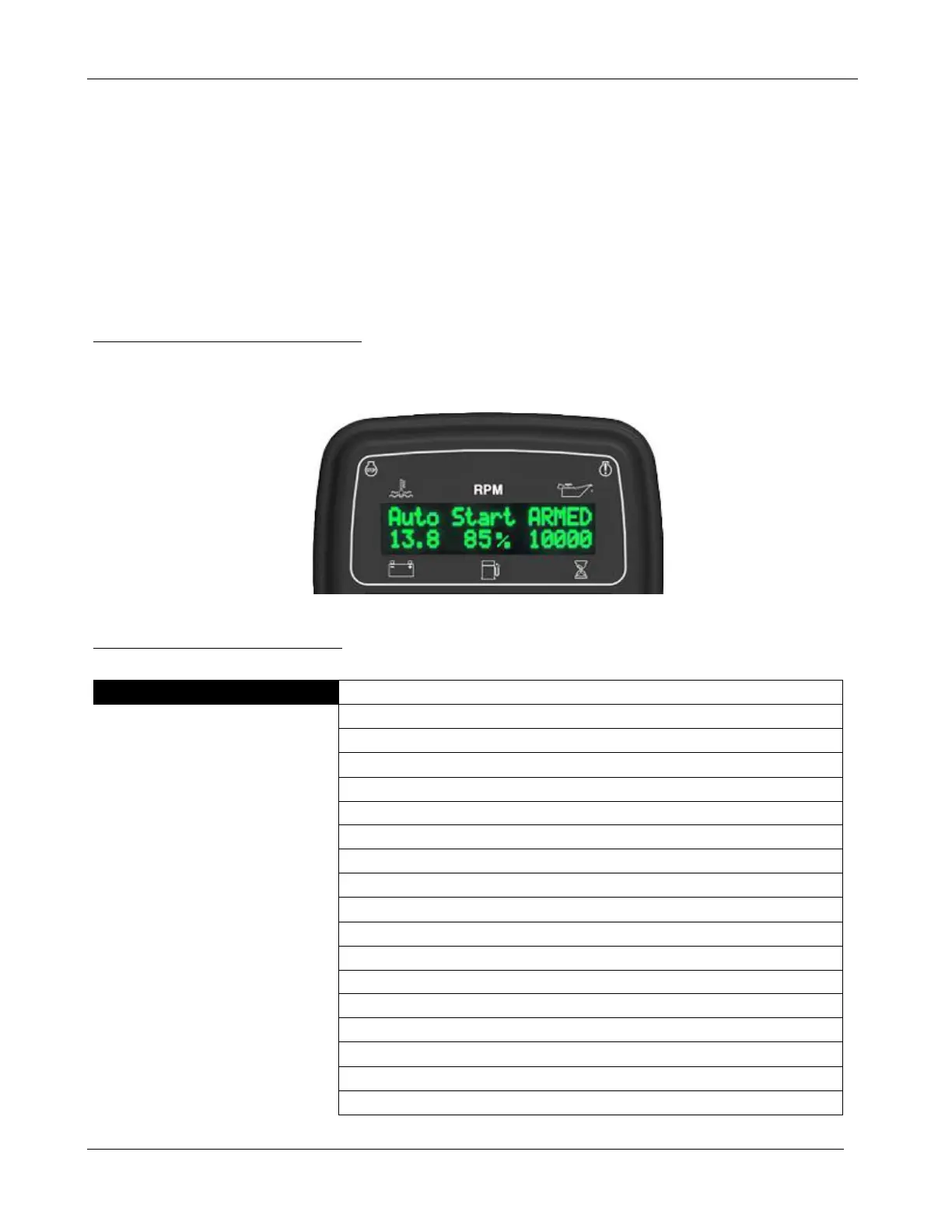

Engine start/stop based on auto start/stop settings. Panel display shows “Auto Start ARMED”
message. The engine starts when the remote start input wire is grounded. The engine stops
with the remote start wire is not grounded.
Automatic Throttle Control
With the key in the AUTO position, automatic throttle control is active and the panel manages
engine speed. Instructions on automatic start configurations are listed below.
Auto Operation Settings
Auto Start Configuration
Auto Start Time Delay Selection (Default = 0:10)
Preheat Time Selection (Default = 0:00)
Crank Time Selection (Default = 0:10)
Rest Time Selection (Default = 0:10)
Warm Up Speed Selection (Default = 800 RPM)
Warm Up Time Selection (Default = 0:10)
Operate Speed Selection (Default = 1800 RPM)
Cool Down Speed Selection (Default = 650 RPM)
Cool Down Time Selection (Default = 0:10)
Crank Cycles Selection (Default = 5)
Fault Bypass Period Selection (Default = 0:10)
Crank Hold Delay Selection (Default = 0 TSec)
Crank Release Speed Selection (Default = 400 RPM)
Recharge Monitor On/Off (Default = Off)
Recharge Voltage Selection (Default = 119 Vx10)
Recharge Delay Selection (Default = 60 Sec)
Recharge Run Time Selection (Default = 15 Min)
Next Recharge Time Interval Selection (Default = 45 Min)
