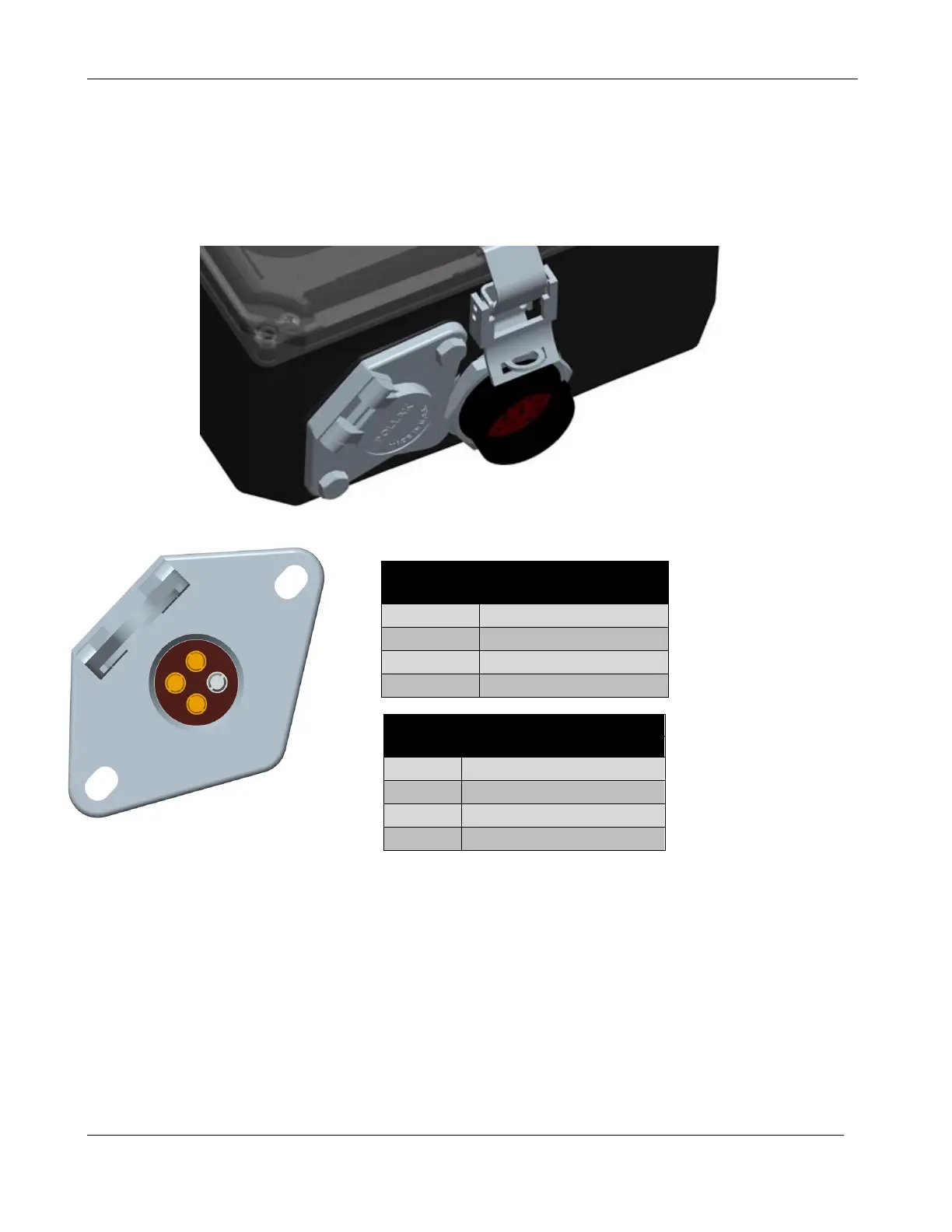

FLOAT CONNECTOR
The controller has a four pin, single / dual float connector integrated to the bottom of the control
panel.
Note: Must use normally open contacts of the floats. Controller will start engine when floats are
closed. Engine will stop upon float circuit opening.
SINGLE FLOAT
Pin
Function
1
Float Common
2
N/A
3
Float Normally Open
4
N/A
DUAL FLOAT
Pin
Function
1
Low Float Common
2
Low Float Normally Open
3
High Float Normally Open
4
High Float Common
1
2
3
4
Pin
3
Pin
2
Pin
4
Pin
1
