CONTROLS, INCORPORATED
C O N T R O L S Y S T E M S & S O L U T I O N S
- 6 -

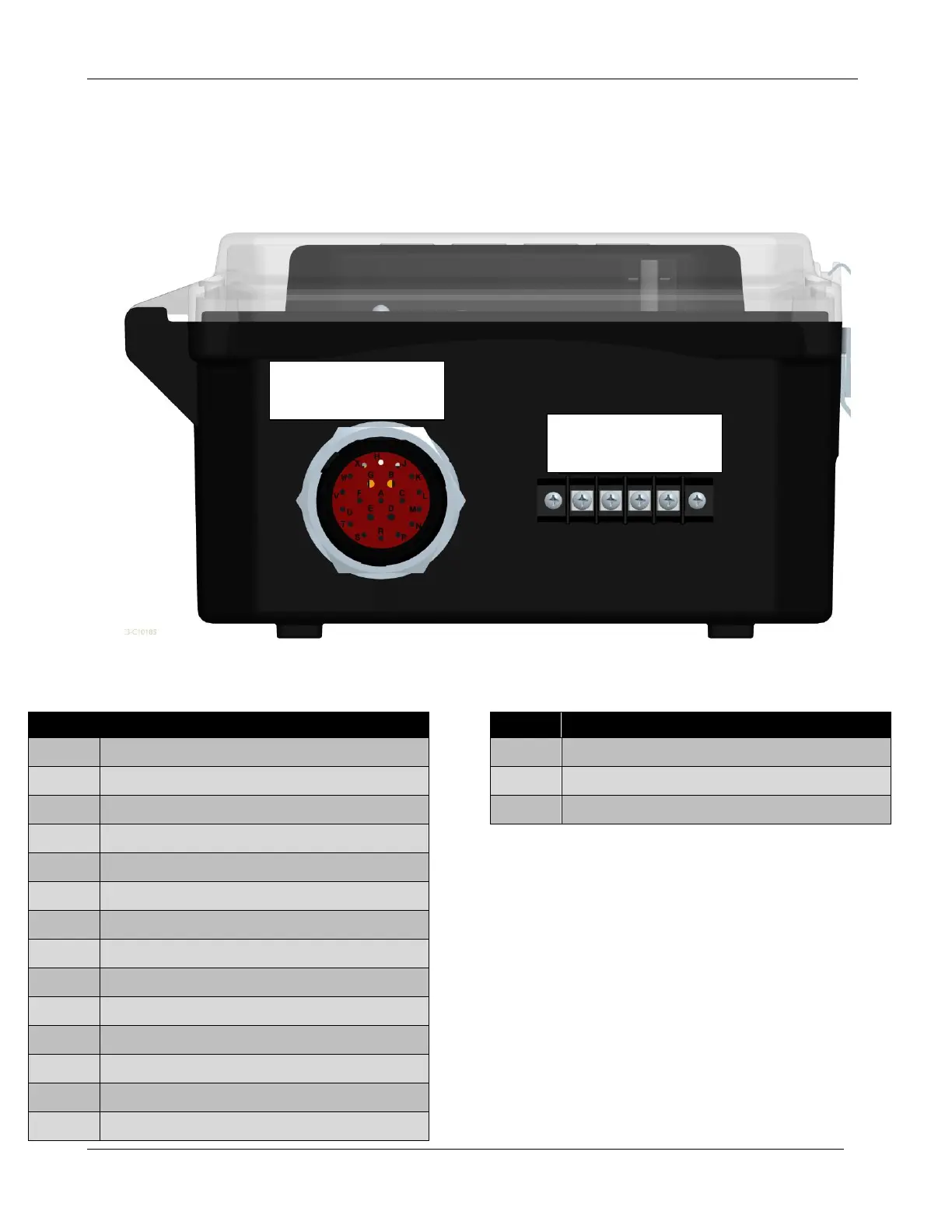

PANEL CONNECTORS
Engine Harness Connector –Deutsch 21 pin (HDP24-24-21PE)
21 Pin Connector 3 Pin Customer Connector
Pin
Function
B
Battery Positive
E
Battery Negative
G
Key On Power
D
Crank Signal
V
J1939 High
U
J1939 Low
J
Alternator Excite
L
Analog Throttle Emulator
M
Analog Throttle Emulator
C
Analog Throttle Emulator
R
Digital Throttle Emulator
S
Digital Throttle Emulator
P
Fuel Level Sender
X
Digital Input 1
Pin
Function
CCA
Return from Shutdown System
CCB
B+ to Shutdown System
CCC
B+ to Auxiliary Fuel Pump
Engine Harness
Connector (21 Pin)
Accessory
Connector (3 Pin)
NOTE: CCA to CCB Circuit must
be closed to start engine.
