Head Support Depth Adjustment
The Head Support can be adjusted forward or backward by 0.6” (1.5 cm)
increments to provide a better t and added protection for the occupant (Fig. A).
To Adjust: Remove screws on each side of the head support with a Phillips
screwdriver. Move the head support to selected position, and reinsert screws
(Figs. B & C).
Head Support Contour Adjustment
The head support can be contoured to better t and
protect the head. This adjustment must be performed
on limited bases (to not weaken the head support
structure) by the dealer.
Head Pillow Adjustment
The Head Pillow provides added comfort and
positioning.
To reposition: Grasp the head pillow and pull it away
from the head support. Place the head pillow where
desired and press down to afx Velcro
®
.

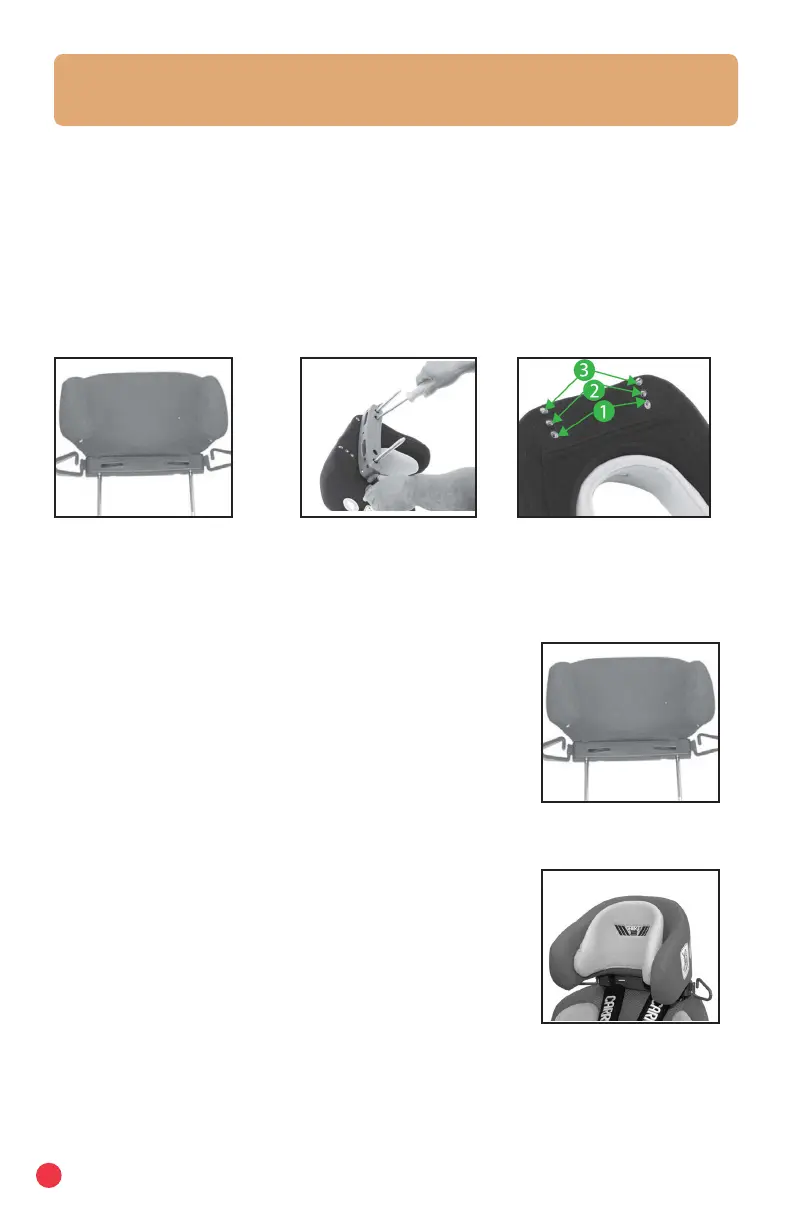

Fig. A Fig. B Fig. C (Use holes 1,2 or
3 on both sides)
Head Support
