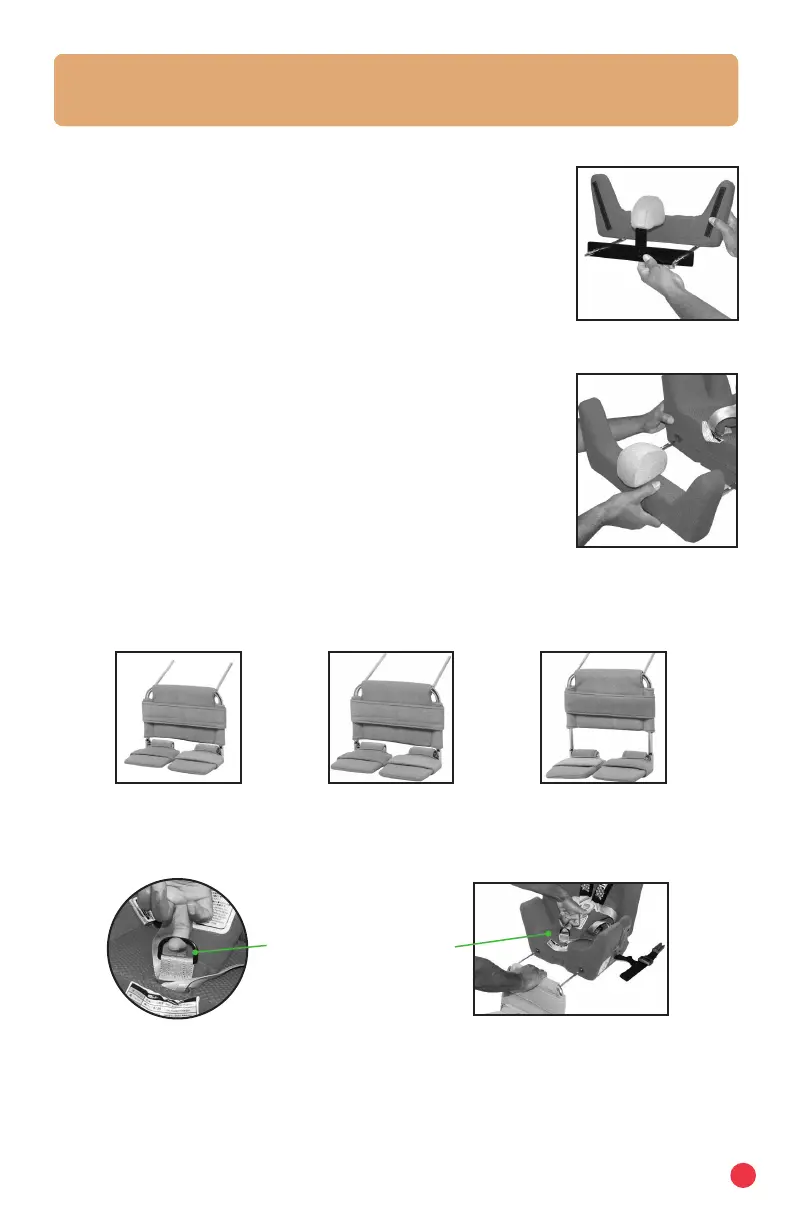

Convaid Carrot 3 - Pommel; Pommel Attachment; Footrest Adjustment (Small; Medium; Large)

27
Footrest (OPTIONAL ACCESSORY)
Footrests are available in three sizes - small, medium, and large.
Small 10” - 12” Medium 12” - 16” Large 14” - 18”
Seat Depth Release Lever
Accessories
Pommel (OPTIONAL ACCESSORY)
A rodded seat extension is required to attach the pommel
to the Carrot 3.
The Pommel separates thighs to improve hip alignment
and stabilize sitting posture
Pommel Attachment
To attach the pommel, insert the seat extension rods
through the holes on the pommel’s attachment bracket
(Fig. A), and into the holes on the front of the Carrot’s
seat. (Fig. B)
Fig. A
Fig. B
Footrest Depth Adjustment: Pull and hold the black “D” shaped ring - Seat
Depth Release Lever and adjust to desired position. (Fig. C and D)
Footrest Length Adjustment: Using a ½” wrench, loosen bolts on the bottom of
the side support tubes, move footplate to desired position and tighten. Repeat on
opposite side.
Fig. C Fig. D
