Shoulder Support
Harness Strap
Release Lever
(Red)
Harness Strap Adjustment

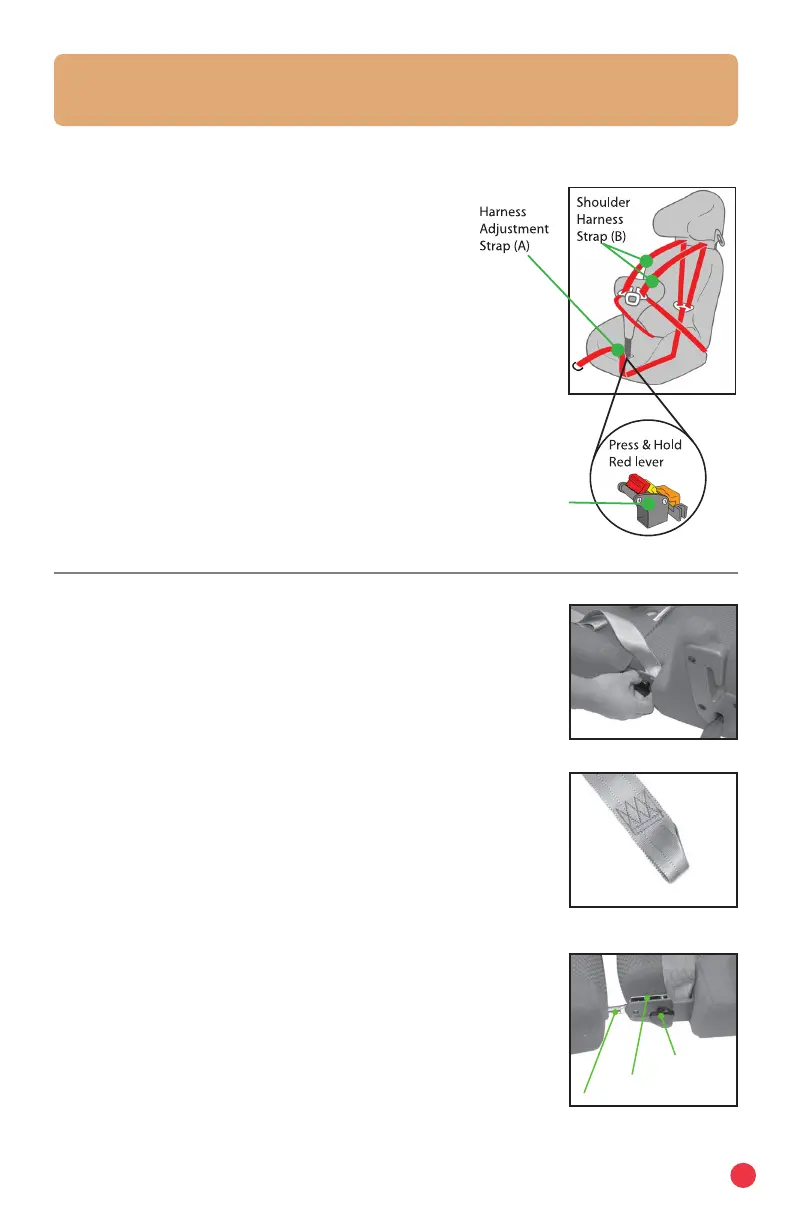

The Harness Strap comfortably positions the
child in place.
To tighten the shoulder harness strap, pull on the
harness adjustment strap (Fig. A).
To loosen the harness strap, press and hold the
harness release lever (Red), while pulling the
shoulder harness strap (Fig. B).
NOTE:
Do not pull on the padded covers or chest
support pad when loosening the harness strap.
Harness Strap Length Adjustment
If the backrest height is extended or the shoulder
protector wings are installed, the harness belt may
need to lengthened.
1. Turn knob counter clockwise and remove
(Fig. A).
2. Separate the Carrot seat from the back.
3. Pull harness strap off of seat rod.
4. Replace harness strap utilizing the lower loop.
Before replacing, fold the webbing loop inward
so the attachment area is not covered by the
strap (Fig. B).
5. Reattach knob. It is very important to make
sure that the backrest rod is in between
the seat’s rod and gray plastic cover before
reassembling (Fig. C).
Fig. C
Fig. B
Fig. A
backrest rod
seat rod
cover
Fig. A
Fig. B
