GLASS LID ASSEMBLY
**Your Pressure Cooker is equipped with
a Tempered Glass Lid (21) that can be
used with the SLOW COOK function.
Please do not use this Glass Lid (21) with
any other functions on this Pressure
Cooker.
Assembly of the Knob on the Glass Lid
will require a Phillips Screwdriver (not
included).

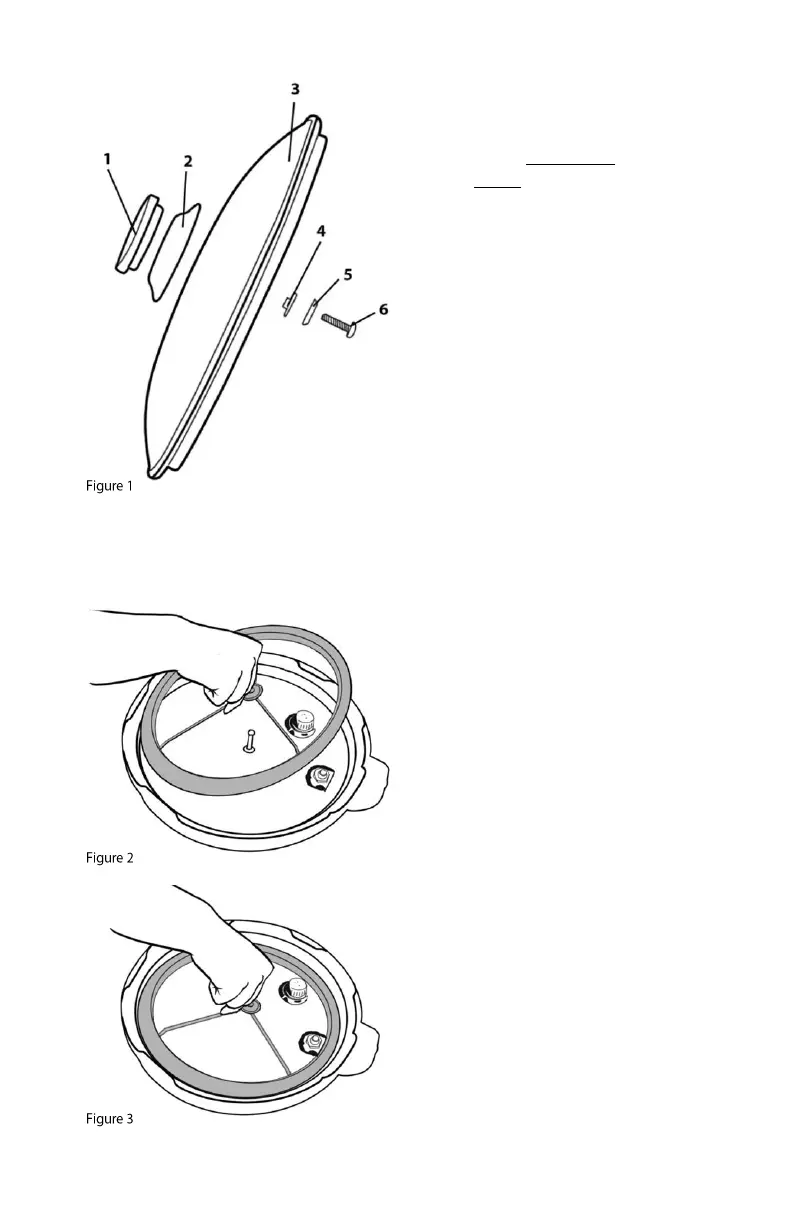

Follow the diagram (Figure 1) to
assemble the knob on the Glass Lid (21).
1. Handle
2. Handle Base
3. Glass Lid Body
4. Silicon Gasket
5. Gasket
6. M4 Screw
RUBBER SEAL RING ASSEMBLY
Always ensure the Rubber Seal Ring (18)
is securely fitted onto the metal Y-
shaped ring in the interior of the Lid (2).
Make sure the crease in the Rubber Seal
Ring (18) meets with the outside of the
Y- Ring all the way around. Then place
the Y-Ring and Rubber Seal Ring (18)
back into the Lid (2) making sure the
hole in the center of the Y-Ring's cross-
section is lined up with the metal pin in
the center of the Lid (2). Press down
firmly until the Y-Ring is secured onto
the Lid (2) (Figures 2-3).
