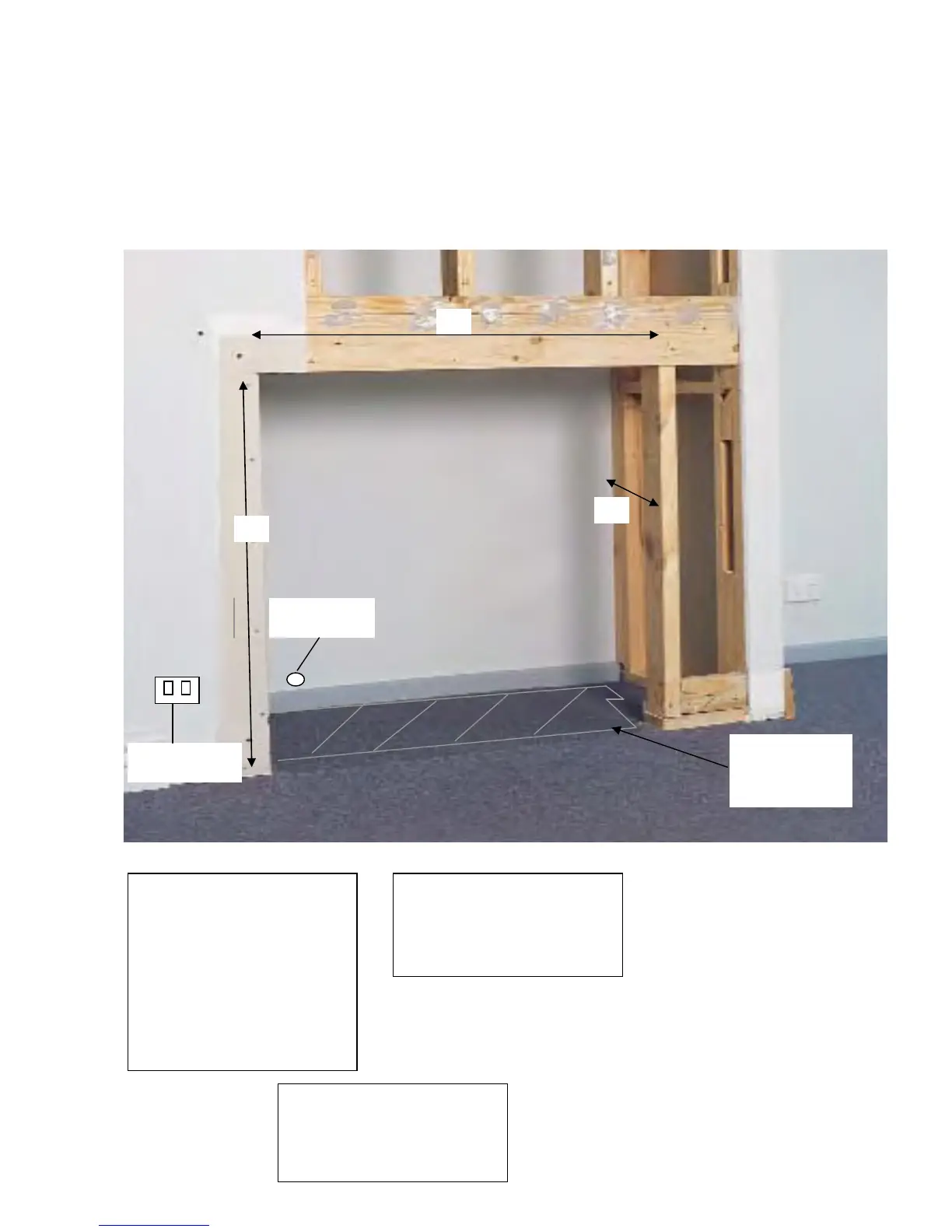

INBUILT INSTALL INTO A STUD WALL CAVITY
Framing Specifications
Clearview & Barossa
Gas Supply
Power Point
Cement Sheet
for floor
installation
C
A
B
Clearview
Front Opening
A) 1000mm
B) 245mm (inc. plaster)
C) 900mm ** See below
Rear Opening
A) 1125mm
B) 245mm
C) 900mm ** See below
Barossa
A) 1000mm
B) 400mm (inc. plaster)
C) 900mm ** See below
* Gas Inlet to be ½” Fem BSP
* Power Outlet left hand side
* 6mm Cement Sheet required
for Floor Installation.
* 25mm timber support for Wall
Installation
** C)
Do not
plaster lower
than 750mm & no higher
than 755mm. This is to
allow for removal of heater
for servicing
