Cooper F6-PA-LS - Accessories Overview; Sectionalizing and Outlet Accessories; Interface and Cabinet Accessories

These accessories are available. Contact your Cooper
Power Systems representative for additional information.
Loop Sectionalizing Accessories
Various wiring options for 120 VAC low voltage closing
reclosers or control-powered NOVA reclosers, 120 VAC
single or three-phase sensing are available. Refer to Table
8 for ordering options.
120 VAC GFI Duplex Outlet
The GFI Duplex Outlet (Catalog Number KME6-1776-2) is
available for controls powered by 120 VAC three-wire sup-
ply power. This convenience outlet is rated for 15 Amperes
and is accessible through the front door in the control
cabinet. The 120 VAC GFI Duplex Outlet is used for many
applications such as power for the MET Tester, auxiliary
measurement equipment, and supplemental lighting.
Discrete Interface Board (DIF)
Option Accessory
A Discrete Interface Board Option accessory provides
eight configurable input control contacts and eight configu-
rable output status contacts (Figure 24). The ordering
options include: Standard (3 inputs / 5 outputs) or
Additional (8inputs/8outputs).
Cabinet Ordering Accessories
• AISI 304 stainless steel cabinet construction
• Three-point door latch
Cable Locking Sleeves
To prevent detachment of the control cable from the con-
trol cabinet by unauthorized personnel, a cable-locking
sleeve is available to enclose the cable plug. The plug is
passed through the sleeve and the sleeve is then fastened
from inside the control cabinet. There is no access to the
cable receptacle without opening the locked cabinet door
and detaching the sleeve.
Catalog Number KME6-1772-1: Quantity 1
Catalog Number KME6-1772-2: Quantity 2
S280-70-10
33
ACCESSORIES
Description Catalog Number
Wiring Options for 120 VAC Low-Voltage Closing Reclosers, 120 VAC Single- or Three-Phase Sensing
Junction box equipped with Source 1 and Source 2 sensing cables. (4-conductor, 5 ft. length) includes
hardwiring the low-voltage closing cable for the recloser (KA11ME1-X) and hardwiring the sensing/low
voltage cable for the control (KA145LS-X) ......................................................KA235LS1*
Input-sensing/low voltage cable, 8 conductor, 120 VAC (basic cable, no length) .........................KA145LS
Replace “X” with desired length. Select from 5 to 80 feet. ........................................KA145LS-X
120 VAC/240 VAC Input receptacle, 8-pin ......................................................KME6-805-1
Wiring Options for Control-Powered NOVA recloser, 120 VAC Single- or Three-Phase Sensing
Junction box equipped with Source 1 and Source 2 sensing cables. (4-conductor, 5 ft. length) includes
hardwiring the sensing/low voltage cable for the control (KA145LS-X) .................................KA235LS1**
Input-sensing/low voltage cable, 8 conductor, 120 VAC (basic cable, no length) .........................KA145LS
Replace “X” with desired length. Select from 5 to 80 feet. ........................................KA145LS-X
120 VAC/240 VAC Input receptacle, 8-pin ......................................................KME6-805-1
TABLE 8
Loop Sectionalizing Accessories
*Requires KA11ME1-X cable, ordered with recloser. KA145LS-X cable and the KME6-805-1 receptacle are to be ordered separately.
**KA145LS-5X cable and the KME6-805-1 receptacle are to be ordered separately.
TB1
1
2
3 57911 13 15 17 19
46 81012141618
CI1
CI2 CI3 SS1 CO1
CO2CO3
CO4
CI4
CI1 CI2 CI3 SS1 CO1 CO2CO3 CO4
TB3
1
3
579111315171921
CI5 CI6 CI7 CI8 CI9 CI10 CI11 CO5CO6
TB4
2
46 81012141618
20
CI4 CI5 CI6 CI7 CI8 CI9 CI10 CI11 CO5
CO6
13
5
7911 13
CO7CO8
CO9CO10CO11
CO12
2
46 81012
CO7CO8 CO9CO10CO11CO12
J1-RS-232
IRIG-B
RS-485
RS-232 DTE
TB9
+
–
28 VDC
WHETTING VOLTAGE
P1
P2
P3
P4
VOLTAGE SENSING
53VDC CONTROL CABLE 28 VAC
1
2
3
45
1
2
3
45
23
22
21
20
19
11
10
9
87
18
17
16
15
14
6
5
4
32
13
1
24
12
1
2
3
4
5
3
1
3
1
3
4
2
4
24
1
2
C + –

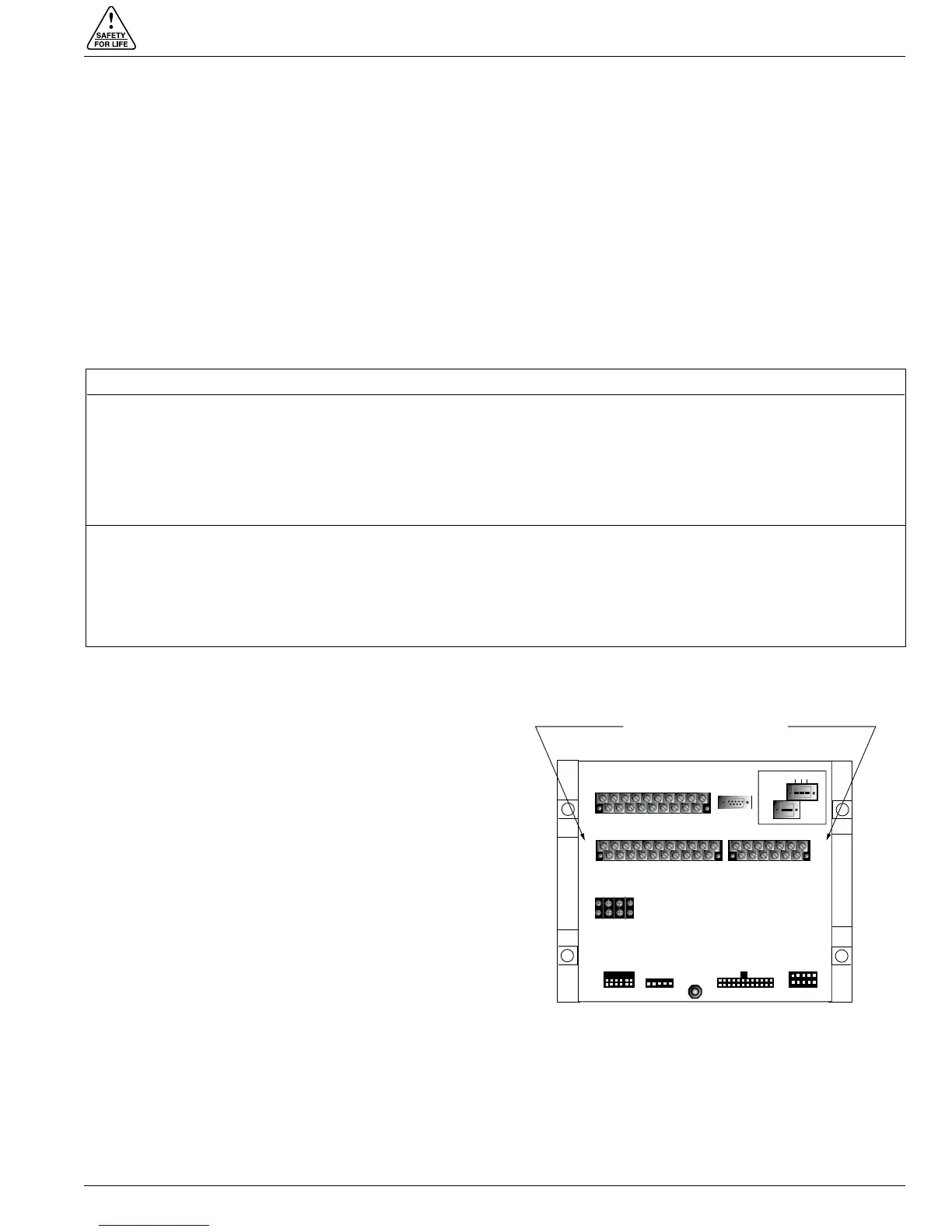

DIF Board Accessory
Figure 24.
Form 6-LS control discrete interface board
accessory.
