2KJ/2KH
2-1-15
2-1-7 Eject and switchback sections
The eject and switchback sections eject paper on which fuser has ended with the eject roller that is rotated by forward
rotation of the eject motor.
In duplex copying, paper is turned over by reverse rotation of the eject motor.
.

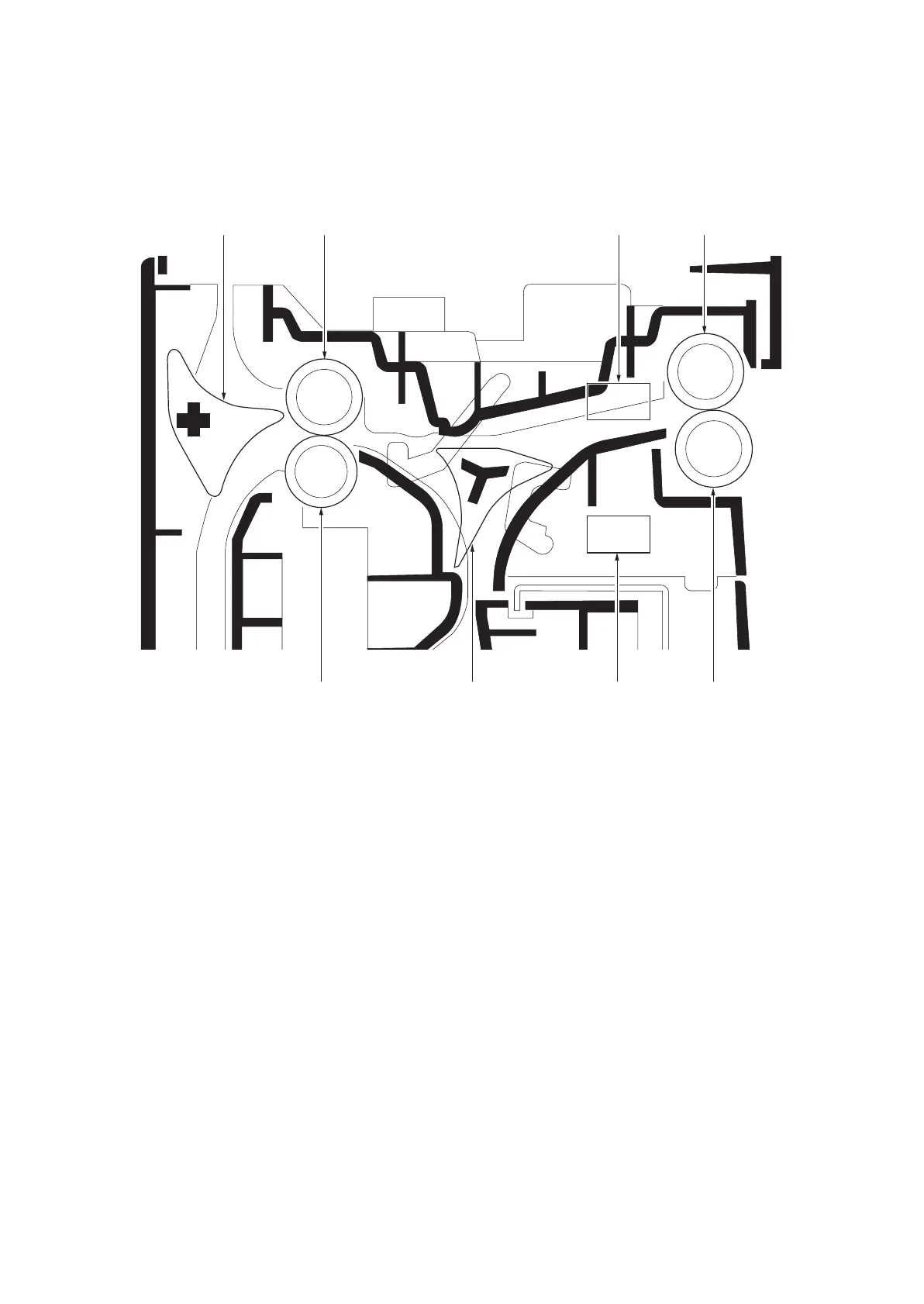

Figure 2-1-16 Eject and switchback sections
5 1 7 3
8
46 2
(1) Feedshift guide
(2) Eject roller
(3) Eject pulley
(4) Switchback roller
(5) Switchback pulley
(6) Feedshift guide
(7) Eject switch (ESW)
(8) Feedshift switch (FSSW)
