DESCRIPTION
OF THE MOBILE
CONTROL UNIT
CONTROLS

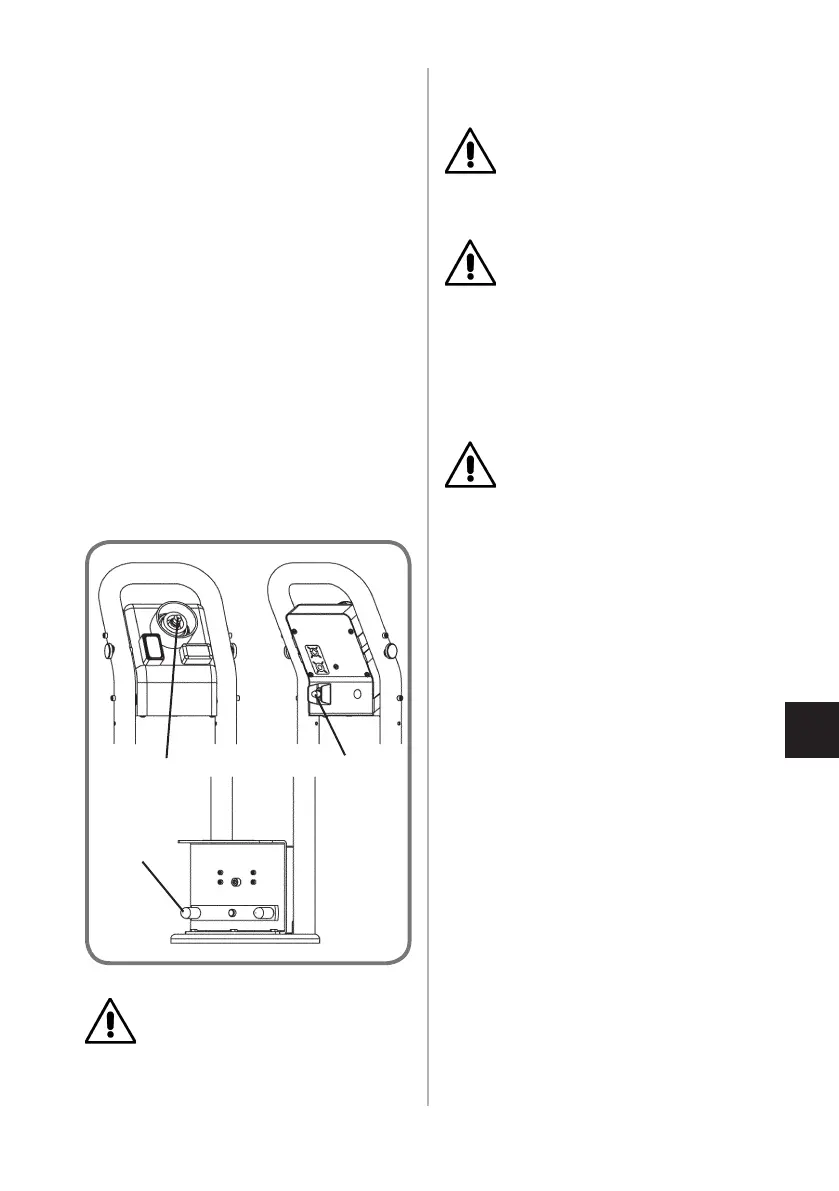

Fig. 10
CONTROL LEVER (P)
- Horizontal movement → platform and tool
carriage translation
- Vertical movement → turntable unit lowering
and lifting
SWITCH (Q)
- Vertical movement → turntable unit opening
and closing control.
PEDAL (R)
- Tilting movement → clockwise and anticlock-
wise rotation of the turntable unit
CAUTION
When locking a rim, continue to operate
the control to make sure that the maximum
pressure (130 bar) has been reached, which
can be checked on the pressure gauge (C,
Fig. 9).
CAUTION
The distributor-turntable pressure tests are
performed with the wheel mounted.
CAUTION
When working, always control the pressure of
the turntable
NOTE
Also check the pressure during tyre mounting
and demounting operations; to solve rim set-
tling problems, continue to operate the locking
control.
CAUTION
The control unit must never be positioned in
an area where water can stagnate.
