- EnglIsh- Operator's manual HD 700 49
UK

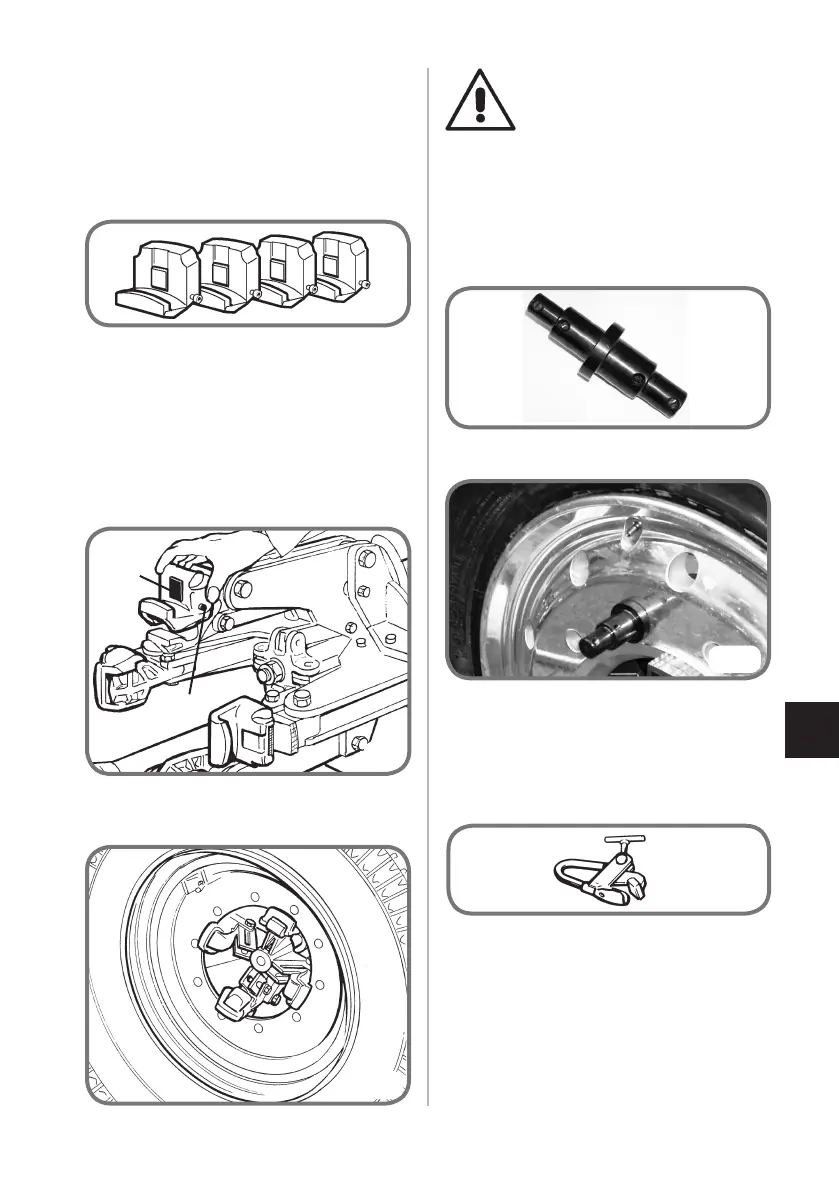

CLAMPING ALLOY RIMS
To clamp wheels with a light alloy rim, a set of
alloy rim clamps (Fig. 14) that were spe-
cially designed in order to work on these rims
without the risk of damaging them is available
upon request.
The clamps are to be inserted (bayonet-like
mounting) into the clamp support of the turn-
table as shown in figure 15.
Lock the clamp by manually tightening the screw
A, Fig. 15.
The clamps are supplied with three different
types of plastic inserts (B, Fig. 15), which are
used based on the thickness of the rim flange.
Lock the rim as shown in fig. 16.
14
A
15
B
CAUTION
The turntable may "slip" during the vari-
ous operating phases when the rims are
clamped on the central hole (especially
with alloy wheels where the specific
clamps are used).
By using the STOP PIN accessory (Fig. 17A) this
problem can be averted, inserting it in one of
the wheel fixing holes (see Fig. 17B).
As the pin turns it rests against the clamp, pulling
the rim with it and preventing it from slipping.
To work on wheels with light alloy rims, a
gripper for alloy rims (see Fig. 18) is
available.
16
18
17A
17B
