Appendix E—Parts Details for Rotor, Blade, Sideplate, and Cam

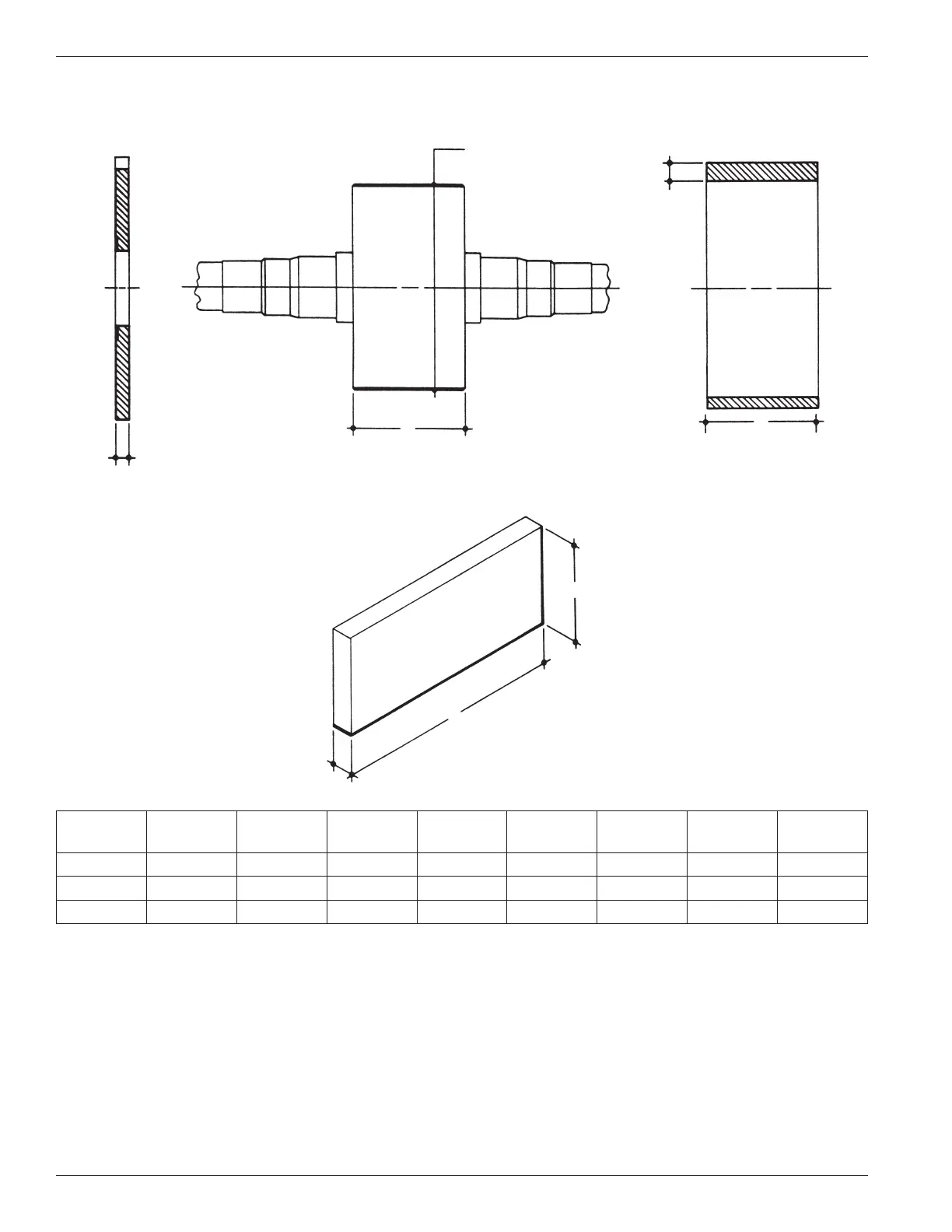

New Part Interface Dimensions
Model
A
(min)
B
(max)
C
(max)
D
(max)
E
(min)
F
(max)
G
(max)
H
(nominal)
500 0.373 2.992 5.449 0.750 3.000 2.994 0.230 1.323
1000 0.435 3.993 6.249 1.123 4.002 3.997 0.230 1.500
1500 0.435 6.243 6.125 1.184 6.253 6.229 0.549 1.635
C
B
A
Sideplate
Rotor and shaft
F
G
Blade
D
E
Cam
34
