All dimensions are in inches (millimeters).
Appendix D—Outline Dimensions
5/8
(16)
5
(127)
23-7/8 (607)
42 (1,067)
15-3/4 (400)
1-1/4
(32)
9-11/16 (246 )
3-7/8
(98)
6-3/4
(171)
18-3/16
(462)
3 (76)
4 (102)
12 (305)
1-1/2
(38)
15 (381)
5-5/16
(135)
3-9/16
(91)
33
(838)
Overall to
optional
relief valve
30-13/16
(782)
Overall
Liquid drain
1/4" NPT
Inlet / Outlet
4-way valve
1" NPT
Strainer
Suction
Pressure
Gauge
Discharge
Pressure
Gauge

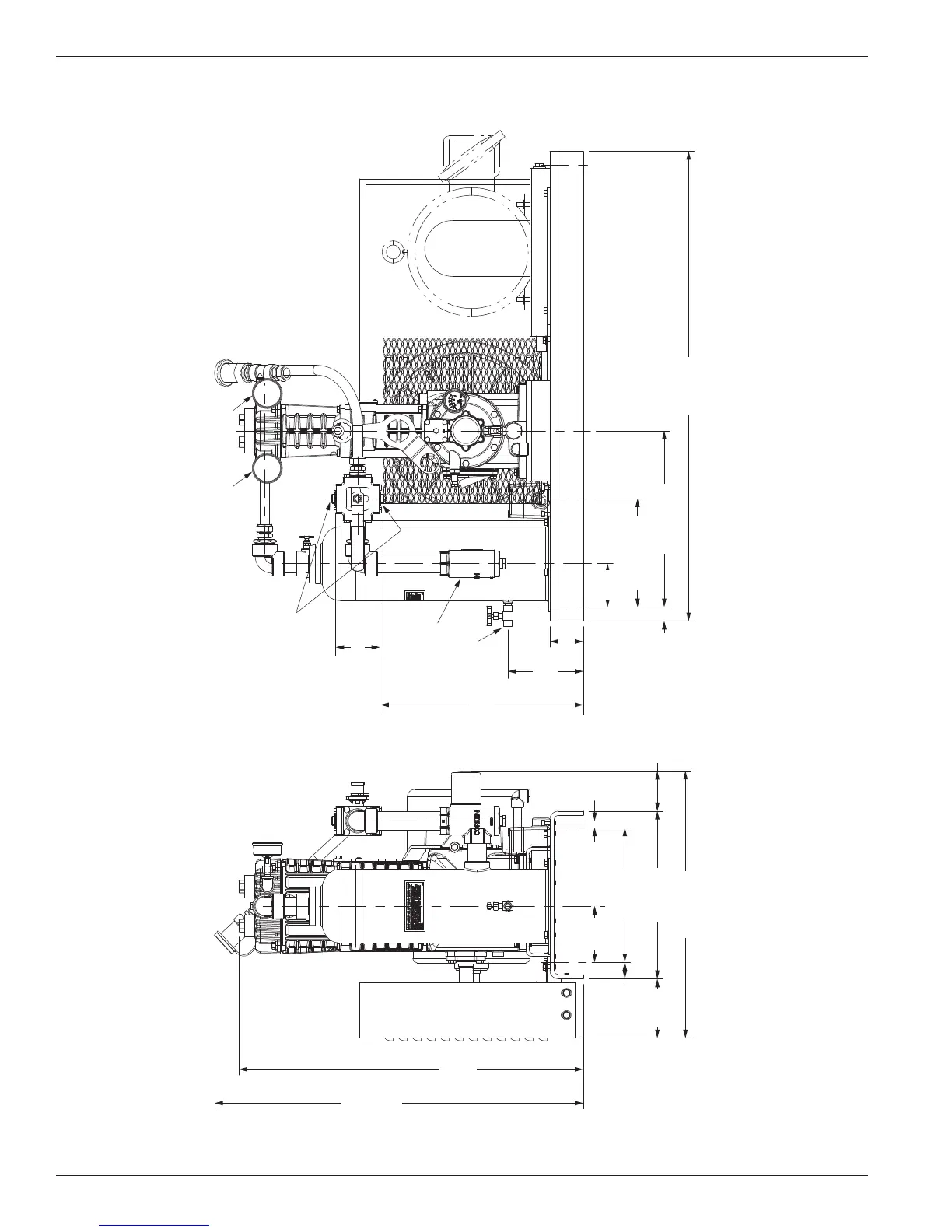

Model 291 with 107 Mounting (Motor Frames Up to 215T)
