1.2 PLATE INSERTION WITH AUTOMATIC UNIVERSAL
CONNECTION (ML)
Your ML machine is equipped with a plate with a universal automatic connection that
allows connection of the accessories extremely rapidly. In fact, by following a few simple
steps it is possible to replace the bucket fitted to the Mini Loader with other accessories.

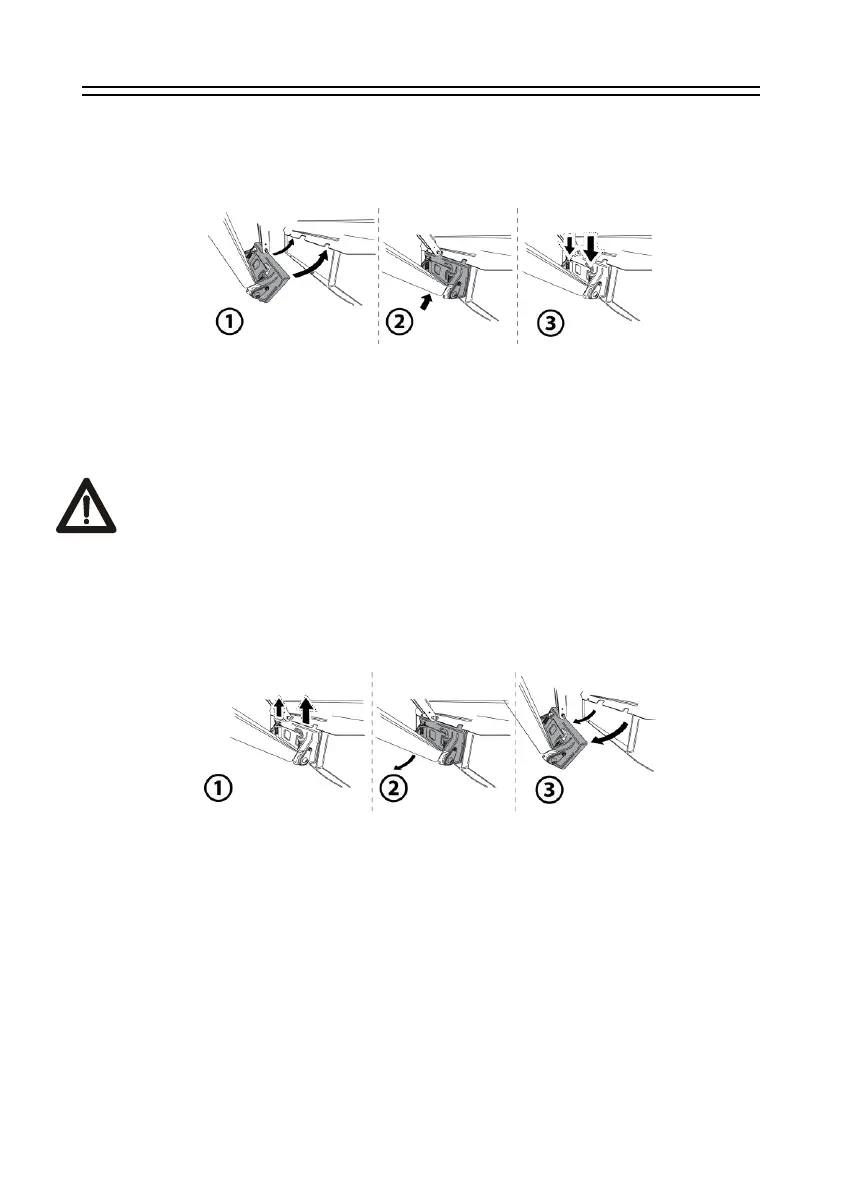

Fig. 12 - Use of the rotating bucket
Follow the steps below to insert the accessories:
• lower the arm and bring it closer to the accessory;
• slowly insert the plate first into the upper part of the accessory housing;
• raise the arm slowly making sure that the spring pins enter the appropriate holes in the
accessory; if necessary rotate the plate a few degrees using the lever.
ATTENTION: Before using the accessory mounted on the plate, check that it is well
connected and that all the fastening systems have been in perfect working order and
that in no way can they be disconnected except with the disengagement procedure
described below.
1.3 PLATE DISENGAGEMENT WITH AUTOMATIC UNIVERSAL CONNECTION
(ML)
The disconnection of each accessory can be performed just as quickly. In fact, by
following a few simple steps it is possible to remove everything fitted on the Mini
Loader.
Fig. 12 - Use of the rotating bucket
• Follow the steps below to disconnect the accessories:
• lower the arm until it touches the ground
• check that the accessory, still connected to the plate, is in a stable position and that once
disconnected it does not pose a risk
• Pull the spring pins upwards by turning them "1" so that they are outside the lower
housing of the accessory.
• turn the bucket a few degrees forward, moving back a little at a time very slowly until the
plate has completely come out of the housing on the accessory
