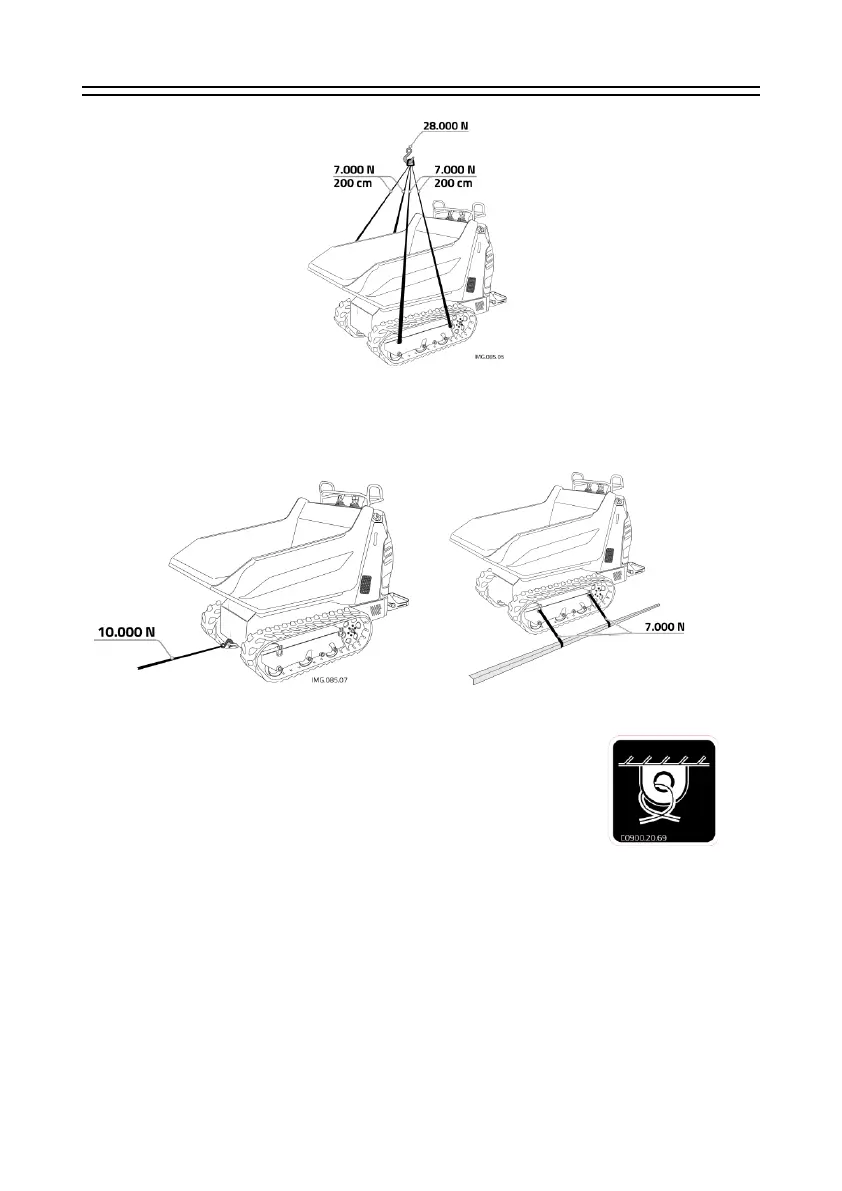

fig. 27 – Anchoring points to lift the machine
• Stick firmly to the floor of the means of transport through the chain approved
Cormidi (Cod. C0260.00.3) purchased from authorized dealers Cormidi),
con- necting more with the points set as in Figure 29.
Fig.28 - Anchoring points for towing
fig. 29- Anchoring points for transport
TOWING
The machine is equipped with tow hooks, located at the front
of the undercarriage(see fig. 28); if you need to tow the ma-
chine, to take care of emptying the body.
Each anchor point for the towing is evidenced by a label with
the symbol shown in figure 30 and can withstand a pull of
10.000N (1.000kg approx).
fig. 30 – Anchoring
point for towing
