IntelliCarb Drop-In Ice Cooled Installation Guide
© 2003-2017, Cornelius Inc. - 9 - Publication Number: 630460204INS
INSTALLATION PROCEDURE
Back Room Package
Tubing
Run bundled tubing from back room to dispenser location.
NOTE: Tubing, hoses, and cabling can come from underneath or in back of the unit.
Water
1. Install water filter system between booster pump and water pressure regulator.
NOTE: Recommended shut off valve be installed on outlet side of filter system.
2. Run water line from source to inlet connection on booster pump.
3. Connect water line from booster pump outlet to water filter system inlet.

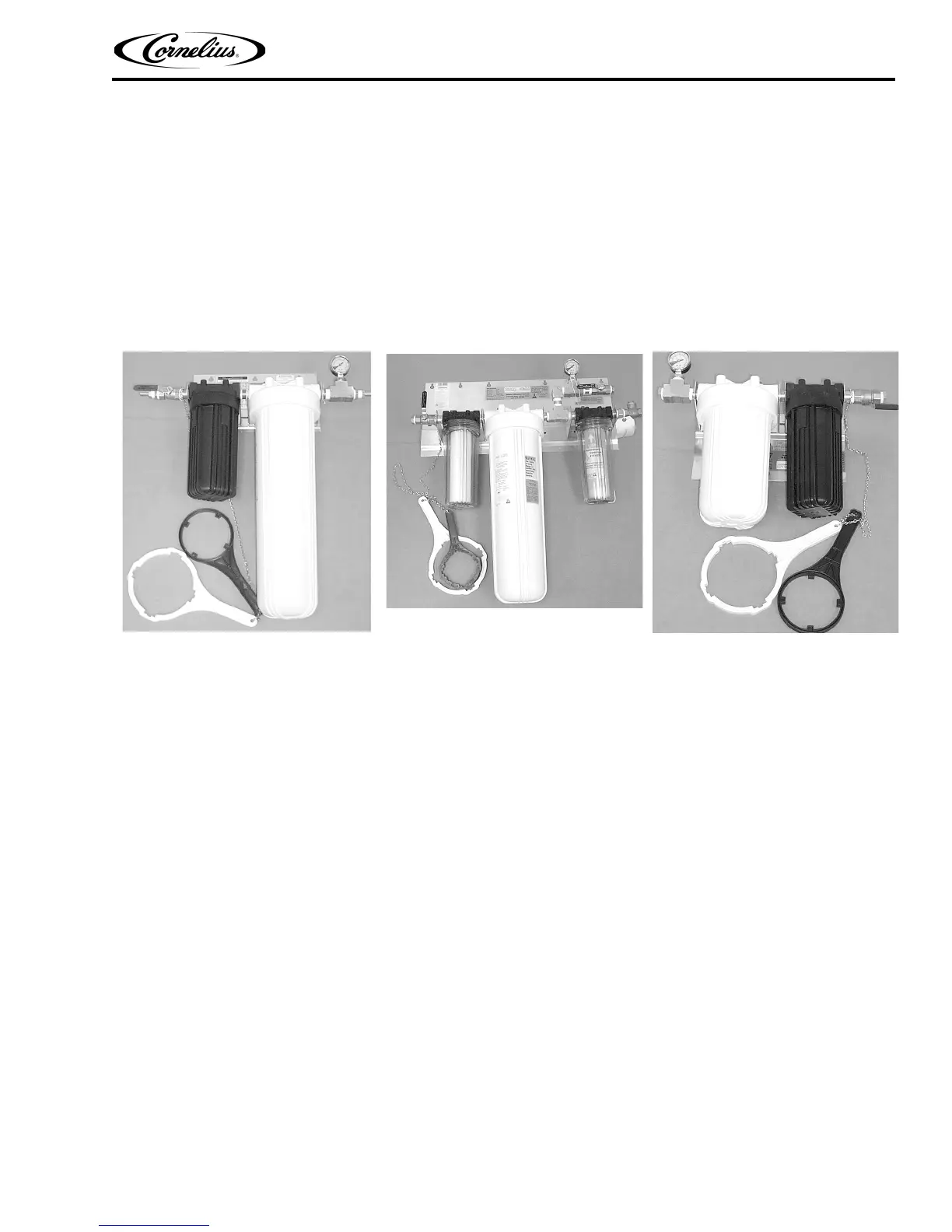

Figure 3. Pre filter (P/N 605620) Figure 4.Main Filter (P/N 605625ST) Figure 5. Polyphosphate feeder (Ice
maker)
