There are four varieties of UF-1 and UFB-1 valves:
• The cup activated valve dispenses b
y means of a lever engaged by the cup.
• A push button valve has a press and hol
d button on the front cover of the valve.
• The Optifill
TM
valve dispenses with an activation lever but stops after liquid fills the cup and touches the lever.
• A portion control valve has four programmable drink size buttons
that provide timed deliveries, top off, and a
manual dispensing button.

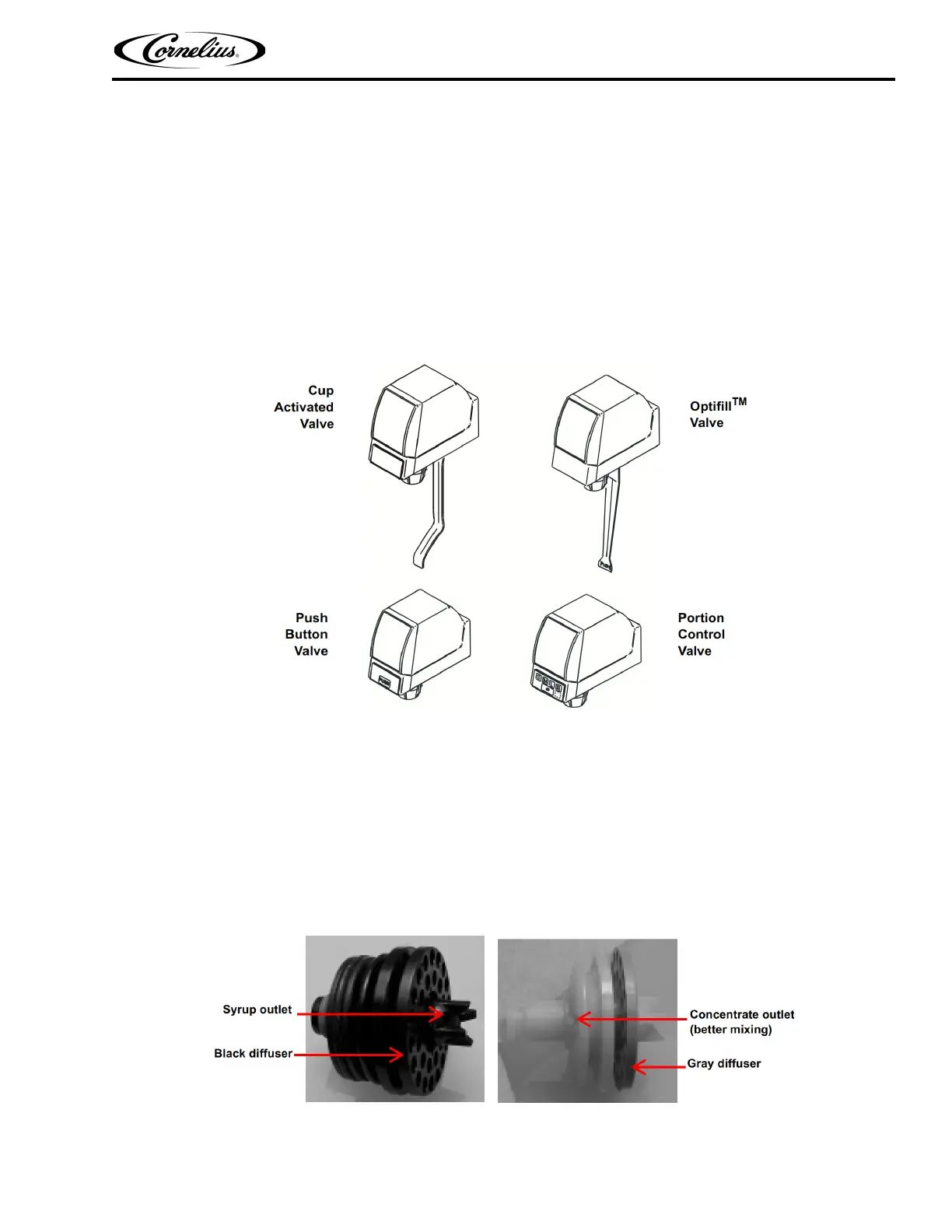

Figure 1
The UF-1 and UFB-1 valves are the same as described above with minor differences for juice applications. In the
UF-1 and UFB-1 valve concentrate enters the nozzle assembly higher providing a better mix of concentrate and
water in the cup. In addition, the orifices for concentrate are larger to avoid clogging. The concentrate diffuser is
gray allowing for easy identification.
Note: The beverage (syrup) diffuser must be installed to use a diversion tube to ratio the concentrate valve
Note: Con
centrate valves have only one hole in their sleeve and are only offered in fast flow capacities
of 1.5 to 3.0 oz./sec.
Figure 2
